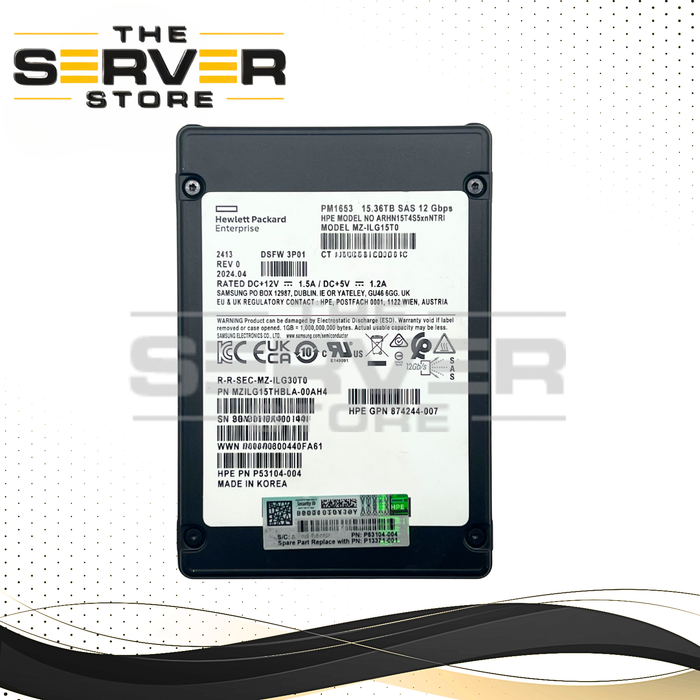

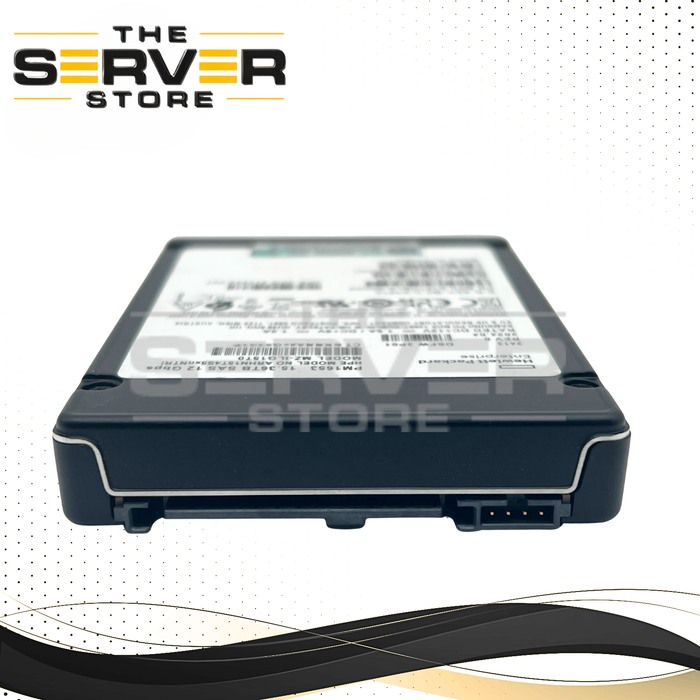

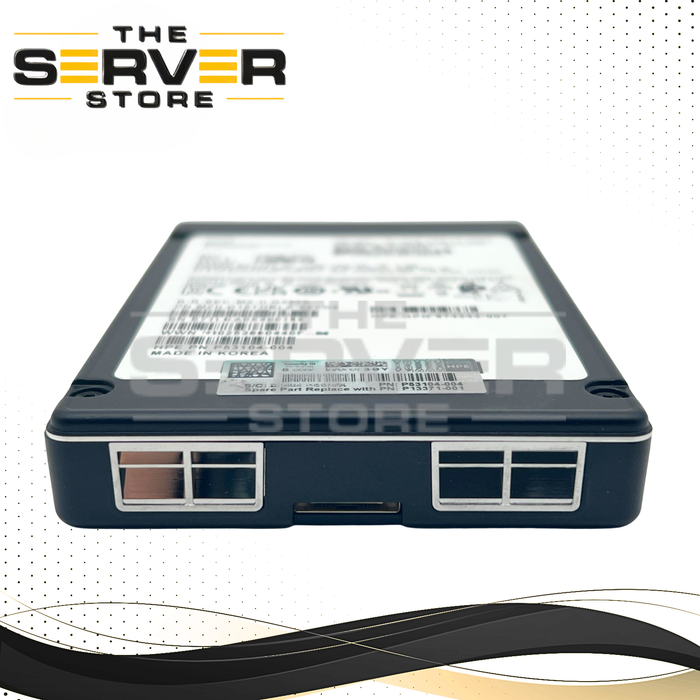

HPE 15.36TB SAS 24G RI SFF 2.5" SED (512e) 15mm SSD Samsung PM1653 Series MZ-ILG15T0 P53104-004
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | P53104-004 |
| Manufacturer | HPE / Samsung |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drive (SSD) |
| Model | Samsung PM1653 Series MZ-ILG15T0 |
| Form Factor | SFF 2.5" SSD (Format 512e) (tray Not Included) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
HPE 15.36TB SAS 24G RI SFF 2.5" SED (512e) 15mm SSD Samsung PM1653 Series MZ-ILG15T0 P53104-004
Related Part Numbers:
P53104-004, MZ-ILG15T0, MZILG1515THBLA-00AH4, MZILG1515THBLA, 874244-007, ARHN15T4S5xnNTRI
Product Overview
The HPE 15.36TB Read Intensive (RI) SAS 24G SFF SSD is powered by the Samsung PM1653 Series enterprise platform and is formatted to 512e (512-byte emulation), providing compatibility with standard operating systems, RAID controllers, and enterprise server environments.
This next-generation SAS SSD delivers significant performance improvements over previous SAS 12G solutions while maintaining enterprise-class endurance, reliability, and security.
Core Identity & Part Numbers
- HPE Option Kit: P53104-004
- Samsung Base Model: MZ-ILG15T0
- Samsung OEM Model: MZILG1515THBLA
- Samsung Firmware/OEM Extension: MZILG1515THBLA-00AH4
- Regulatory Model: ARHN15T4S5xnNTRI
- Additional Part Number: 874244-007
- Compatible Part Number: P13371-001
Physical Specifications
- Form Factor: 2.5-inch Small Form Factor (SFF)
- Drive Height: 15mm
- Drive Width: 70mm
- Interface: Dual-Port SAS 24Gb/s (SAS-4)
- Backward Compatibility: SAS 12Gb/s and SAS 6Gb/s
- Flash Technology: Samsung 128-Layer V-NAND TLC
Capacity & Sector Format
- Formatted Capacity: 15.36TB
- Sector Format: 512e (512-byte Emulation)
- Native Media: 4Kn Physical Sectors
Because the drive is formatted to 512e, it presents standard 512-byte logical sectors to the host operating system, ensuring compatibility with legacy and modern enterprise environments.
Performance Specifications
- Sequential Read: Up to 4,200 MB/s
- Sequential Write: Up to 3,700 MB/s
- Random Read (4KB): Up to 800,000 IOPS
- Random Write (4KB): Up to 140,000 IOPS
Maximum performance requires a SAS 24Gb/s-capable controller and backplane.
Endurance & Reliability
- Workload Type: Read Intensive (RI)
- Endurance Rating: 1 DWPD (Drive Write Per Day)
- Total Bytes Written (TBW): ~28,032 TB
- MTBF: 2,500,000 Hours
- UBER: 1 Sector per 10¹⁷ Bits Read
- Power Loss Protection (PLP): Yes
- End-to-End Data Path Protection: Yes
Security Features
SED (Self-Encrypting Drive)
The Samsung PM1653 hardware includes integrated enterprise-class security features:
- AES 256-bit Hardware Encryption
- TCG Enterprise Security Compliance
- TCG Opal Support
- Instant Cryptographic Erase
- Zero Performance Impact Encryption
- Data-at-Rest Protection
The drive automatically encrypts all stored data using a hardware encryption engine embedded in the controller.
Power & Environmental
- Operating Power Consumption: Approximately 11W–14W
- Idle Power Consumption: Approximately 5W
- Operating Temperature Range: 0°C to 70°C
Compatibility Notes
This SSD is delivered in 512e format, not 520-byte sectors.
It is suitable for:
- HPE ProLiant Servers
- Windows Server
- Linux Distributions
- VMware ESXi
- Broadcom / LSI SAS Controllers
- HPE Smart Array Controllers
No additional sector conversion is required for standard server deployments.
Part Numbers Covered
P53104-004 | MZ-ILG15T0 | MZILG1515THBLA-00AH4 | MZILG1515THBLA | 874244-007 | ARHN15T4S5xnNTRI
