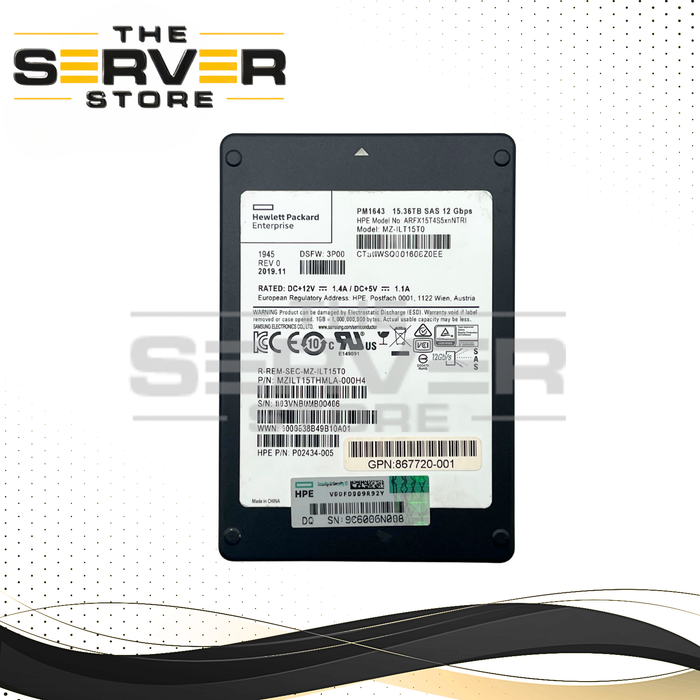

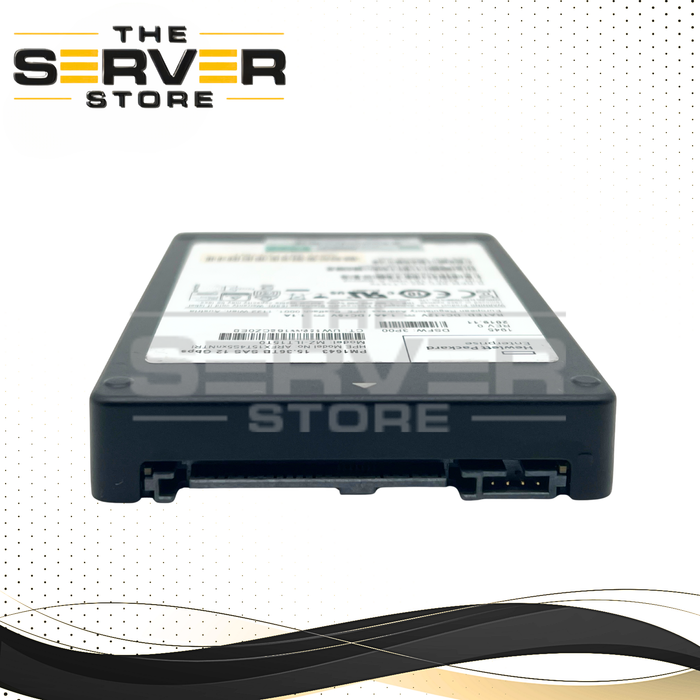

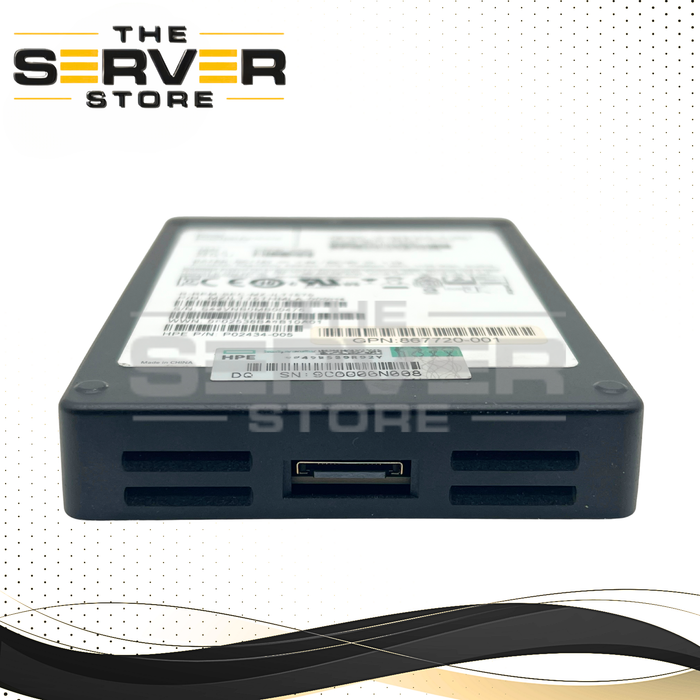

HPE 15.36TB SAS 12G RI SFF 2.5" SED (512e) 15mm SSD Samsung PM1643 Series MZ-ILT15T0 P02434-005
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | P02434-005 |
| Manufacturer | HPE / Samsung |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drive (SSD) |
| Model | Samsung PM1643 Series MZ-ILT15T0 |
| Form Factor | SFF 2.5" SSD (Format 512e). (Tray Not Included). |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
HPE 15.36TB SAS 12G RI SFF 2.5" SED (512e) SSD Samsung PM1643 Series MZILT15THMLA MZ-ILT15T0 P02434-005
Related Part Numbers:
P02434-005, 867720-001, MZILT15THMLA-000H4, MZILT15THMLA, MZ-ILT15T0, ARFX15T4SxnNTRI
Product Specifications
The HPE 15.36TB Read Intensive (RI) SAS 12G SFF SSD is based on the enterprise-class Samsung PM1643 Series platform and has been formatted to 512e (512-byte emulation) for broad compatibility with standard servers, operating systems, and RAID controllers.
Key Features
- Capacity: 15.36TB
- Form Factor: 2.5" Small Form Factor (SFF)
- Interface: Dual-Port SAS 12Gb/s
- Sector Format: 512e (512-byte Emulation)
- Workload Type: Read Intensive (RI)
- Security: SED (Self-Encrypting Drive)
- Flash Technology: Samsung V-NAND 3D TLC
- Enterprise Power Loss Protection (PLP)
Performance
- Sequential Read: Up to 2,100 MB/s
- Sequential Write: Up to 1,800 MB/s
- Random Read (4KB): Up to 400,000 IOPS
- Random Write (4KB): Up to 60,000 IOPS
Endurance & Reliability
- Endurance Rating: 1 DWPD
- Total Bytes Written (TBW): 15,360 TB
- MTBF: 2 Million Hours
- UBER: 1 sector per 10¹⁷ bits read
Physical Specifications
- Form Factor: 2.5-inch SFF
- Height: 15mm
- Width: 70mm
Power & Environmental
- Operating Power: 11W–13.5W
- Idle Power: ~5W
- Operating Temperature: 0°C to 70°C
Security Features
This drive is built on Samsung PM1643 SED (Self-Encrypting Drive) hardware and includes:
- AES 256-bit hardware encryption
- TCG Enterprise security support
- Instant cryptographic erase capabilities
- Enterprise-grade data-at-rest protection
Important Note
This SSD is formatted to 512e, not 520-byte sectors. It is ready for deployment in standard enterprise server environments, including HPE ProLiant servers, Windows Server, Linux, VMware ESXi, and compatible SAS RAID controllers.
Part Numbers: P02434-005 | 867720-001 | MZILT15THMLA-000H4 | MZILT15THMLA | MZ-ILT15T0 | ARFX15T4SxnNTRI.
