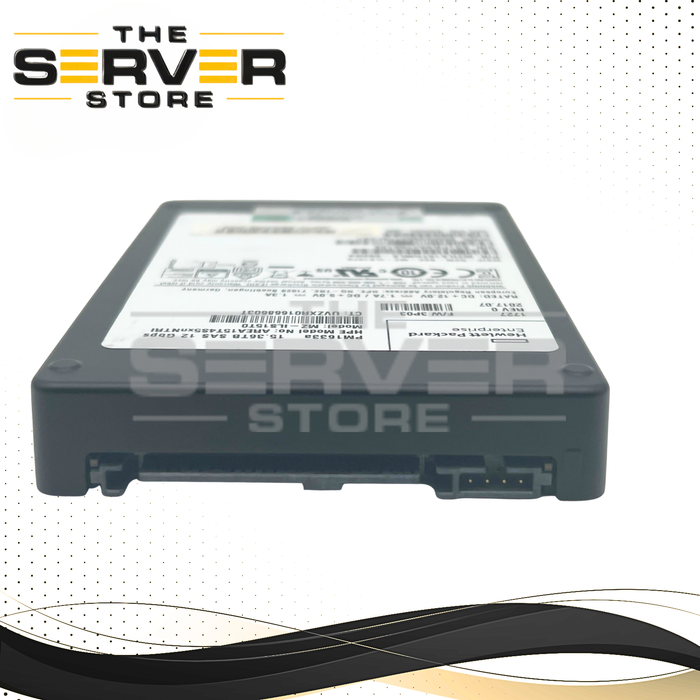

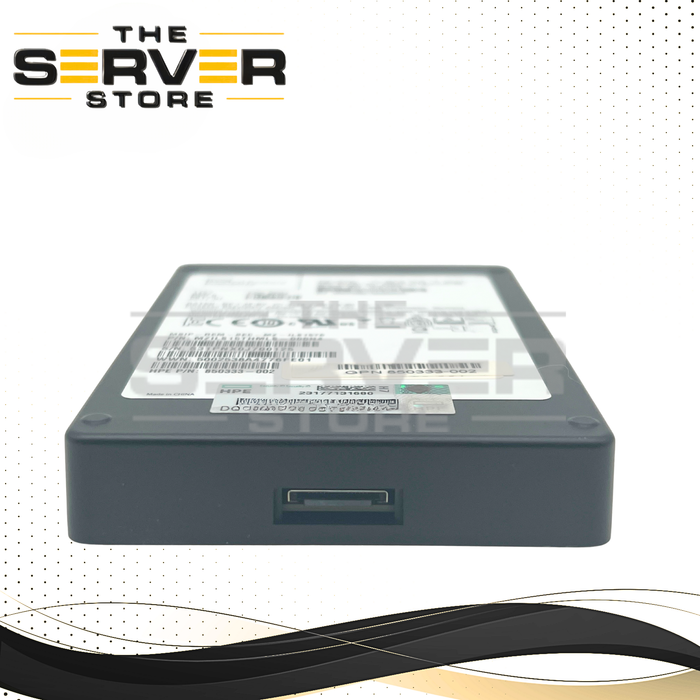

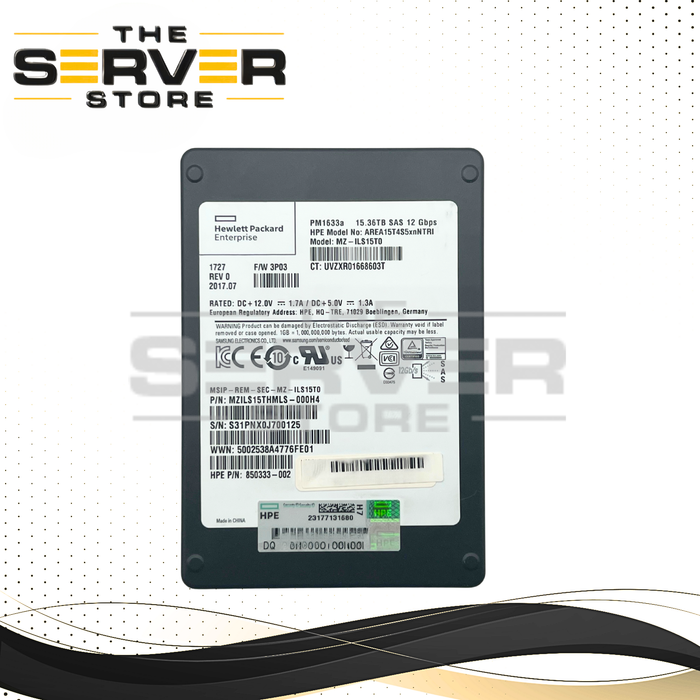

HPE 15.36TB SAS 12G RI SFF 2.5" 15mm SSD Samsung PM1633a Series MZ-ILS15T0 850333-002
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
HPE 15.36TB SAS 12G RI SFF 2.5" 15mm SSD Samsung PM1633a Series MZ-ILS15T0 850333-002
Compatible Part Numbers
- HPE 850333-002
- Samsung MZ-ILS15T0
- Samsung MZILS15THMLS-000H4
- AREA15T4S5xnNTRI
Product Overview
The HPE 15.36TB SAS 12G Read Intensive (RI) Solid State Drive, based on the Samsung PM1633a Series, is a high-capacity enterprise SSD engineered for data centers, virtualization platforms, cloud infrastructure, database applications, and large-scale storage environments. Featuring a 12Gb/s dual-port SAS interface and advanced Samsung 3D V-NAND TLC technology, this drive delivers exceptional performance, reliability, and storage density for mission-critical workloads.
With an impressive 15.36TB capacity in a compact 2.5-inch Small Form Factor (SFF) design, the PM1633a helps maximize storage efficiency while reducing rack space, power consumption, and cooling requirements compared to traditional hard drives.
Designed for read-intensive enterprise applications, this SSD provides high-speed data access with up to 1,250 MB/s sequential read/write performance and up to 200,000 random read IOPS, making it ideal for virtualization, analytics, content repositories, cloud services, and business-critical databases.
Enterprise-class protection features include Power-Loss Protection (PLP), TCG Enterprise encryption, dual-port SAS connectivity, and a robust 2-million-hour MTBF, ensuring dependable performance in 24/7 operating environments.
Key Features
- 15.36TB Storage Capacity
- 12Gb/s SAS-3 Dual-Port Interface
- Samsung PM1633a Enterprise SSD Series
- HPE Part Number: 850333-002
- Samsung Part Numbers: MZ-ILS15T0, MZILS15THMLS-000H4
- Alternate Part Number: AREA15T4S5xnNTRI
- 2.5" Small Form Factor (SFF)
- 15mm Drive Height
- Samsung 3D V-NAND TLC Flash
- Read Intensive (RI) Enterprise Design
- Up to 1,250 MB/s Sequential Read Speed
- Up to 1,250 MB/s Sequential Write Speed
- Up to 200K Random Read IOPS
- Up to 35K Random Write IOPS
- Power-Loss Protection (PLP)
- TCG Enterprise Encryption
- 1 DWPD Endurance Rating
- 2,000,000 Hour MTBF
Technical Specifications
Manufacturer: Samsung / HPE
Series: PM1633a
Capacity: 15.36TB
Interface: SAS-3 12Gb/s Dual-Port
Form Factor: 2.5" SFF
Drive Height: 15mm
Flash Type: Samsung 3D V-NAND TLC
Sequential Read Speed: Up to 1,250 MB/s
Sequential Write Speed: Up to 1,250 MB/s
Random Read Performance: Up to 200,000 IOPS
Random Write Performance: Up to 35,000 IOPS
Endurance: 1 DWPD
MTBF: 2,000,000 Hours
Encryption: TCG Enterprise
Power Loss Protection: Yes
Active Power Consumption: Approximately 11W
Idle Power Consumption: Approximately 4.5W
Compatibility
Compatible with enterprise servers and storage systems supporting 2.5-inch 15mm SAS SSDs, including:
HPE ProLiant
DL20, DL160, DL180, DL325, DL360, DL380, DL385, DL560, DL580, ML30, ML110, ML350, Apollo Series, Synergy 480, BL460c Gen9
Dell PowerEdge
R230, R240, R330, R340, R430, R440, R530, R540, R630, R640, R650, R730, R730xd, R740, R740xd, R750, R830, R840, R930, R940, T430, T440, T630, T640
Lenovo ThinkSystem
SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, ST550, x3550 M5, x3650 M5
Storage Arrays
HPE MSA 1040, 2040, 2050, 2060, StoreEasy Series, Dell MD1400/MD1420, NetApp DS224C, HGST 2U24
Important Notes
- Requires a SAS controller and SAS backplane; not compatible with SATA-only systems.
- Verify support for 15mm-height drives before installation.
- Some Dell, Lenovo, and OEM servers may require the appropriate drive tray or carrier.
- Supports dual-port SAS functionality for high-availability enterprise environments.
Ideal for virtualization, cloud computing, enterprise databases, software-defined storage, data analytics, backup repositories, and high-capacity data center deployments.
