HP Z640 Workstation Motherboard LGA2011-3 DDR4 761512-601 710325-002 761512-001
Original price
$69.99
-
Original price
$69.99
Original price
$69.99
$94.99
$94.99
-
$94.99
Current price
$94.99
SKU 761512-001
Availability:
Only 4 left!
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 761512-001 |
| Manufacturer | HP |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Workstation and Desktop Motherboards |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

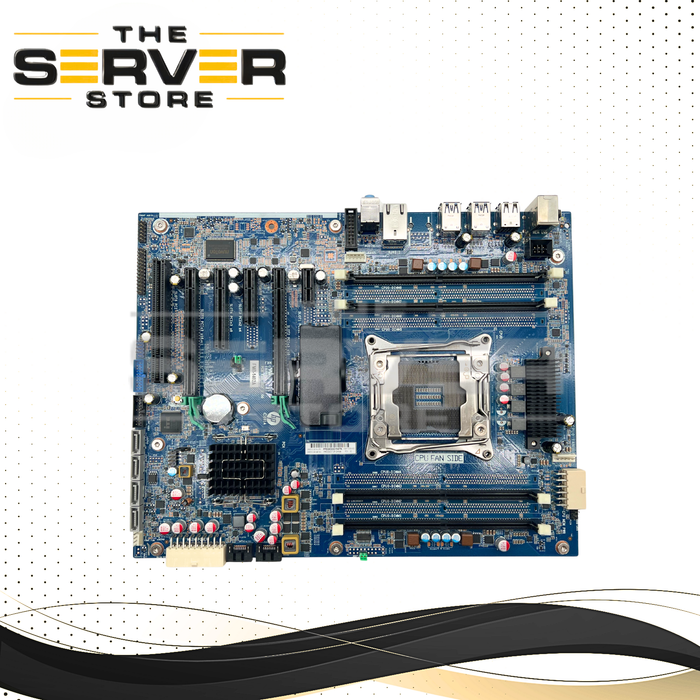

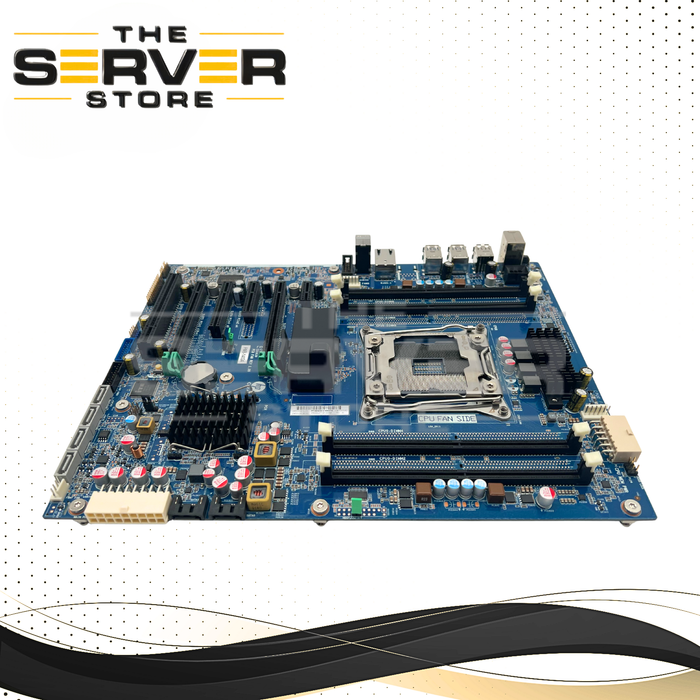

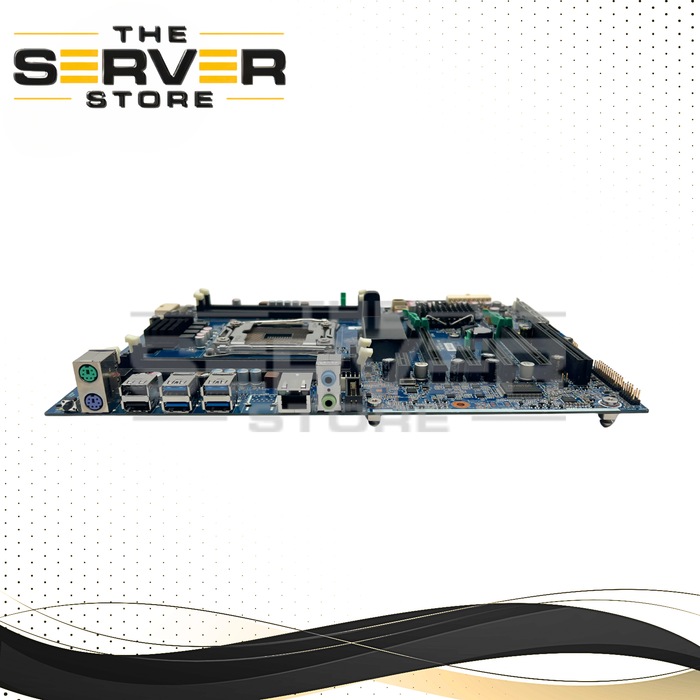

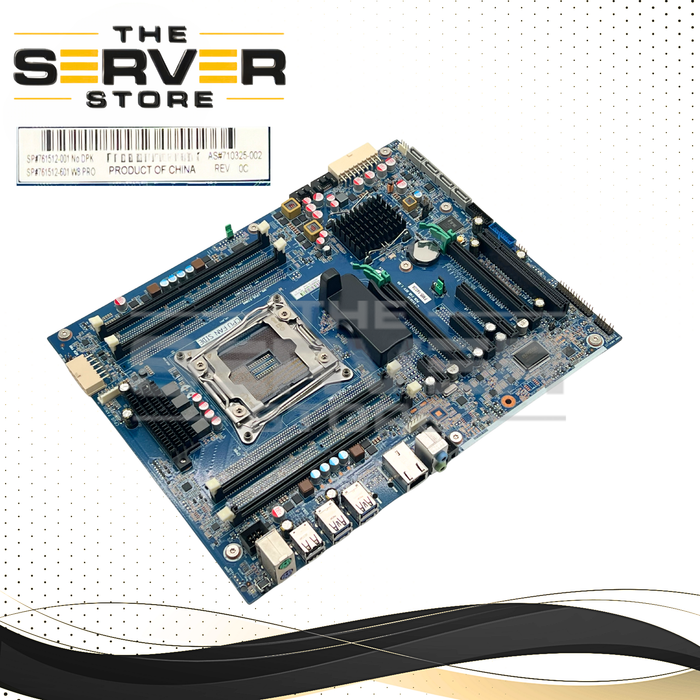

HP Z640 Workstation Motherboard LGA2011-3 Intel C612 DDR4 761512-601 710325-002 761512-001
Upgrade or replace your existing system board with this genuine HP Z640 Workstation Motherboard, designed specifically for the HP Z640 workstation platform. Built around the Intel C612 chipset and LGA2011-3 socket, this motherboard supports Intel Xeon E5 v3/v4 processors, DDR4 ECC memory, and professional workstation-class performance.
Key Features
- Genuine HP Z640 Workstation System Board
- Intel C612 (Wellsburg) Chipset
- LGA2011-3 CPU Socket
- Supports Intel Xeon E5-1600 v3/v4 & E5-2600 v3/v4 Series Processors
- Supports DDR4 ECC Registered (RDIMM) and Load-Reduced (LRDIMM) Memory
- 4 DIMM Slots Onboard (Expandable to 8 DIMMs with Optional CPU Riser)
- Up to 256GB Memory Capacity (with supported LRDIMMs)
- Integrated Intel Gigabit Ethernet
- Multiple PCIe Expansion Slots for Graphics, Storage, and Workstation Applications
- Native SATA 6Gb/s Storage Support with RAID 0/1/10
Specifications
- Manufacturer: HP
- Model: Z640 Workstation Motherboard
- Part Numbers: 761512-001, 761512-601, 710325-001, 710325-002
- Socket Type: LGA2011-3
- Chipset: Intel C612
- Memory Type: DDR4 ECC RDIMM / LRDIMM
- Memory Speeds: 2133 MHz / 2400 MHz
- Maximum Memory Capacity: Up to 256GB
- Network Controller: Intel I218LM Gigabit Ethernet
- Storage Interface: SATA 6Gb/s
- RAID Support: RAID 0, 1, 10
Compatible Processors
Supports Intel Xeon:
- E5-1600 v3 Series
- E5-1600 v4 Series
- E5-2600 v3 Series
- E5-2600 v4 Series
Compatible Model
HP Z640 Workstation
Package Includes
- 1 × HP Z640 Workstation Motherboard
Important Notes
- Designed exclusively for the HP Z640 Workstation.
- Uses proprietary HP power and system connections.
- Not compatible with standard ATX desktop chassis.
- Memory must be DDR4 ECC RDIMM or LRDIMM; standard desktop DDR4 is not supported.
Compatible Part Numbers: 761512-001, 761512-601, 710325-001, 710325-002.
