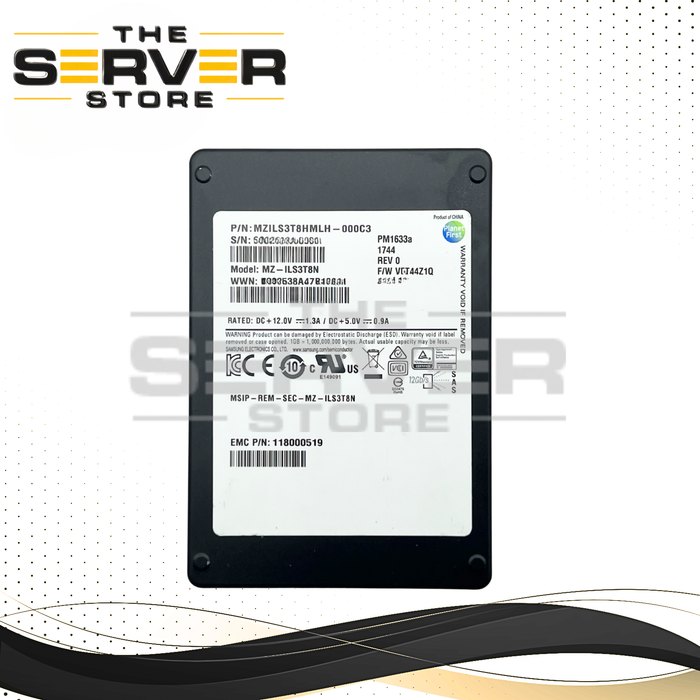

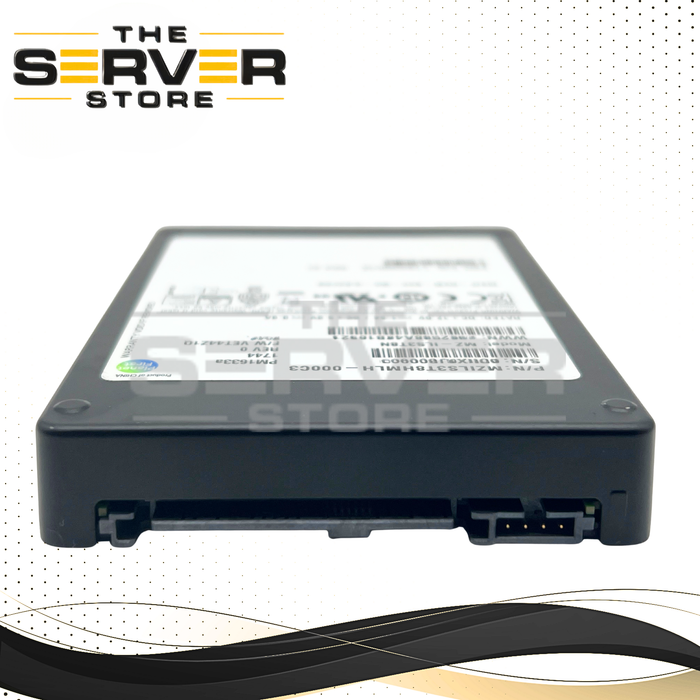

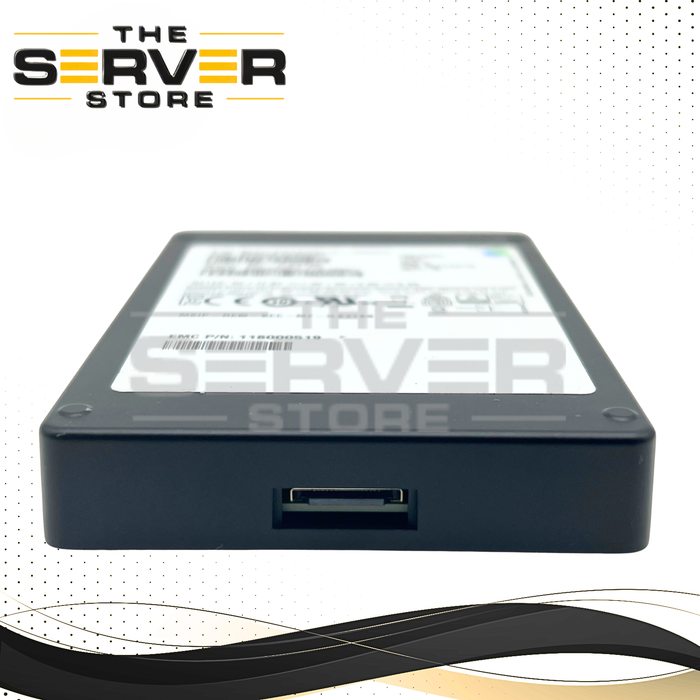

EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD Samsung PM1633a Series MZ-ILS3T8N 118000519

EMC 3.84TB SAS 12G RI SFF 2.5" SSD Samsung PM1633a Series MZ-ILS3T8N 118000519 (Tray Not Included)

Product Description

Upgrade your enterprise storage infrastructure with this EMC 3.84TB SAS 12G Read Intensive (RI) SFF 2.5" SSD, powered by the advanced Samsung PM1633a Series platform. Designed for demanding data center, SAN, NAS, virtualization, cloud, and enterprise storage environments, this SSD delivers excellent reliability, endurance, and consistent performance for read-intensive workloads.

Built with 48-Layer Samsung TLC V-NAND flash technology, the PM1633a generation offers improved efficiency and write performance compared to earlier PM1633 models. The drive features a 12Gb/s Dual-Port SAS interface, enterprise-class endurance, and Power Loss Protection (PLP) technology to safeguard data during unexpected power interruptions.

This EMC-branded SSD is commonly deployed in Dell EMC Unity, Unity XT, VNX, VMAX, PowerMax, PowerVault, and other enterprise storage platforms, while also being compatible with many server platforms that support standard 2.5" SAS SSDs.

Tray/Caddy Not Included.

Key Features

• Capacity: 3.84TB
• Interface: 12Gb/s SAS-3 Dual Port
• Form Factor: 2.5" SFF
• Drive Height: 15mm
• Series: Samsung PM1633a
• Model: MZ-ILS3T8N
• Read Intensive (RI) Enterprise SSD
• 48-Layer Samsung TLC V-NAND Flash
• Enterprise-Class Reliability
• Power Loss Protection (PLP)
• Hot-Swap Compatible in Supported Systems
• MTBF: 2 Million Hours
• 1 DWPD Endurance Rating
• Tray/Caddy: Not Included

Part Numbers

• EMC P/N: 118000519
• Alternate EMC P/N: 005052110
• Samsung Model: MZ-ILS3T8N
• Samsung Base Model: MZILS3T8HMLH
• Samsung P/N: MZILS3T8HMLH-000C3
• Alternate Samsung P/N: MZILS3T8HMLH-000C4
• Series: PM1633a

Performance

• Sequential Read: Up to 1,250 MB/s
• Sequential Write: Up to 1,100 MB/s - 1,250 MB/s
• Random Read: Up to 200,000 IOPS
• Random Write: Up to 35,000 IOPS

Reliability & Endurance

• Endurance Rating: 1 DWPD
• Total Bytes Written (TBW): 7,008 TB
• MTBF: 2,000,000 Hours
• Enterprise Error Correction
• Uncorrectable Bit Error Rate (UBER): 1 in 10¹⁷ bits read
• Power Loss Protection with Onboard Capacitors

Power Consumption

• Active Read/Write: Up to 11W
• Idle Power: Approximately 4.5W

Security

• Non-SED (Non Self-Encrypting Drive)
• Does NOT support hardware-based Self-Encryption
• Does NOT support Instant Secure Erase (ISE)

Compatible Storage Systems

Dell EMC Unity & Unity XT

• Unity 300 / 300F
• Unity 350 / 350F
• Unity 400 / 400F
• Unity 450 / 450F
• Unity 500 / 500F
• Unity 550 / 550F
• Unity 600 / 600F
• Unity 650 / 650F
• Unity XT 380 / 380F
• Unity XT 480 / 480F
• Unity XT 680 / 680F
• Unity XT 880 / 880F

Dell EMC Storage Platforms

• VNX5200
• VNX5400
• VNX5600
• VNX5800
• VNX7600
• VNX8000
• PowerVault ME4 Series
• PowerVault ME5 Series
• Select Isilon Systems
• Select PowerScale Systems
• Select VMAX Systems
• Select PowerMax Systems

Compatible Server Platforms

Dell PowerEdge Servers

• R630
• R730
• R730XD
• T630
• R640
• R740
• R740XD
• R940
• R650
• R750
• R660
• R760

HPE ProLiant Servers

• DL360 Gen9 / Gen10
• DL380 Gen9 / Gen10
• DL560 Gen9 / Gen10
• DL580 Gen9 / Gen10
• ML350 Gen9 / Gen10

Lenovo ThinkSystem & IBM Servers

• ThinkSystem SR550
• ThinkSystem SR630
• ThinkSystem SR650
• ThinkSystem ST550
• IBM System x3550 M5
• IBM System x3650 M5

Cisco UCS Servers

• UCS C220 M4
• UCS C240 M4
• UCS C220 M5
• UCS C240 M5
• UCS C220 M6
• UCS C240 M6
• UCS B200 M4
• UCS B200 M5
• UCS B200 M6
• UCS S3260

Supermicro Servers

• SuperServer SYS-1029 Series
• SuperServer SYS-2029 Series
• SuperServer SYS-6029 Series
• SuperStorage Platforms
• BigTwin Platforms
• Ultra Platforms
• Hyper Platforms
• Additional Supermicro systems supporting 2.5" SAS 12G SSDs

Condition

Professionally tested and verified for full functionality. Drive health, firmware version, sector size configuration, and cosmetic condition may vary slightly from unit to unit.

What's Included

• EMC 3.84TB SAS 12G RI SFF 2.5" SSD
• Tray/Caddy Not Included

Important Notes

• This is an enterprise Read Intensive (RI) SSD designed for enterprise storage and server environments.
• This drive is a Non-SED model.
• EMC firmware versions may be formatted with 520-byte sectors. Some server environments may require reformatting to 512-byte sectors before deployment.
• Please verify compatibility with your server, storage array, controller, firmware version, and operating environment before purchasing.
