Edge-Core EPS201 48x1GBASE-T, 4x 10G/25G SFP28, 2x 100G QSFP28 L2/L3 Network Switch with Port-to-Power (Front-to-Back) Airflow. P/N: AS4630-54TE-O-AC-F.
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description

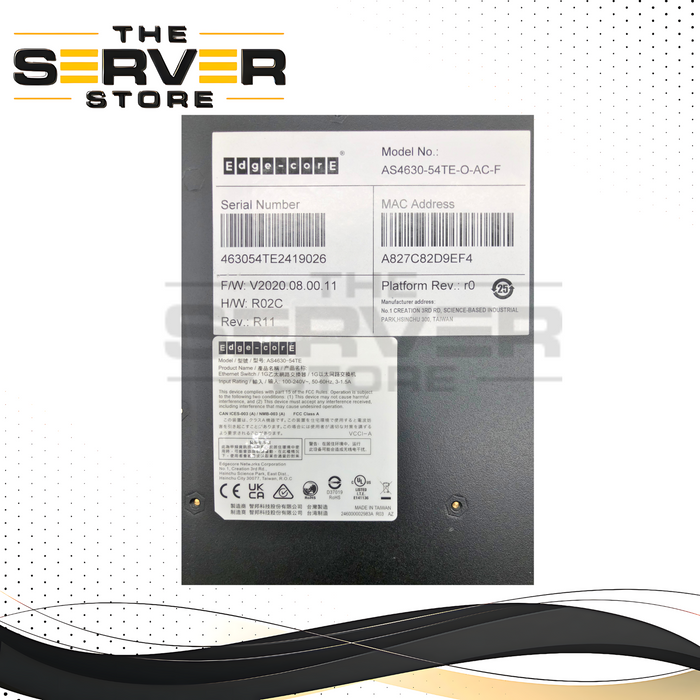

| Manufacturer Part Number | AS4630-54TE-O-AC-F, EPS201, F0PZZ4654410A |
| Manufacturer | Edge-Core |
| Condition | Used |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Network Switch |
| Model | AS4630-54TE / EPS201 |
| Form Factor | 1U Rack-mountable |
| Interface | 1 Gigabit Ethernet (1GbE), 10 Gigabit Ethernet (10GbE), 25 Gigabit Ethernet (25GbE), 100 Gigabit Ethernet (100GbE) |
| External Interfaces | 48x RJ-45 (1GbE), 4x SFP28 (10G/25G), 2x QSFP28 (100G), Console, USB, Management Port |
| Storage Capacity | |
| Transfer Rate | 1/10/25/100 Gb/s |
| Network Management Type | Managed (CLI, SNMP, Web GUI via NOS) |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | RJ-45, SFP28, QSFP28 |
| Number of Ports | 54 (48x1G, 4x25G, 2x100G) |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

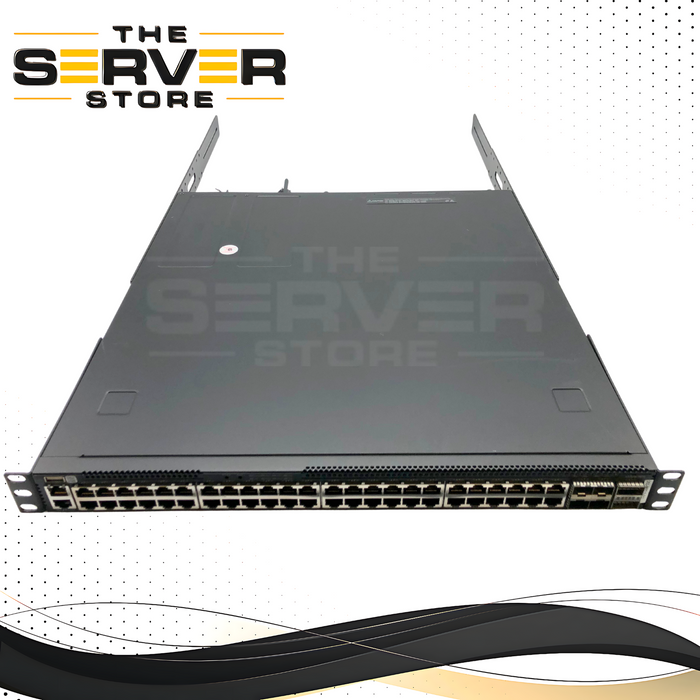

This is a genuine Edge-Core EPS201 (AS4630-54TE-O-AC-F) Layer 2/3 Network Switch (P/N: EPS201, AS4630-54TE-O-AC-F, F0PZZ4654410A). As part of Edge-Core's robust line of open networking switches, the AS4630-54TE-O-AC-F is designed for versatility and high performance in data center access, enterprise aggregation, or service provider networks. It offers a comprehensive port configuration including 48x 1GBASE-T (RJ-45) ports for dense connectivity, 4x flexible 10G/25G SFP28 uplink ports, and 2x high-bandwidth 100G QSFP28 uplink ports. This powerful combination allows for seamless connectivity from edge devices to the network core. Equipped with Port-to-Power (Front-to-Back) Airflow and dual AC power supplies for redundancy, this switch ensures efficient cooling and high availability. It supports a wide range of network operating systems (NOS), making it a flexible and future-proof solution for disaggregated network deployments.
Key Features
-
Diverse Port Configuration:
- 48x 1GBASE-T Ports: Provides high-density Gigabit Ethernet connectivity over copper for servers, workstations, and other network devices.
- 4x 10G/25G SFP28 Uplinks: Flexible uplink ports supporting both 10 Gigabit Ethernet (SFP+) and 25 Gigabit Ethernet (SFP28) for high-speed connections to aggregation or core layers.
- 2x 100G QSFP28 Uplinks: Ultra-high bandwidth uplink ports for massive data transfer, ideal for connecting to core switches or spine layers.
- Layer 2/3 Switching: Full wire-speed Layer 2 switching and Layer 3 routing capabilities, ensuring efficient data forwarding and network segmentation.
- Open Network Design: Compatible with a range of open network operating systems (NOS) such as Open Network Linux (ONL), Cumulus Linux, SONiC, and Edge-Core's own Network OS, providing deployment flexibility.
-

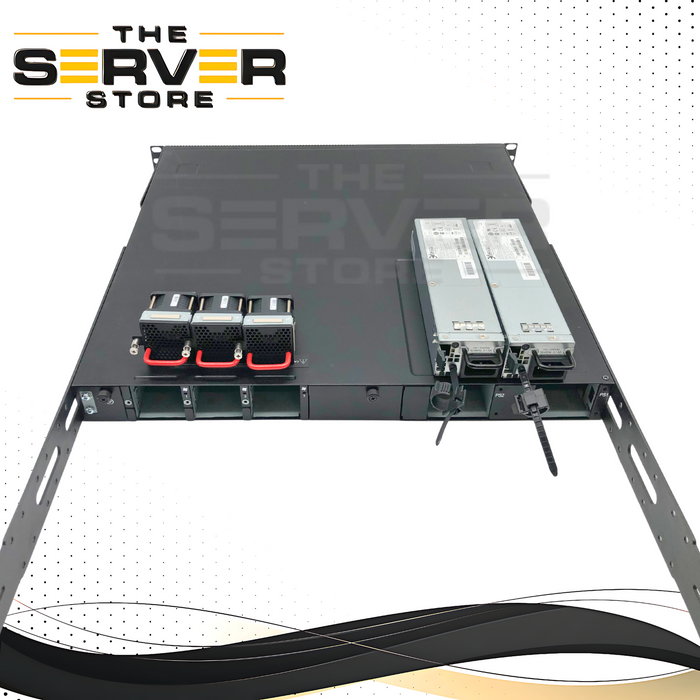

Port-to-Power (Front-to-Back) Airflow: Optimized thermal design for standard data center rack installations, drawing cool air from the port side (front) and exhausting hot air from the power supply side (back).
-
Redundant Dual AC Power Supplies: Equipped with two hot-swappable AC power supply units (PSUs) for power redundancy, enhancing reliability and minimizing downtime.
-
Robust Hardware: Built with a high-performance Broadcom StrataXGS Trident II+ or similar ASIC, ensuring high packet processing capacity and low latency.
- Advanced Features: Supports a comprehensive suite of networking features including VLANs, QoS, Link Aggregation (LACP), IPv4/IPv6 routing protocols (OSPF, BGP, ECMP), and advanced security features.
-
Energy Efficient: Designed with power optimization in mind for reduced operational costs.
