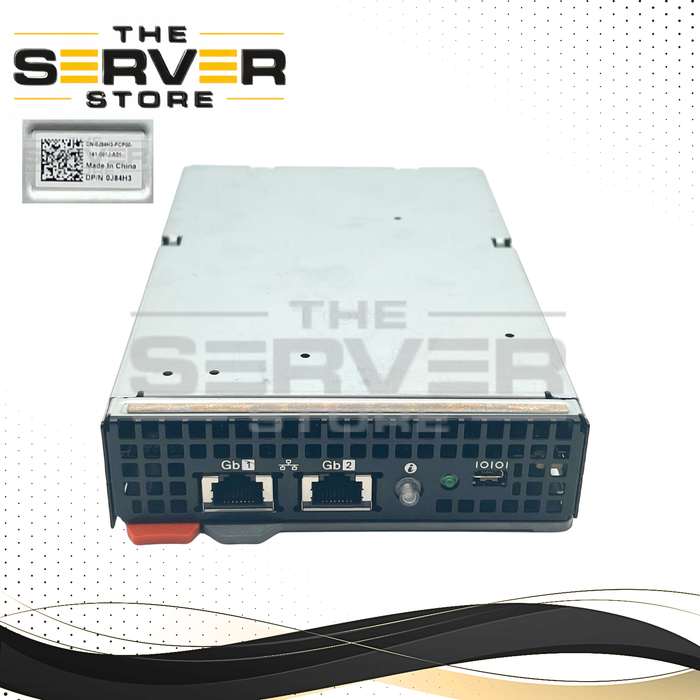

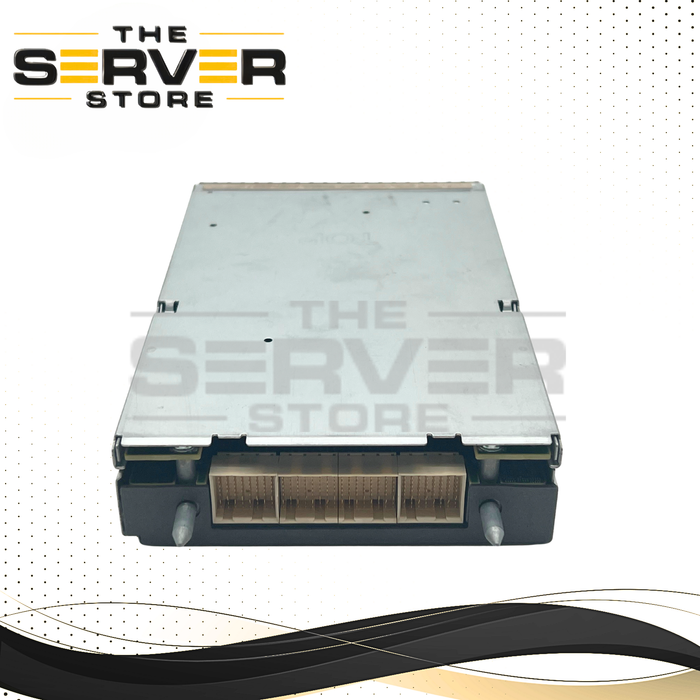

Dell Remote Management Module Dual Port PowerEdge MX9002m MX7000 0J84H3 J84H3
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 0J84H3 J84H3 |
| Manufacturer | Dell |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Network Interface Cards |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell Remote Management Module Dual Port PowerEdge MX9002m MX7000 0J84H3 J84H3
The Dell Technologies 0J84H3 (J84H3) is the MX9002m Chassis Management Module, purpose-built for the Dell PowerEdge MX7000 platform. It acts as the centralized management controller for the entire modular infrastructure, including compute sleds, storage, networking, and power resources within the chassis.
Related Part Numbers
0J84H3, J84H3, 99G48, 099G48
Core Specifications
- Model Name: MX9002m Chassis Management Module
- Compatibility: Dell PowerEdge MX7000 enclosure only
- Form Factor: Rear plug-in module
- Redundancy: Supports dual-module configuration for high availability
- Management Platform: OpenManage Enterprise – Modular Edition (OME-Modular)
Management & Connectivity
- Web Interface: GUI-based management (up to 6 concurrent sessions)
- RESTful API: Up to 32 concurrent sessions for automation/integration
- SSH Access: Up to 4 concurrent CLI sessions
- RACADM Support: Local and remote command-line management
- Supported Protocols: SNMP, NTP, CIFS
-
Networking:
- Dual Ethernet management ports
- Supports Multi-Chassis Management (MCM) for scaling across multiple MX7000 systems
Key Features
-
Centralized Chassis Control:
Manages compute nodes, storage modules, I/O fabrics, cooling, and power from a single interface -
High Availability:
Dual-module redundancy ensures continuous operation with failover support -
Automation Ready:
Full REST API and RACADM support for scripting, orchestration, and large-scale deployments -
Scalable Architecture:
Enables Multi-Chassis Management (MCM) to manage multiple MX7000 enclosures as a single domain -
Enterprise Monitoring:
Real-time health status, alerts, and logging for proactive infrastructure management
Physical Features
- Ports: Dual management Ethernet ports
- Indicators: Status and power LEDs
- Weight: ~0.5 kg (1.1 lbs)
Important Notes
- Designed exclusively for the Dell PowerEdge MX7000 chassis (not compatible with rack or tower servers)
- Requires at least one MX9002m module installed; a second module is optional for redundancy
- Firmware and feature set are tightly integrated with Dell OpenManage ecosystem
Summary
The Dell MX9002m (0J84H3 / J84H3) is a critical infrastructure component for the MX7000 platform, delivering centralized, scalable, and highly available management. With advanced automation capabilities, dual-port connectivity, and full integration into OpenManage, it is essential for efficiently operating modern composable data center environments.
