Dell EMC High Performance Cooling Fan PowerEdge Server R740 R7425 04VXP3 4VXP3
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 04VXP3 4VXP3 |
| Manufacturer | Dell |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Fans and Heatsinks |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell EMC High Performance Cooling Fan PowerEdge Server R740 R7425 04VXP3 4VXP3

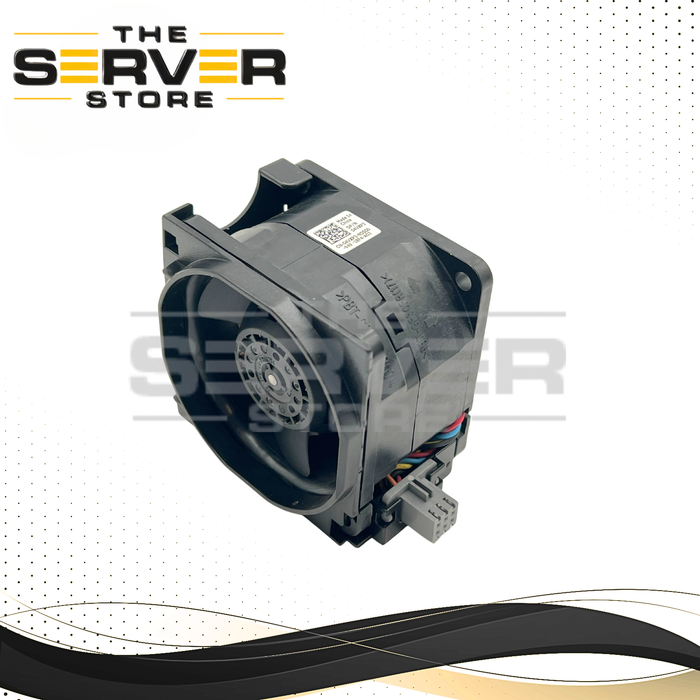

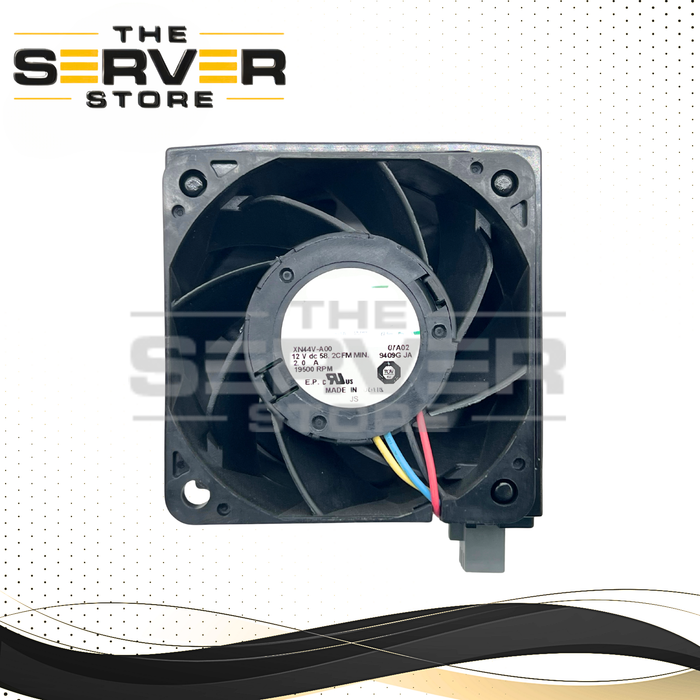

The Dell 04VXP3 (also referenced as 4VXP3) is a high-performance, hot-pluggable cooling fan module engineered for 14th Generation Dell EMC PowerEdge 2U rack servers. Designed for high-density and high-TDP configurations, this module delivers aggressive airflow up to 17,000 RPM to maintain optimal thermal stability in systems equipped with GPUs, mid-bay storage, or high-wattage processors.
This fan is critical for enterprise environments requiring maximum cooling efficiency to prevent thermal throttling and ensure consistent system performance.
Technical Specifications
-
Part Number: 04VXP3 / 4VXP3
-
Fan Speed: Up to 17,000 RPM
-
Airflow: 66.4 CFM
-
Static Pressure: 3.713 in H₂O (925 Pa)
-
Noise Level: 63.5 dB
-
Voltage / Current: 12V DC @ 1.8A
-
Dimensions: 60mm x 60mm x 38mm
-
Connector: 6-pin proprietary midplane header
-
Bearing Type: Dual Ball Bearing
-
Control Method: PWM (Pulse Width Modulation) via system firmware (iDRAC controlled)
Primary System Compatibility
Fully compatible with the following 14G PowerEdge platforms:
-
Dell PowerEdge R740
-
Dell PowerEdge R740xd
-
Dell PowerEdge R7425
-
Dell PowerEdge R840 (High-performance configurations)
Configuration Requirements
Compatibility depends on system configuration, not just the server model:
-
High-Density Storage: Required for mid-bay or rear-bay drive configurations
-
GPU / FPGA Installations: A full set of six (6) 04VXP3 fans is typically required
-
High-TDP CPUs: Recommended for processors above 150W–165W TDP
-
Redundancy: Supports N+1 cooling architecture
Interchangeable / Related Part Numbers
-
04VXP3
-
4VXP3
-
06038DA-12S-EWH (Nidec OEM)
-
VF60381B1-Q070-S99
-
N5T36 / 0N5T36
-
CT3RT / 0CT3RT
-
384-BBQC (Dell Order Code)
Compatibility Exclusions
-
1U Servers: Not compatible with models such as the Dell PowerEdge R640 (uses smaller 40mm fans)
-
12th / 13th Generation Servers: Not compatible with older platforms like Dell PowerEdge R720 or Dell PowerEdge R730
The Dell EMC 04VXP3 high-performance cooling fan is essential for maintaining airflow and thermal reliability in demanding 14th Generation PowerEdge server deployments, particularly in GPU-enabled or high-density enterprise configurations.
