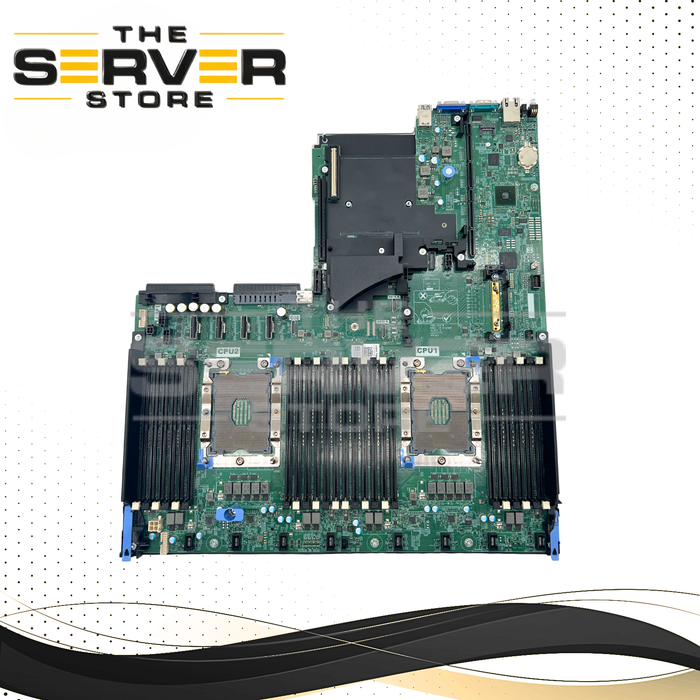

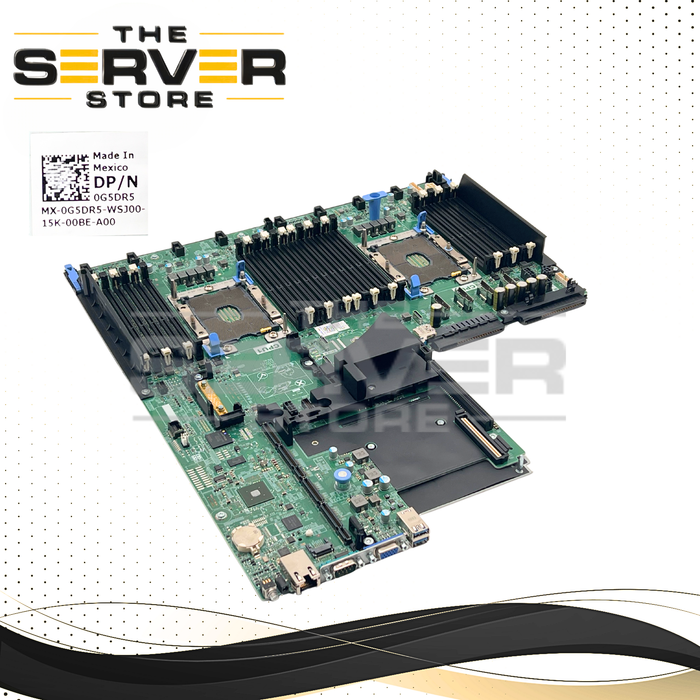

Dell EMC Dual Socket (P) FCLGA3647 DDR4 1U Motherboard for PowerEdge R640 | 0G5DR5 | G5DR5
Maximize the performance and reliability of your Dell EMC PowerEdge R640 server with the Dell G5DR5 / 0G5DR5 Dual-Socket Server Motherboard. Designed specifically for the PowerEdge R640 1U rack server, this motherboard supports 1st and 2nd Generation Intel Xeon Scalable processors, high-capacity DDR4 memory configurations, PCIe Gen3 expansion, advanced storage controller options, and integrated Dell iDRAC9 remote management capabilities. It is an ideal replacement motherboard for restoring or upgrading enterprise data center infrastructure.
Built around the Intel C620 Series chipset, the G5DR5 motherboard supports dual Intel Xeon Scalable processors with up to 28 cores per CPU, delivering exceptional performance for virtualization, cloud computing, databases, software-defined storage, and mission-critical business applications.
Compatible Part Numbers: G5DR5, 0G5DR5
Key Features
- Dell EMC PowerEdge R640 Server Motherboard
- Dell Part Number: G5DR5
- Dell DP/N: 0G5DR5
- Dual Socket P (FCLGA3647)
- Intel C620 Series Server Chipset
- Supports 1st & 2nd Generation Intel Xeon Scalable Processors
- Up to 28 Cores Per Processor
- Supports Dual Processor Configurations
- 24 DDR4 DIMM Slots
- Support for RDIMM, LRDIMM, and NVDIMM-N Memory
- Up to 3TB Memory Capacity
- Integrated Dell iDRAC9 Remote Management
- Embedded PERC S140 RAID Support
- Dedicated Mini-PERC Expansion Slot
- BOSS (Boot Optimized Storage Subsystem) Support
- Designed for Dell EMC PowerEdge R640 1U Servers
Processor Support
- Intel Xeon Scalable Bronze Series
- Intel Xeon Scalable Silver Series
- Intel Xeon Scalable Gold Series
- Intel Xeon Scalable Platinum Series
- 1st Generation Intel Xeon Scalable Processors
- 2nd Generation Intel Xeon Scalable Processors
- Dual FCLGA3647 CPU Sockets
- Up to 56 Total Cores in Dual CPU Configuration
Memory Specifications
- 24 x DDR4 DIMM Slots
- 12 DIMM Slots Per Processor
- ECC Registered DIMM (RDIMM) Support
- Load Reduced DIMM (LRDIMM) Support
- NVDIMM-N Support
- Up to 1.5TB Memory with RDIMMs
- Up to 3TB Memory with LRDIMMs
- Up to 192GB NVDIMM Configuration
- Up to 2933 MT/s Memory Speeds
Storage & Expansion
- Embedded Dell PERC S140 Software RAID
- Compatible with PERC H330 Controllers
- Compatible with PERC H730P Controllers
- Compatible with PERC H740P Controllers
- Dedicated Mini-PERC Slot
- Dell BOSS M.2 Boot Storage Support
- Supports Up To 3 PCIe Gen3 Expansion Slots Via Riser Cards
Integrated Networking & Management
- Dell iDRAC9 with Lifecycle Controller
- Dedicated iDRAC Management Port
- Support for Dell Network Daughter Cards (rNDC)
- Supported Network Configurations:
- 4 x 1GbE
- 2 x 10GbE + 2 x 1GbE
- 4 x 10GbE SFP+
- 2 x 25GbE SFP28
- VGA Video Output
- USB 3.0 Connectivity
- Serial Port Support
Compatible Server Configurations
- Dell EMC PowerEdge R640
- PowerEdge R640 4-Bay LFF
- PowerEdge R640 8-Bay SFF
- PowerEdge R640 10-Bay NVMe
- PowerEdge R640 All-NVMe Configurations
- PowerEdge R640 VMware Deployments
- PowerEdge R640 Microsoft Hyper-V Environments
- PowerEdge R640 Private Cloud Platforms
- PowerEdge R640 Database Servers
- PowerEdge R640 Virtualization Clusters
Compatible Processor Families
- Intel Xeon Bronze 3100 Series
- Intel Xeon Bronze 3200 Series
- Intel Xeon Silver 4100 Series
- Intel Xeon Silver 4200 Series
- Intel Xeon Gold 5100 Series
- Intel Xeon Gold 6100 Series
- Intel Xeon Gold 6200 Series
- Intel Xeon Gold 6200R Series
- Intel Xeon Platinum 8100 Series
- Intel Xeon Platinum 8200 Series
Ideal Applications
- Enterprise Data Centers
- Server Repair and Replacement
- Virtualization Infrastructure
- VMware vSphere
- Microsoft Hyper-V
- Database Servers
- Software-Defined Storage
- High Availability Clusters
- Virtual Desktop Infrastructure (VDI)
- Cloud Computing Platforms
Package Includes
- Dell EMC PowerEdge R640 Motherboard
- Dell Part Number: G5DR5
- Dell DP/N: 0G5DR5
Important Compatibility Notice
This motherboard is designed specifically for the Dell EMC PowerEdge R640 1U Rack Server and supports Intel Xeon Scalable processors utilizing the FCLGA3647 socket platform. Please verify compatibility with your server configuration, BIOS version, processor generation, and installed components prior to purchase.
Processors, heatsinks, memory, RAID controllers, riser cards, network daughter cards, drives, iDRAC licenses, and other accessories are not included.
Functional Equivalent part numbers: G5DR5 / 0G5DR5, CRT1G / 0CRT1G, X45NX / 0X45NX, HG0J8 / 0HG0J8, XFK4K / 0XFK4K, 8HT8T / 08HT8T, 6DKY5 / 06DKY5, W23H8 / 0W23H8, PHYDR / 0PHYDR, 6NR82 / 06NR82, RGP26 / 0RGP26, 08R9M / 008R9M, H28RR / 0H28RR, P2YGM / 0P2YGM, RJCR7 / 0RJCR7, 413MP / 0413MP, 7F8T0 / 07F8T0, JXP9N / 0JXP9N, GRR79 / 0GRR79
