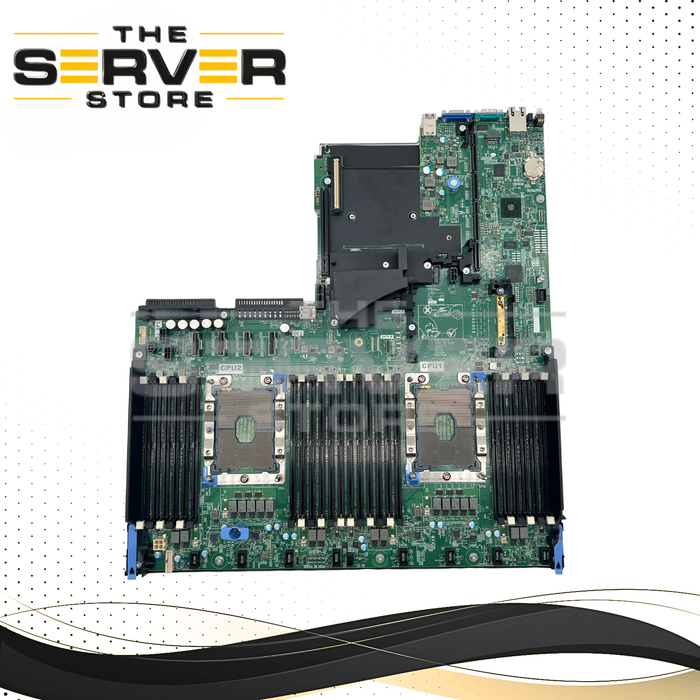

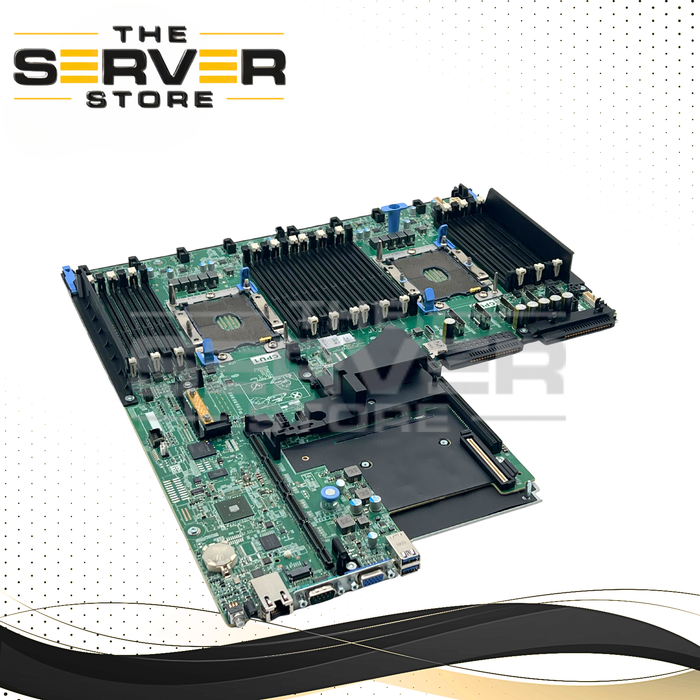

Dell EMC Dual Intel Socket (P) FCLGA3647 DDR4 (RDIMM / LRDIMM) 24 Slots 1U Motherboard for PowerEdge R640 Server 0P2YGM P2YGM
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 0P2YGM / P2YGM |
| Manufacturer | Dell |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Server Motherboards |
| Model | PowerEdge R640 |
| Form Factor | |
| Interface | |
| External Interfaces | 1x VGA, 2x USB 3.0, 1x Serial, 1x iDRAC Management Port |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | iDRAC9 |
| Processor Type | 1st & 2nd Gen Intel Xeon Scalable |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | Dual LGA3647 |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell Dual FCLGA3647 DDR4 Server Motherboard for PowerEdge R640 | 0P2YGM | P2YGM
Restore the performance and reliability of your Dell EMC PowerEdge R640 server with the Dell P2YGM / 0P2YGM Dual-Socket Server Motherboard. Designed specifically for the PowerEdge R640 1U rack server platform, this enterprise-class motherboard provides support for dual Intel Xeon Scalable processors, high-capacity DDR4 ECC memory, advanced storage controller options, PCIe expansion, and integrated Dell remote management capabilities.
Built on the Intel C620 Series server chipset, the Dell P2YGM motherboard is engineered for demanding data center environments requiring exceptional reliability, scalability, and performance. Whether deployed for virtualization, cloud computing, database processing, software-defined storage, or business-critical workloads, this motherboard delivers the foundation needed for enterprise server operations.
Compatible Part Numbers: P2YGM, 0P2YGM
KEY FEATURES
• Dell EMC PowerEdge R640 Server Motherboard
• Dell Part Number: P2YGM
• Dell DP/N: 0P2YGM
• Dual FCLGA3647 Processor Sockets
• Intel C620 Series Server Chipset
• Supports 1st & 2nd Generation Intel Xeon Scalable Processors
• Compatible with Intel Xeon Bronze, Silver, Gold, and Platinum CPUs
• Supports Dual Processor Configurations
• Up to 24 DDR4 ECC DIMM Slots
• RDIMM, LRDIMM, and NVDIMM-N Memory Support
• Integrated Dell iDRAC9 Remote Management
• Embedded Dell PERC S140 RAID Support
• Dedicated Mini-PERC RAID Expansion Slot
• Dell BOSS Boot Optimized Storage Support
• Designed Specifically for Dell EMC PowerEdge R640 Servers
TECHNICAL SPECIFICATIONS
• Form Factor: Proprietary Dell PowerEdge R640 System Board
• CPU Socket Type: Dual FCLGA3647
• Chipset: Intel C620 Series
• Supported Processor Generations: 1st & 2nd Gen Intel Xeon Scalable
• Maximum Processor Count: 2
• Memory Slots: 24 DDR4 DIMM Slots
• Memory Type: ECC RDIMM, LRDIMM, NVDIMM-N
• Maximum Memory Capacity: Up To 3TB
• Maximum Memory Speed: Up To 2933 MT/s
• RAID Support: Dell PERC S140
• Remote Management: Dell iDRAC9 with Lifecycle Controller
• Expansion Support: PCIe Gen3 via Riser Cards
MEMORY SUPPORT
• 24 DDR4 ECC DIMM Slots
• Up To 3TB Using LRDIMMs
• Up To 1.5TB Using RDIMMs
• Up To 192GB NVDIMM-N Support
• ECC Memory Compatibility
• Registered DIMM (RDIMM) Support
• Load Reduced DIMM (LRDIMM) Support
• Memory Speeds Up To 2933 MT/s
STORAGE & EXPANSION
• Embedded Dell PERC S140 Software RAID
• Dedicated Mini-PERC Controller Slot
• Compatible with PERC H330 RAID Controllers
• Compatible with PERC H730P RAID Controllers
• Compatible with PERC H740P RAID Controllers
• Dell BOSS Dual M.2 Boot Storage Support
• Supports Up To 3 PCIe Gen3 Expansion Slots Through Dell Riser Assemblies
• Supports SATA, SAS, SSD, and NVMe Storage Configurations
NETWORKING & MANAGEMENT
• Integrated Dell iDRAC9 with Lifecycle Controller
• Dedicated iDRAC Management Port
• Support for Dell Network Daughter Cards (rNDC)
• Compatible with 1GbE, 10GbE, and 25GbE Networking Solutions
• VGA Video Output
• USB Connectivity
• Serial Management Port Support
COMPATIBLE SERVER PLATFORMS
• Dell EMC PowerEdge R640
• PowerEdge R640 4-Bay LFF Configurations
• PowerEdge R640 8-Bay SFF Configurations
• PowerEdge R640 10-Bay NVMe Configurations
• PowerEdge R640 Hybrid Storage Systems
• PowerEdge R640 VMware vSphere Environments
• PowerEdge R640 Microsoft Hyper-V Deployments
• PowerEdge R640 Private Cloud Infrastructure
• PowerEdge R640 Database Servers
• PowerEdge R640 Virtualization Clusters
• PowerEdge R640 Software Defined Storage Deployments
COMPATIBLE PROCESSOR FAMILIES
• Intel Xeon Bronze 3100 Series
• Intel Xeon Bronze 3200 Series
• Intel Xeon Silver 4100 Series
• Intel Xeon Silver 4200 Series
• Intel Xeon Gold 5100 Series
• Intel Xeon Gold 6100 Series
• Intel Xeon Gold 6200 Series
• Intel Xeon Gold 6200R Series
• Intel Xeon Platinum 8100 Series
• Intel Xeon Platinum 8200 Series
IDEAL APPLICATIONS
• Enterprise Data Centers
• Virtualization Environments
• Cloud Computing Platforms
• Database Servers
• Business-Critical Applications
• VMware Deployments
• Microsoft Hyper-V Infrastructure
• High Availability Clusters
• Software Defined Storage
• Virtual Desktop Infrastructure (VDI)
PACKAGE INCLUDES
• Dell EMC PowerEdge R640 Motherboard
• Dell Part Number: P2YGM
• Dell DP/N: 0P2YGM
IMPORTANT COMPATIBILITY NOTICE
This motherboard is designed specifically for Dell EMC PowerEdge R640 rack servers and supports Intel Xeon Scalable processors utilizing the FCLGA3647 socket platform. Please verify compatibility with your server service tag, processor generation, memory configuration, BIOS revision, and installed hardware before purchasing.
Processors, heatsinks, memory modules, RAID controllers, riser cards, network daughter cards, drives, cables, and other accessories are not included.
Functional Equivalent part numbers: G5DR5 / 0G5DR5, CRT1G / 0CRT1G, X45NX / 0X45NX, HG0J8 / 0HG0J8, XFK4K / 0XFK4K, 8HT8T / 08HT8T, 6DKY5 / 06DKY5, W23H8 / 0W23H8, PHYDR / 0PHYDR, 6NR82 / 06NR82, RGP26 / 0RGP26, 08R9M / 008R9M, H28RR / 0H28RR, P2YGM / 0P2YGM, RJCR7 / 0RJCR7, 413MP / 0413MP, 7F8T0 / 07F8T0, JXP9N / 0JXP9N, GRR79 / 0GRR79
