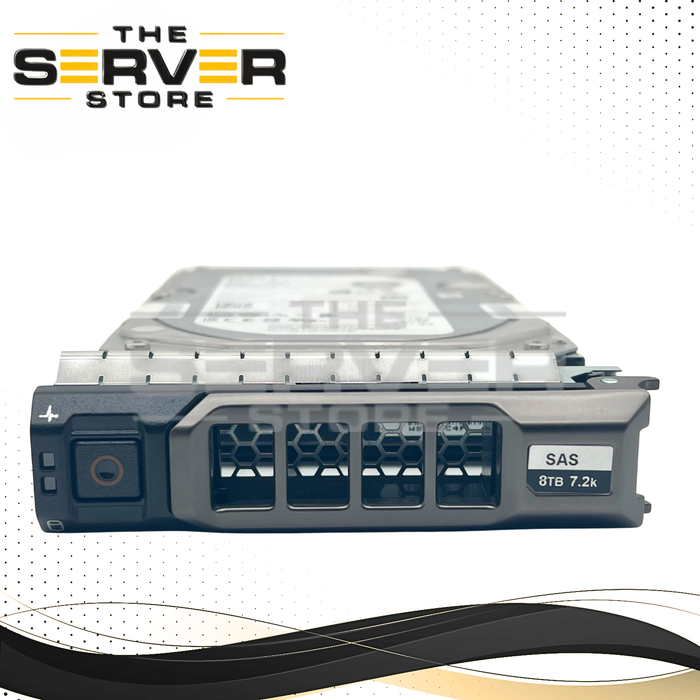

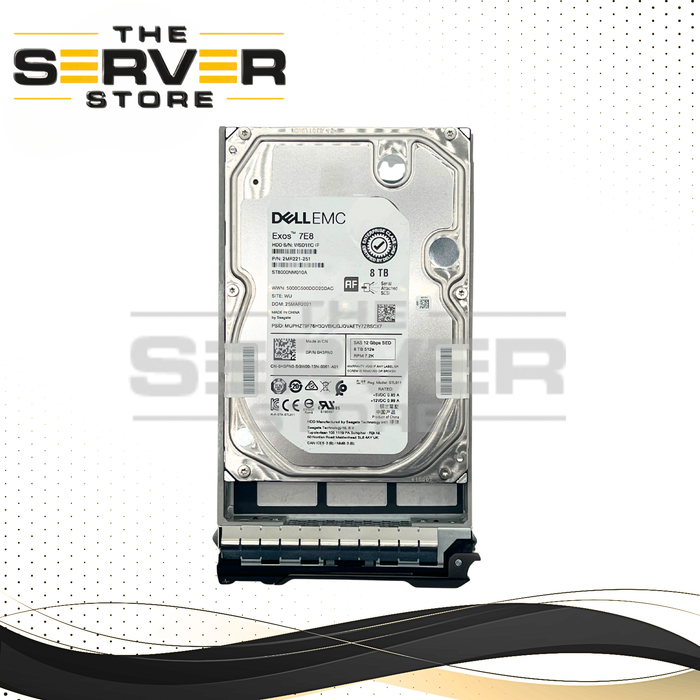

Dell EMC 8TB SAS 12G 7.2K RPM LFF 3.5" SED HDD Seagate Exos 7E8 Series ST8000NM010A 0H3PN0 H3PN0 (With Gen 13th 3.5" LFF Tray)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 0H3PN0 / H3PN0 |
| Manufacturer | Seagate |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Hard Drive (HDD) |
| Model | Seagate Exos 7E8 Series ST8000NM010A |
| Form Factor | LFF 3.5" HDD (Includes Dell PowerEdge Gen13th 3.5" LFF) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell EMC 8TB 7.2K RPM SAS 12Gb/s 3.5" LFF SED Hard Drive (Includes Dell PowerEdge Gen13th 3.5" LFF)
The Dell EMC 8TB SAS 12Gb/s Nearline Hard Drive delivers enterprise-class capacity, reliability, and security for data center environments. Built on the Seagate Exos 7E8 platform, this 3.5-inch Large Form Factor (LFF) drive features a 7,200 RPM spindle speed, dual-port SAS interface, and Self-Encrypting Drive (SED) technology with FIPS 140-2 validation. Designed for Dell PowerEdge servers and PowerVault storage systems, it provides dependable performance for business-critical applications and large-scale storage deployments.
Key Features
- 8TB enterprise storage capacity
- 12Gb/s SAS dual-port interface
- 7,200 RPM rotational speed
- 3.5-inch Large Form Factor (LFF)
- Self-Encrypting Drive (SED)
- FIPS 140-2 Level 2 security compliant
- 256MB cache buffer
- 512e Advanced Format technology
- Enterprise-class reliability for 24/7 operation
- Dell OEM firmware optimized for server and storage environments
Specifications
Manufacturer: Dell EMC / Seagate
Dell Part Number(s):
- H3PN0
- 0H3PN0
Seagate Part Number(s):
- ST8000NM010A
- 2MR221-251
Drive Family: Seagate Exos 7E8
Capacity: 8TB
Interface: SAS 12Gb/s (SAS-3)
Interface Type: Nearline SAS (NL-SAS)
Form Factor: 3.5-inch LFF
Spindle Speed: 7,200 RPM
Cache: 256MB
Sector Format: 512e Advanced Format
Average Latency: 4.16 ms
Maximum Sustained Transfer Rate: Up to 249 MB/s
Encryption: Self-Encrypting Drive (SED)
Security Standards: TCG Enterprise / FIPS 140-2 Level 2
MTBF: 2.0 Million Hours
Workload Rating: 550TB per Year
Hot Swap: Yes
Compatible Systems
Compatible with select Dell PowerEdge Servers including:
- PowerEdge R240
- PowerEdge R340
- PowerEdge R440
- PowerEdge R540
- PowerEdge R640
- PowerEdge R740
- PowerEdge R740xd
- PowerEdge R840
- PowerEdge R940
- PowerEdge R650
- PowerEdge R750
- PowerEdge R760
Compatible with select Dell PowerVault Storage Arrays including:
- ME4012
- ME412
- ME5012
- MD1400
Related Part Numbers
- 0H3PN0
- H3PN0
- ST8000NM010A
- 2MR221-251
