Dell EMC 7.68TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" 15mm SSD Western Digital / HGST Ultrastar DC SN200 Series HUSMR7676BDP3Y1 118000590-04 (Dell PowerEdge G15th Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 118000590-04 |
| Manufacturer | Dell / Western Digital / HGST |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | HUSMR7676BDP3Y1 |
| Form Factor | SFF 2.5" SSD (Dell PowerEdge G15th Tray Included) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell EMC 7.68TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" 15mm SSD Western Digital / HGST Ultrastar DC SN200 Series HUSMR7676BDP3Y1 118000590-04 (Dell PowerEdge 15G Tray Included)
Upgrade your enterprise storage infrastructure with the Dell EMC 7.68TB NVMe SSD, powered by the high-performance Western Digital / HGST Ultrastar DC SN200 Series platform. Designed for modern data centers, virtualization environments, cloud computing, and enterprise applications, this SSD delivers exceptional reliability, ultra-low latency, and outstanding NVMe performance.
Featuring a PCIe Gen 3.0 x4 NVMe interface, enterprise-grade MLC NAND flash, and a compact 2.5-inch U.2 form factor, the Ultrastar DC SN200 Series is optimized for demanding workloads requiring fast and consistent access to critical data.
Key Features
- 7.68TB Enterprise NVMe SSD
- Dell EMC / Western Digital / HGST Ultrastar DC SN200 Series
- PCIe Gen 3.0 x4 NVMe Interface
- U.2 2.5-inch Small Form Factor (SFF)
- 15mm Drive Height
- Read Intensive (RI) Endurance
- Enterprise MLC NAND Flash Technology
- Advanced Power-Loss Protection
- End-to-End Data Path Protection
- Ultra-Low Latency Performance
- Dell PowerEdge 15G NVMe Tray Included
Technical Specifications
- Manufacturer: Dell EMC / Western Digital / HGST
- Series: Ultrastar DC SN200
- Model: HUSMR7676BDP3Y1
- Dell Part Number: 118000590-04
- Alternate Part Numbers: HUSMR7676BDP3Y1, 0TS1479, 54-90-60010-8192G
- Capacity: 7.68TB
- Interface: PCIe Gen 3.0 x4 NVMe
- NVMe Specification: NVMe 1.2
- Form Factor: 2.5" U.2 SFF
- Drive Height: 15mm
- Flash Type: Enterprise MLC NAND
- Endurance Type: Read Intensive (RI)
- MTBF: 2 Million Hours
- Sequential Read Speed: Up to 3,300 MB/s
- Sequential Write Speed: Up to 2,100 MB/s
- Random Read Performance: Up to 835,000 IOPS
- Random Write Performance: Up to 75,000 IOPS
- Dual-Port Support: Yes
- Power-Loss Protection: Yes
- Secure Erase Support: Yes
Dell PowerEdge 15G Tray Compatibility
Includes a Dell PowerEdge 15th Generation (15G) NVMe drive tray compatible with select NVMe-enabled server configurations, including:
- PowerEdge R250
- PowerEdge R350
- PowerEdge R450
- PowerEdge R550
- PowerEdge R650
- PowerEdge R650xs
- PowerEdge R750
- PowerEdge R750xs
- PowerEdge R750xa
- PowerEdge R6525
- PowerEdge R7525
- PowerEdge T350
- PowerEdge T550
Supported Applications
Ideal for:
- Enterprise Databases
- Virtualization Platforms
- Cloud Infrastructure
- Hyper-Converged Systems
- Software-Defined Storage
- High-Performance Computing (HPC)
- Data Analytics
- Mission-Critical Workloads
Important Compatibility Information
- Requires an NVMe-enabled backplane or U.2 NVMe-compatible storage configuration.
- Not compatible with standard SATA-only drive bays.
- Not compatible with standard SAS-only backplanes unless specifically designed for NVMe operation.
- Please verify server and backplane compatibility before purchasing.
Package Includes
- Dell EMC 7.68TB NVMe U.2 SSD
- Dell PowerEdge 15G NVMe Drive Tray/Caddy
- Model: HUSMR7676BDP3Y1
- Dell P/N: 118000590-04
- Alternate P/Ns: 0TS1479, 54-90-60010-8192G

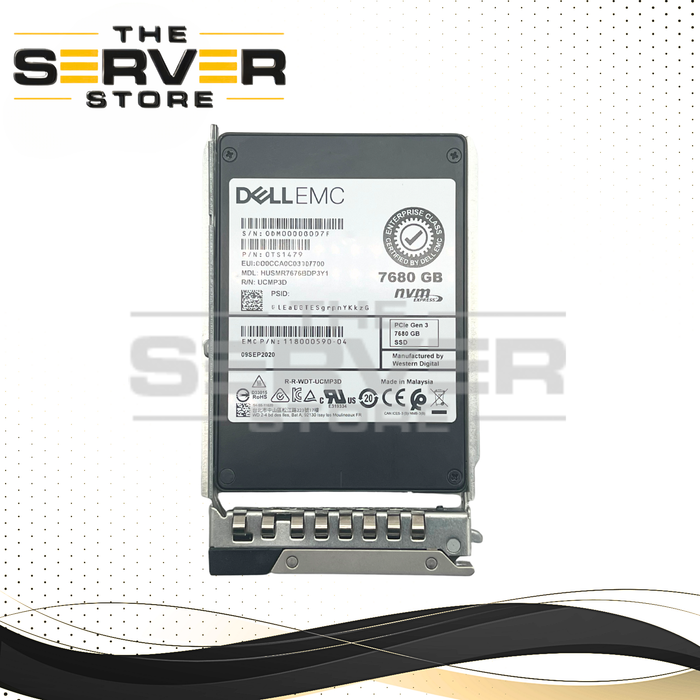

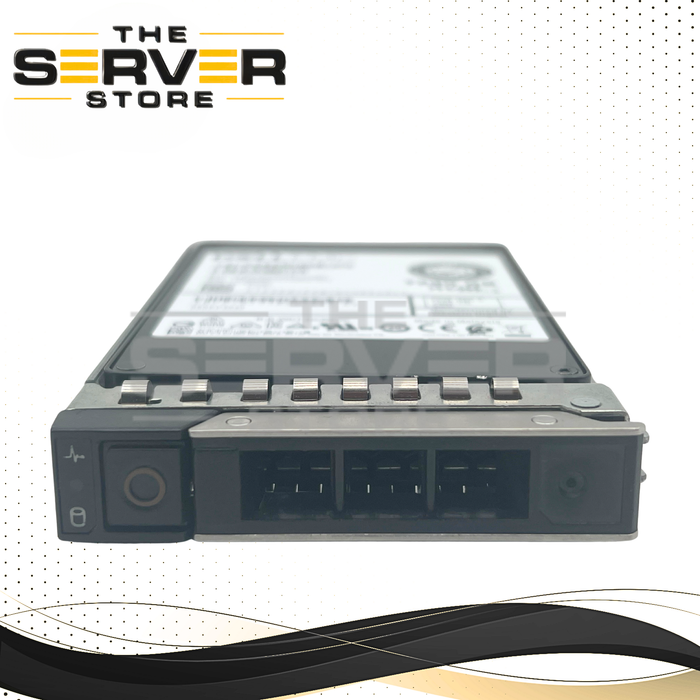

Note: The tray shown in the product photos, or a compatible Dell PowerEdge 15G NVMe tray, will be included with the drive.
