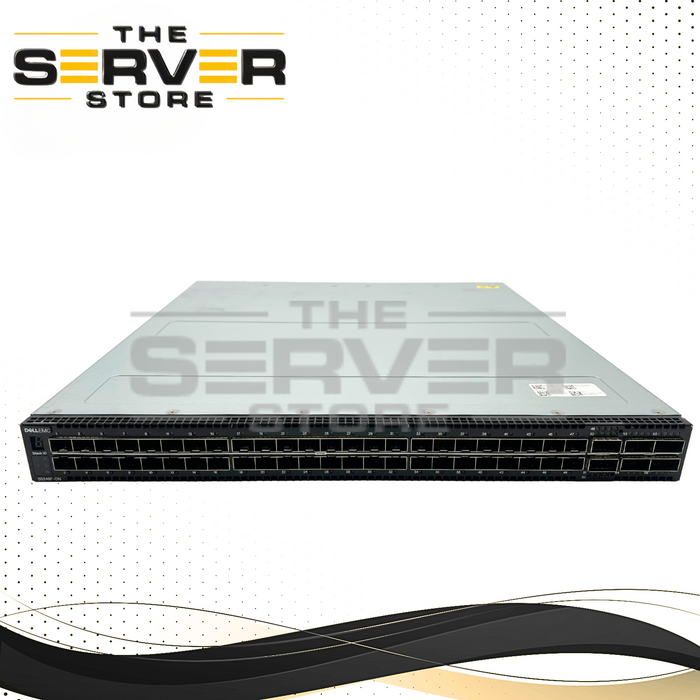

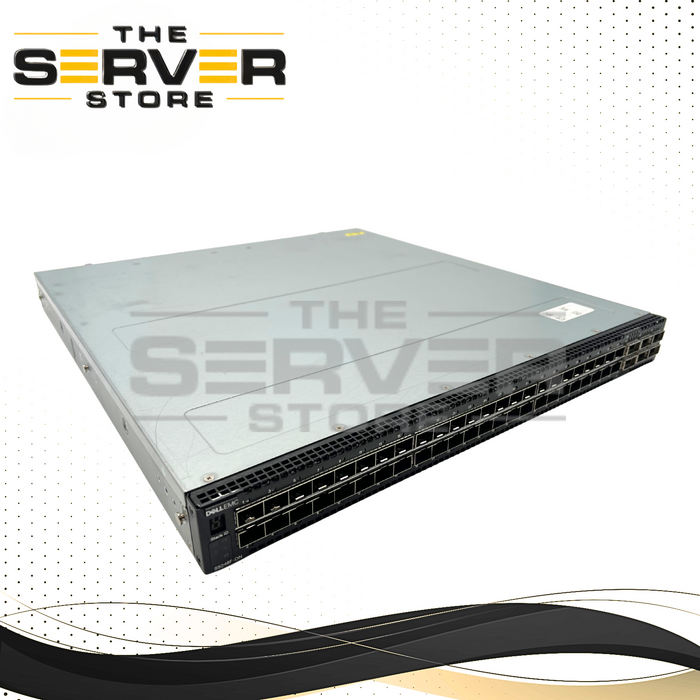

Dell EMC 48x 25GB SFP28 2xQSFP28-DD 4xQSFP28 Switch Airflow (R-F) S5248F-ON-R
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | S5248F-ON (Normal Airflow) |
| Manufacturer | Dell |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Network Switches |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell PowerSwitch S5248F‑ON-R – 48×25GbE + 6×100GbE High-Performance Data Center Switch
Meta Description:
High-performance Dell PowerSwitch S5248F‑ON with 48×25Gb SFP28 ports and 6×100Gb QSFP28 uplinks. Ideal for enterprise, storage, and cloud environments. Layer 2/3, VXLAN, VLT, redundant power and fan options.
Product Description:
The Dell PowerSwitch S5248F‑ON is a feature-rich, high-density 1RU switch designed for modern data centers and enterprise networks. With 48×25GbE SFP28 ports and a flexible uplink configuration including 6×100GbE QSFP28 (2×200GbE via QSFP28-DD), this switch delivers massive throughput, low latency, and open networking support.
Built for top-of-rack, leaf-spine, and storage aggregation applications, the S5248F‑ON supports advanced Layer 2 and Layer 3 features, including VXLAN, VLT, BGP, OSPF, and more. Its open networking capabilities allow you to run Dell SmartFabric OS10, Enterprise SONiC, or other supported network operating systems via ONIE.
Key Features:
- 48× SFP28 25GbE ports
- 2× QSFP28-DD (200GbE) + 4× QSFP28 (100GbE) uplink ports
- Switching capacity: Up to 4.0 Tbps (full duplex)
- Forwarding rate: Up to 1.9 Bpps
- Packet buffer: 32 MB
- Hot-swappable fans with support for normal (red) or reverse (blue) airflow
- Dual hot-swappable AC power supplies
- CPU memory: 16 GB RAM
- Flash storage: 16 GB
- Supports Layer 2 and Layer 3 protocols: VLANs, OSPF, BGP, VXLAN, MLAG/VLT, ACLs, QoS
- ONIE support for open networking OS installation
- 1U rack-mountable form factor
Ideal For:
- Enterprise and cloud data centers
- High-performance compute (HPC) clusters
- VXLAN-based overlays and software-defined networking (SDN)
- Storage and virtualization environments
- Leaf-spine network architectures

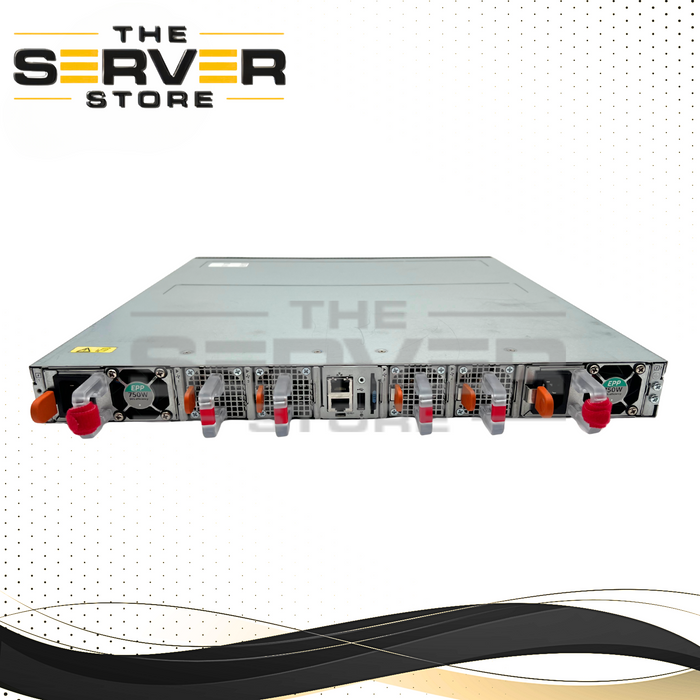

Airflow Options:
- Available with Normal Airflow (Front-to-Back) – red fans
- Or Reverse Airflow (Back-to-Front) – blue fans
Note: Ensure fan and PSU airflow directions match for proper thermal operation.
Note: Power supplies and fans may be sold separately or bundled. Check your configuration before purchasing.
