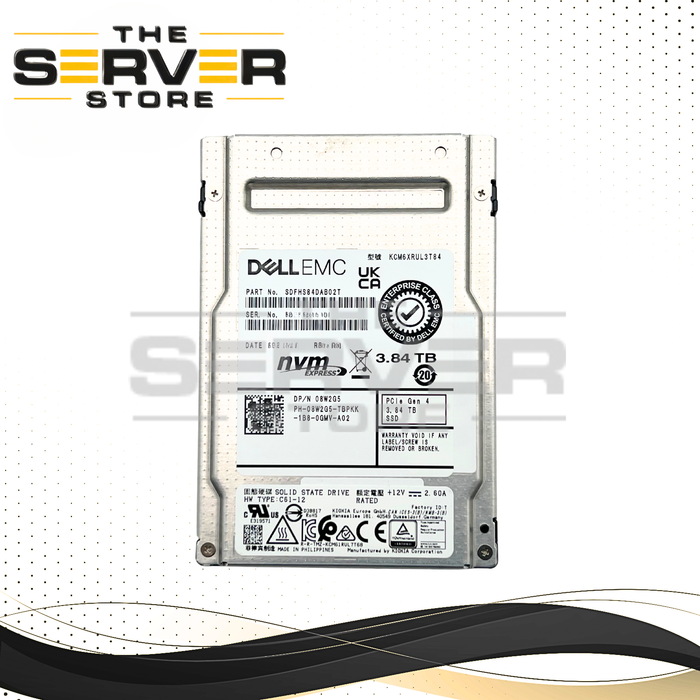

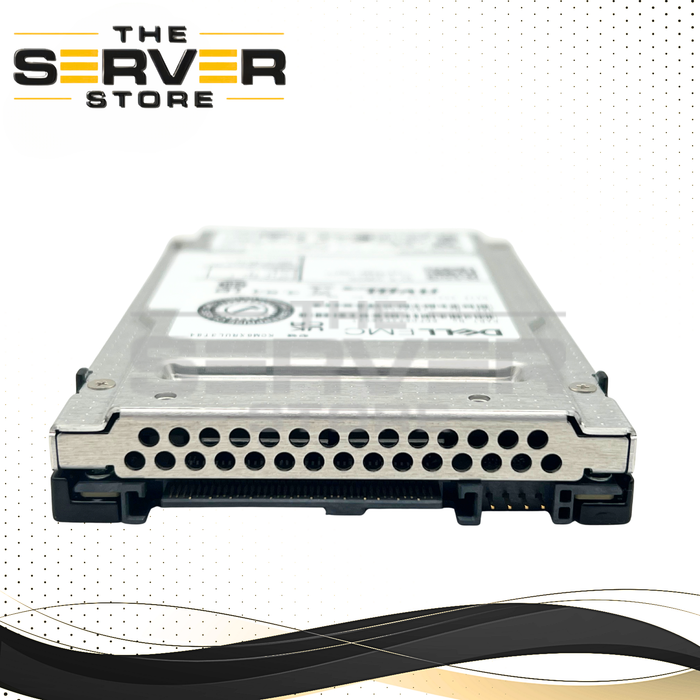

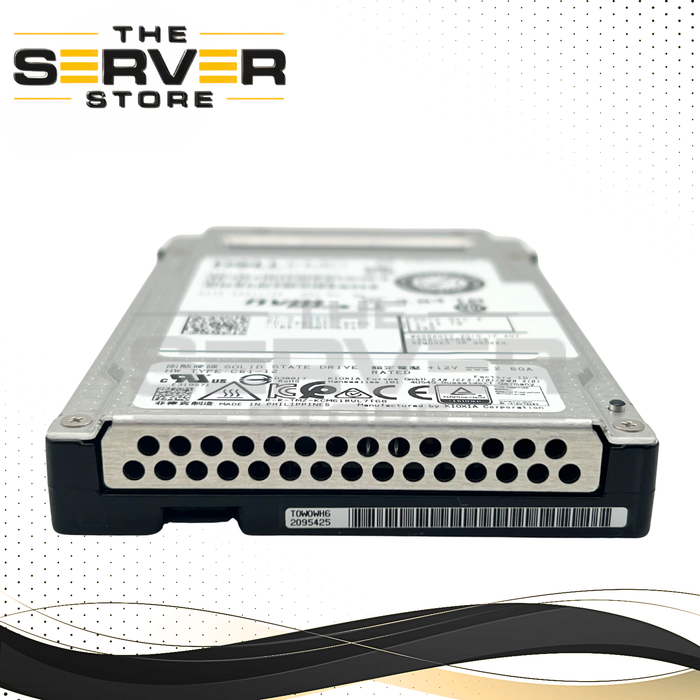

Dell EMC 3.84TB NVMe U.3 PCIe Gen 4.0 x4 RI SFF 2.5" SSD Kioxia CM6-R Series KCM6XRUL3T84 08W2G5 8W2G5 (Tray Not Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell EMC 3.84TB NVMe U.3 PCIe Gen 4.0 x4 RI SFF 2.5" SSD Kioxia CM6-R Series KCM6XRUL3T84 08W2G5 8W2G5 (Tray Not Included)
Enterprise PCIe Gen4 NVMe SSD for High-Performance Data Centers
The Dell EMC 3.84TB NVMe U.3 SSD, powered by the Kioxia CM6-R Series, is a high-performance enterprise solid-state drive designed for read-intensive workloads. Built with advanced 96-Layer BiCS FLASH™ 3D TLC NAND technology and PCIe Gen 4.0 x4 connectivity, this SSD delivers exceptional speed, reliability, and efficiency for modern data center environments.
Featuring NVMe 1.4 architecture and a U.3 (SFF-8639) interface, the Kioxia CM6-R Series provides outstanding performance for virtualization, cloud computing, software-defined storage, content delivery networks, analytics, enterprise databases, and mission-critical business applications. With sequential read speeds reaching up to 6,900 MB/s and random read performance up to 1,400,000 IOPS, this SSD helps reduce latency and maximize application responsiveness.
Engineered for enterprise reliability, the drive offers 1 DWPD endurance, a 2.5 million hour MTTF rating, power-loss protection, end-to-end data path protection, dual-port support, and Sanitize Instant Erase (SIE) functionality for secure data removal. This model is a Read Intensive (RI) drive and is not a Self-Encrypting Drive (SED).
Note: Tray/Caddy Not Included.
Key Features
- 3.84TB Enterprise NVMe SSD
- Dell EMC Part Numbers: 08W2G5 / 8W2G5
- Kioxia CM6-R Enterprise Read Intensive Series
- PCIe Gen 4.0 x4 Interface
- NVMe 1.4 Compliant
- U.3 (SFF-8639) Connector
- 2.5-inch Small Form Factor (SFF)
- 15mm Z-Height
- 96-Layer BiCS FLASH™ 3D TLC NAND
- 1 DWPD Endurance Rating
- Dual-Port Enterprise Architecture
- Power Loss Protection (PLP)
- Sanitize Instant Erase (SIE)
- Hot-Swap Support
- Optimized for Enterprise and Cloud Deployments
Technical Specifications
- Manufacturer: Dell EMC / Kioxia
- Condition: Reconditioned
- Model: KCM6XRUL3T84
- Series: Kioxia CM6-R
- Dell Part Numbers: 08W2G5, 8W2G5
- Storage Capacity: 3.84TB
- Form Factor: 2.5-inch SFF
- Drive Height: 15mm
- Interface: PCIe Gen 4.0 x4
- Protocol: NVMe 1.4
- Connector: U.3 (SFF-8639)
- Workload Type: Read Intensive (RI)
- Endurance: 1 DWPD
- Flash Type: 96-Layer BiCS FLASH™ 3D TLC NAND
- Sequential Read: Up to 6,200 MB/s
- Sequential Write: Up to 2,350 MB/s
- Random Read (4K): Up to 1,000,000 IOPS
- Random Write (4K): Up to 250,000 IOPS
- MTTF: 2,500,000 Hours
- UBER: 1 Sector per 10¹⁷ Bits Read
- Power Loss Protection: Yes
- Sanitize Instant Erase (SIE): Supported
- Dual-Port Support: Yes
- Hot-Swap: Supported
- Maximum Power Consumption: Up to 25W
- Typical Active Power: 19W
- Typical Idle Power: 5W
- Width: 69.85 mm
- Length: 100.45 mm
- Maximum Weight: 130g
Compatible Systems
- Dell PowerEdge 14G Servers (Operates at PCIe Gen3 Speeds)
- Dell PowerEdge 15G Servers
- Dell PowerEdge 16G Servers
- Dell PowerEdge 17G Servers
- Dell PowerVault Storage Systems
- U.3 and Tri-Mode NVMe Enterprise Storage Platforms
Ideal Applications
- Cloud Computing Infrastructure
- Virtualization Platforms
- Software-Defined Storage (SDS)
- Enterprise Databases
- Business-Critical Applications
- Big Data Analytics
- Content Delivery Networks (CDN)
- Data Center Storage Arrays
- High-Performance Computing (HPC)
- Read-Optimized Enterprise Workloads
