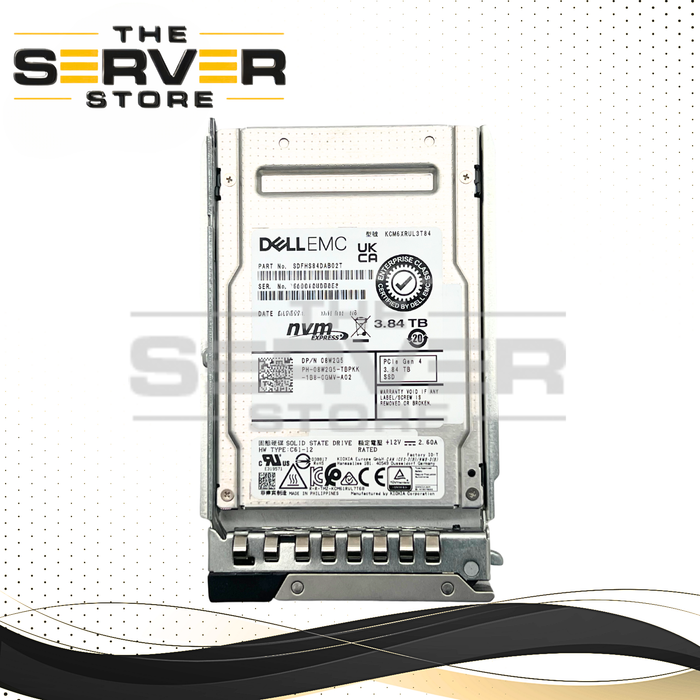

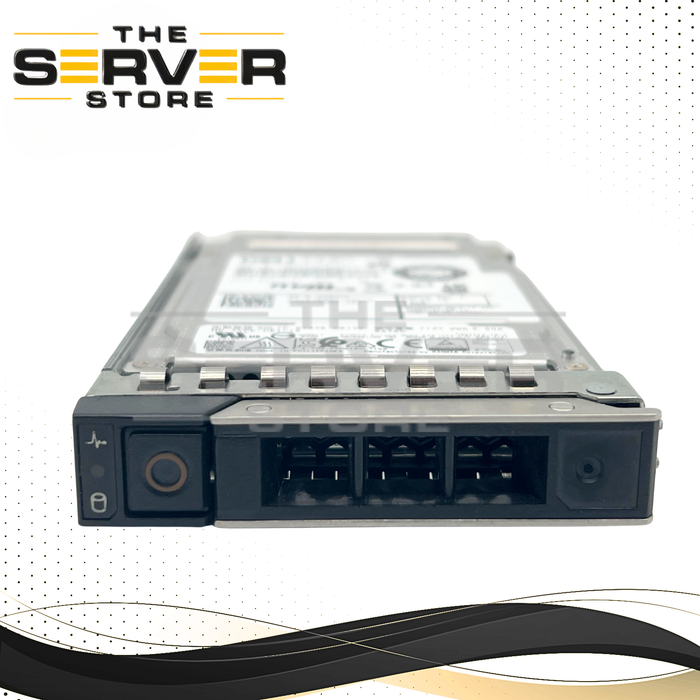

Dell EMC 3.84TB NVMe U.3 PCIe Gen 4.0 x4 RI SFF 2.5" SSD Kioxia CM6-R Series KCM6XRUL3T84 08W2G5 8W2G5 for Dell PowerEdge Server (Dell PowerEdge G15th Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell EMC 3.84TB NVMe U.3 PCIe Gen 4.0 x4 RI SFF 2.5" SSD Kioxia CM6-R Series KCM6XRUL3T84 08W2G5 8W2G5 for Dell PowerEdge Server (Dell PowerEdge G15th Tray Included)
Enterprise PCIe Gen4 NVMe SSD for Dell PowerEdge Servers
Upgrade your Dell PowerEdge server with the Dell EMC 3.84TB NVMe U.3 SSD powered by the Kioxia CM6-R Series. Designed specifically for enterprise and cloud environments, this high-performance solid-state drive combines exceptional PCIe Gen 4.0 throughput, enterprise-grade reliability, and advanced data protection features to support today's most demanding workloads.
Built with 96-Layer BiCS FLASH™ 3D TLC NAND technology and NVMe 1.4 architecture, the KCM6XRUL3T84 delivers outstanding performance for virtualization, software-defined storage, cloud infrastructure, analytics, content delivery networks, database applications, and business-critical workloads. With sequential read speeds up to 6,200 MB/s and random read performance up to 1,000,000 IOPS, this drive helps accelerate data access while minimizing latency.
The CM6-R Series is engineered for read-intensive enterprise applications and features 1 DWPD endurance, dual-port architecture, power-loss protection, end-to-end data path protection, hot-swap capability, and Sanitize Instant Erase (SIE) functionality for secure drive retirement. This drive includes a Dell PowerEdge 15th Generation compatible tray for quick installation into supported Dell PowerEdge servers.
Note: Dell PowerEdge G15th Tray Included.
Key Features
- 3.84TB Enterprise NVMe SSD
- Dell EMC Part Numbers: 08W2G5 / 8W2G5
- Kioxia CM6-R Enterprise Read Intensive Series
- Model: KCM6XRUL3T84
- PCIe Gen 4.0 x4 Interface
- NVMe 1.4 Compliant
- U.3 (SFF-8639) Connector
- 2.5-inch Small Form Factor (SFF)
- 15mm Z-Height
- 96-Layer BiCS FLASH™ 3D TLC NAND
- 1 DWPD Endurance Rating
- Dual-Port Enterprise Architecture
- Power Loss Protection (PLP)
- Sanitize Instant Erase (SIE)
- Hot-Swap Support
- Dell PowerEdge G15th Tray Included
Technical Specifications
- Manufacturer: Dell EMC / Kioxia
- Condition: Reconditioned
- Model: KCM6XRUL3T84
- Series: Kioxia CM6-R
- Dell Part Numbers: 08W2G5, 8W2G5
- Storage Capacity: 3.84TB
- Form Factor: 2.5-inch SFF
- Drive Height: 15mm
- Interface: PCIe Gen 4.0 x4
- Protocol: NVMe 1.4
- Connector: U.3 (SFF-8639)
- Workload Type: Read Intensive (RI)
- Endurance: 1 DWPD
- Flash Type: 96-Layer BiCS FLASH™ 3D TLC NAND
- Sequential Read Speed: Up to 6,200 MB/s
- Sequential Write Speed: Up to 2,350 MB/s
- Random Read (4K): Up to 1,000,000 IOPS
- Random Write (4K): Up to 250,000 IOPS
- MTTF: 2,500,000 Hours
- UBER: 1 Sector per 10¹⁷ Bits Read
- Power Loss Protection: Supported
- Sanitize Instant Erase (SIE): Supported
- Dual-Port Support: Supported
- Hot-Swap: Supported
- Maximum Power Consumption: Up to 25W
- Typical Active Power: 19W
- Typical Idle Power: 5W
- Width: 69.85 mm
- Length: 100.45 mm
- Maximum Weight: 130g
Compatible Dell PowerEdge Servers
- Dell PowerEdge R450
- Dell PowerEdge R550
- Dell PowerEdge R650
- Dell PowerEdge R650xs
- Dell PowerEdge R750
- Dell PowerEdge R750xs
- Dell PowerEdge R750xa
- Dell PowerEdge R7515
- Dell PowerEdge R7525
- Dell PowerEdge T550
- Dell PowerEdge MX750c
- Dell PowerEdge C6520
- And other Dell PowerEdge 15th Generation servers supporting U.3 NVMe drives
Ideal Applications
- Cloud Computing Infrastructure
- Virtualization Platforms
- Software-Defined Storage (SDS)
- Enterprise Databases
- Business-Critical Applications
- Big Data Analytics
- Content Delivery Networks (CDN)
- Data Center Storage Arrays
- High-Performance Computing (HPC)
- Read-Optimized Enterprise Workloads
- Hyper-Converged Infrastructure (HCI)
