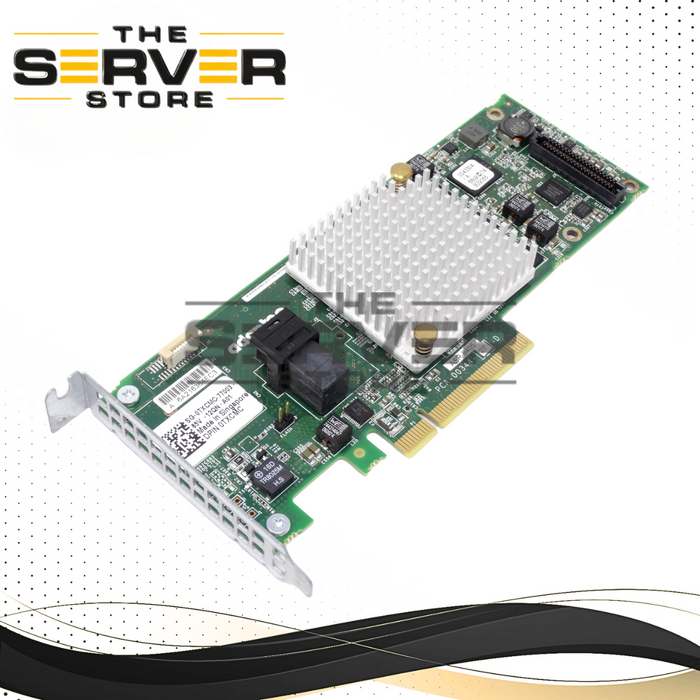

Dell Adaptec ASR-8405 12Gb/s PCIe 3.0 x8 4-Port SAS/SATA RAID Controller Card 1GB Cache 2277600-R 0TXCMC TXCMC
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 0TXCMC / TXCMC |
| Manufacturer | Dell |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Raid Controller Cards |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell Adaptec ASR-8405 12Gb/s 4-Port SAS/SATA RAID Controller Card
Dell P/N: 0TXCMC | TXCMC
Adaptec P/N: ASR-8405 | 2277600-R
Overview
Upgrade your server storage performance with the Dell Adaptec ASR-8405 RAID Controller, a powerful enterprise-class solution designed for demanding business and data center environments. Built with a PCIe 3.0 x8 interface, this controller provides high-speed connectivity for SAS and SATA drives while delivering advanced RAID functionality for enhanced performance, reliability, and data protection. Featuring 12Gb/s SAS support, 4 internal ports, and 1GB onboard cache memory, the ASR-8405 is an excellent choice for virtualization systems, database servers, file storage platforms, backup solutions, and other mission-critical workloads.
The ASR-8405 supports multiple RAID levels, including RAID 0, 1, 1E, 5, 6, 10, 50, and 60, allowing organizations to balance performance, capacity, and redundancy according to their requirements. With support for up to 256 devices when paired with SAS expanders, this controller provides the scalability needed for growing storage environments. Its low-profile design makes it suitable for rackmount servers and space-constrained installations.
Key Features
✔ 12Gb/s SAS and 6Gb/s SATA Support
✔ PCI Express 3.0 x8 Host Interface
✔ 4 Internal SAS/SATA Ports
✔ 1GB Cache Memory
✔ RAID 0, 1, 1E, 5, 6, 10, 50 & 60 Support
✔ Online Capacity Expansion
✔ RAID Level Migration
✔ Hot Spare Support
✔ Hot Plug Drive Capability
✔ S.M.A.R.T. Monitoring Support
✔ Supports Up to 256 Drives with SAS Expanders
✔ Low-Profile Form Factor
Technical Specifications
Manufacturer: Dell / Adaptec
Model: ASR-8405
Dell Part Numbers: 0TXCMC, TXCMC
Manufacturer Part Number: 2277600-R
Host Interface: PCI Express 3.0 x8
Cache Memory: 1GB
Port Count: 4-Port Internal SAS/SATA
Connector Type: Mini SAS HD (SFF-8643)
Data Transfer Rate: Up to 12Gb/s SAS
Supported Drive Types: SAS and SATA Hard Drives & SSDs
Form Factor: Low Profile (MD2)
Supported RAID Levels: 0, 1, 1E, 5, 6, 10, 50, 60
Compatible Part Numbers
- ASR-8405
- 0TXCMC
- TXCMC
- 2277600-R
Ideal Applications
- Enterprise Servers
- Data Centers
- Virtualization Environments
- Database Systems
- File Storage Servers
- Backup and Recovery Solutions
- High-Performance Workstations
Package Includes
- Dell Adaptec ASR-8405 RAID Controller Card
- Low-Profile Bracket (if shown and included)
Why Choose the Dell Adaptec ASR-8405?
The Dell Adaptec ASR-8405 combines enterprise-grade reliability, advanced RAID protection, and high-performance 12Gb/s storage connectivity in a compact low-profile design. Whether you're upgrading an existing server or building a new storage platform, this controller delivers the performance, scalability, and data protection needed for modern business applications.
