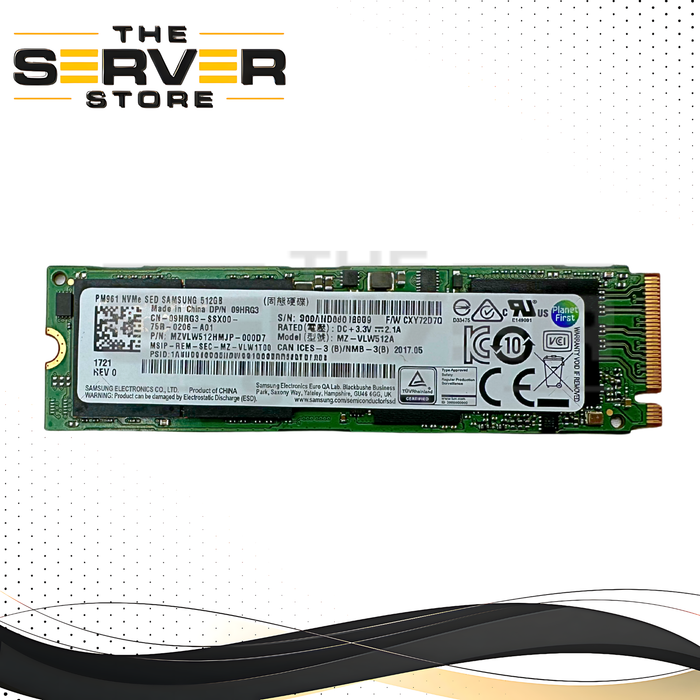

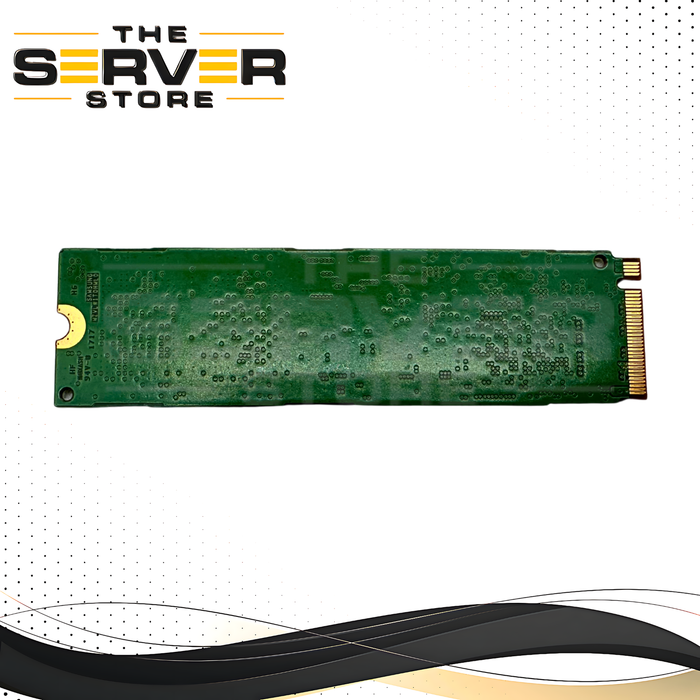

Dell 512GB NVMe 2280 M.2 G3 x4 SSD Samsung PM961 Series 09HRG3 9HRG3
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 09HRG3 |
| Manufacturer | Dell |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Samsung PM961 Series |
| Form Factor | 2280 M.2 |
| Interface | PCIe Gen 3 x4 NVMe |
| External Interfaces | |
| Storage Capacity | 512GB |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell 512GB NVMe 2280 M.2 G3 x4 SSD Samsung PM961 Series 09HRG3
Unlock faster boot times, rapid file transfers, and improved system responsiveness with the Dell 512GB NVMe 2280 M.2 G3 x4 SSD Samsung PM961 Series 09HRG3. Built with Samsung's advanced Polaris controller and reliable 3D TLC V-NAND technology, this high-performance SSD delivers excellent speed and efficiency for business workstations, laptops, and desktop systems that support PCIe NVMe storage.
Featuring a compact M.2 2280 form factor and PCIe Gen 3 x4 NVMe interface, the PM961 is designed to handle demanding applications, multitasking, content creation, and everyday computing with ease. Whether you're replacing an aging drive or upgrading for better performance, this Dell-branded Samsung SSD offers a dependable storage solution backed by enterprise-class reliability.
Technical Specifications
- Model: Samsung PM961 Series
- Dell Part Number: 09HRG3 / 9HRG3
- Capacity: 512GB
- Form Factor: M.2 2280 (22mm x 80mm)
- Interface: PCIe Gen 3 x4 NVMe
- Protocol: NVMe 1.2
- Controller: Samsung Polaris (S4LP077X01-8030)
- NAND Type: Samsung V-NAND 3D TLC
- Cache: Onboard DRAM with approximately 6GB pseudo-SLC cache
- Sequential Read: Up to 3,100 MB/s
- Sequential Write: Up to 1,700 MB/s
- Random Read: Up to 330,000 IOPS
- Random Write: Up to 300,000 IOPS
- MTBF: 1,500,000 Hours
- Operating Temperature: 0°C to 70°C
- Security: Opal 2.0 Self-Encrypting Drive Support
Key Features
✅ 512GB Storage Capacity for operating systems, applications, documents, and media files
✅ PCIe Gen 3 x4 NVMe Interface provides significantly faster performance than traditional SATA SSDs
✅ Sequential Read Speeds Up to 3,100 MB/s for quick startups and faster application loading
✅ Sequential Write Speeds Up to 1,700 MB/s for efficient data transfers and productivity workflows
✅ Up to 330,000 Random Read IOPS for responsive multitasking performance
✅ Up to 300,000 Random Write IOPS for smooth handling of demanding workloads
✅ Samsung Polaris Controller delivers optimized speed, reliability, and low latency
✅ Samsung 3D TLC V-NAND Flash Memory balances performance, endurance, and power efficiency
✅ Integrated DRAM Cache & Pseudo-SLC Buffer help accelerate write operations and improve responsiveness
✅ Opal 2.0 Self-Encryption Support enhances data security for business environments
✅ M.2 2280 Single-Sided Design allows installation in a wide range of compatible systems
✅ Advanced Power Management Features including APST and L1.2 power-saving modes
✅ 1.5 Million Hour MTBF Rating for dependable long-term operation
Compatibility
Compatible with laptops, desktops, and workstations that support M.2 2280 PCIe NVMe SSDs, including many Dell Precision, Latitude, OptiPlex, and PowerEdge systems.
Important: This drive is an NVMe PCIe SSD and requires an NVMe-compatible M.2 slot. It is not compatible with SATA-only M.2 interfaces.
Upgrade your system with the Dell 09HRG3 Samsung PM961 512GB NVMe SSD and enjoy fast storage performance, enterprise-grade reliability, and efficient operation in a compact M.2 form factor.
