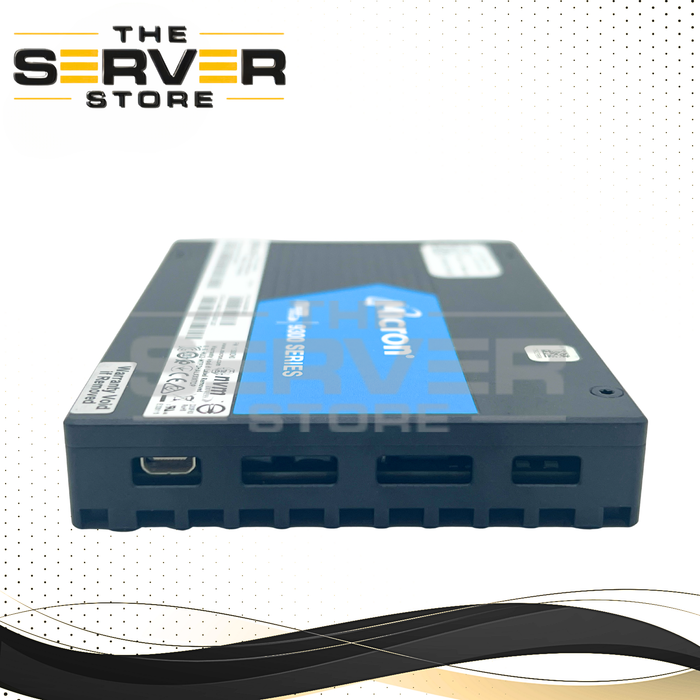

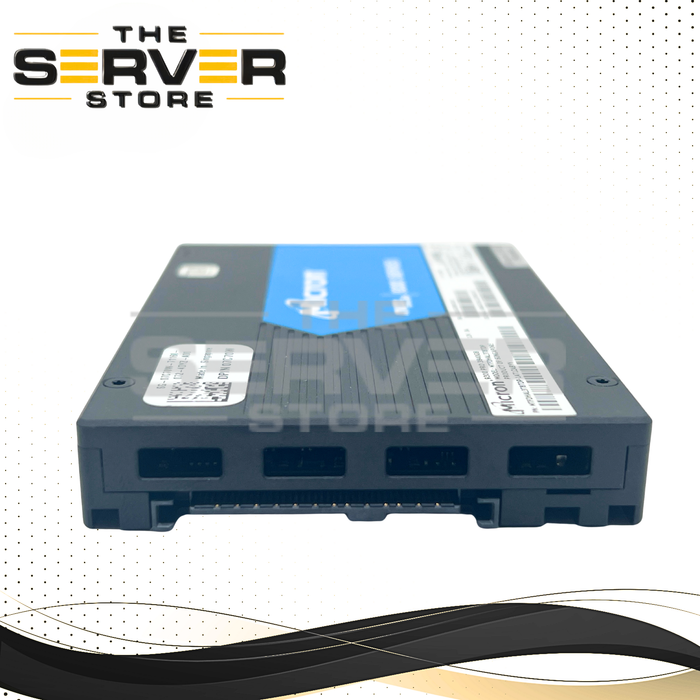

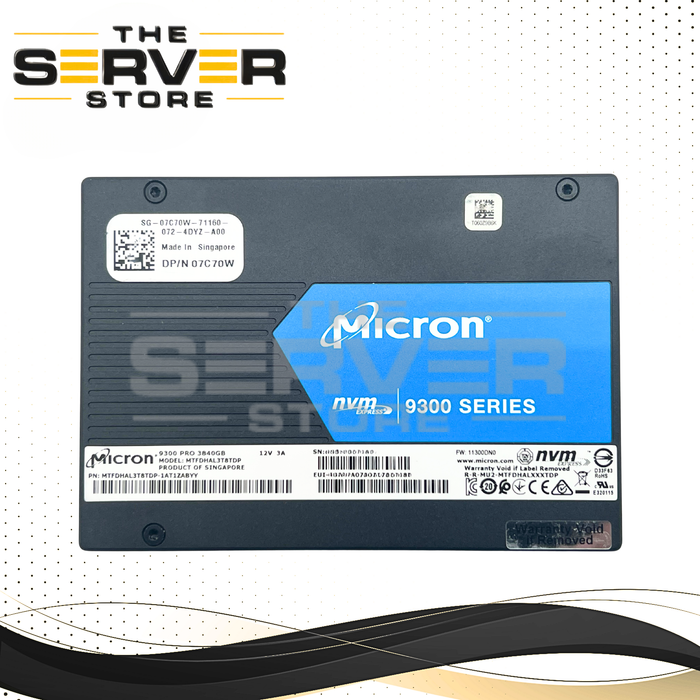

Dell 3.84TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" SSD Micron 9300 Series MTFDHAL3T8TDP 07C70W 7C70W
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 07C70W / 7C70W |
| Manufacturer | Dell / Micron |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Micron 9300 Series MTFDHAL3T8TDP |
| Form Factor | SFF 2.5" SSD (Tray Not Included) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell 3.84TB NVMe U.2 PCIe Gen 3.0 x4 SFF 2.5" SSD Micron 9300 Pro Series MTFDHAL3T8TDP 07C70W 7C70W (Tray Not Included)
Upgrade your enterprise storage infrastructure with the Dell 3.84TB Micron 9300 Pro NVMe SSD, engineered for high-performance data center, virtualization, cloud computing, database, AI/ML, and enterprise applications. Featuring the proven Micron 9300 Pro Series architecture, this drive delivers exceptional throughput, ultra-low latency, and enterprise-class reliability for demanding workloads.
Built with 64-Layer 3D TLC NAND Flash and a PCIe Gen 3.0 x4 NVMe interface, this SSD provides significantly faster performance than traditional SAS and SATA SSDs while maintaining exceptional endurance and data protection features.
Key Features
- Dell Part Numbers: 07C70W, 7C70W
- Micron Model: MTFDHAL3T8TDP
- Micron 9300 Pro Enterprise Series
- 3.84TB Storage Capacity
- U.2 2.5-inch Small Form Factor (15mm)
- PCIe Gen 3.0 x4 Interface
- NVMe 1.2 Protocol
- Read Intensive (RI) Workload Design
- 64-Layer 3D TLC NAND Flash
- Enterprise-Class Reliability
- Power Loss Protection (PLP)
- End-to-End Data Path Protection
- Cryptographic Erase Support
- Secure Signed Firmware
- Multi-Namespace Support
- Hot-Plug Capable
Performance Specifications
- Sequential Read Speed: Up to 3,500 MB/s
- Sequential Write Speed: Up to 3,100 MB/s
- Random Read Performance: Up to 835,000 IOPS
- Random Write Performance: Up to 105,000 IOPS
- Average Read Latency: 86µs
- Average Write Latency: 11µs
Reliability & Endurance
- Workload Type: Read Intensive (RI)
- Endurance Rating: Up to 8.4 PB TBW
- Drive Writes Per Day (DWPD): 1.0
- MTBF: 2 Million Hours
- Enterprise Error Correction
- UBER: Less than 1 sector per 10¹⁷ bits read
- Dynamic and Static Wear Leveling
Compatibility
Compatible with servers and storage systems that support 2.5-inch U.2 NVMe PCIe SSDs and feature NVMe-enabled backplanes.
Dell PowerEdge
- R640
- R650
- R740
- R740xd
- R750
- R750xa
- R840
- R940
- R6525
- R7525
- C6420
- MX740c
- MX840c
HPE ProLiant
- DL360 Gen10 / Gen11
- DL380 Gen10 / Gen11
- DL325 Gen10 Plus
- DL385 Gen10 Plus
- Apollo Series
Lenovo ThinkSystem
- SR630
- SR650
- SR635
- SR645
- SR655
- SR665
- ST650
- SN550
Cisco UCS
- C220 M5 / M6
- C240 M5 / M6
- B200 M5 / M6
Supermicro
- Ultra Series
- Hyper Series
- TwinPro Series
- 1029 Series
- 2029 Series
- 5019 Series
- 6029 Series
Additional Platforms
- Gigabyte NVMe Servers
- Intel Server Systems
- VMware vSAN Deployments
- Microsoft Storage Spaces Direct (S2D)
- Ceph Storage Clusters
- NVMe-Capable JBOD Systems
Important: This drive requires an NVMe-enabled U.2 backplane or direct NVMe PCIe connectivity. It is not compatible with SATA-only or SAS-only drive bays.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Micron (Dell OEM) |
| Series | 9300 Pro |
| Model Number | MTFDHAL3T8TDP |
| Dell Part Number | 07C70W, 7C70W |
| Capacity | 3.84TB |
| Form Factor | 2.5" SFF U.2 |
| Thickness | 15mm |
| Interface | PCIe Gen 3.0 x4 |
| Protocol | NVMe 1.2 |
| NAND Type | 64-Layer 3D TLC |
| Power Loss Protection | Yes |
| End-to-End Protection | Yes |
| MTBF | 2 Million Hours |
| Workload Rating | Read Intensive |
Package Contents
- Dell 3.84TB Micron 9300 Pro NVMe SSD
- Model: MTFDHAL3T8TDP
- Dell P/N: 07C70W / 7C70W
- Tray Not Included
Ideal for enterprise servers, virtualization environments, database workloads, cloud infrastructure, AI/ML applications, VMware vSAN, Microsoft S2D, and high-performance storage deployments requiring fast, reliable NVMe storage.
