Dell 2x M.2 SATA 2280 Slot BOSS-S1 Raid Controller Modular Card 0853XN 853XN
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 0853XN 853XN |
| Manufacturer | Dell |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | RAID, HBA, & Storage Controllers |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

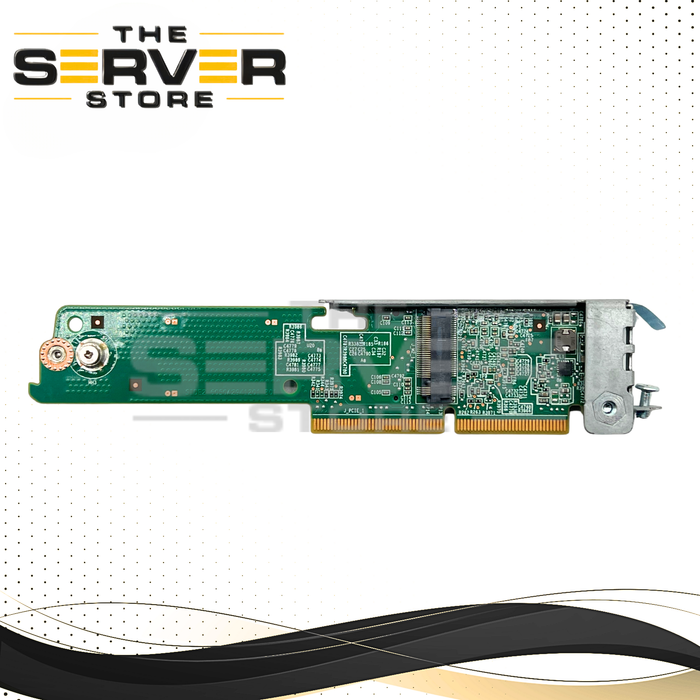

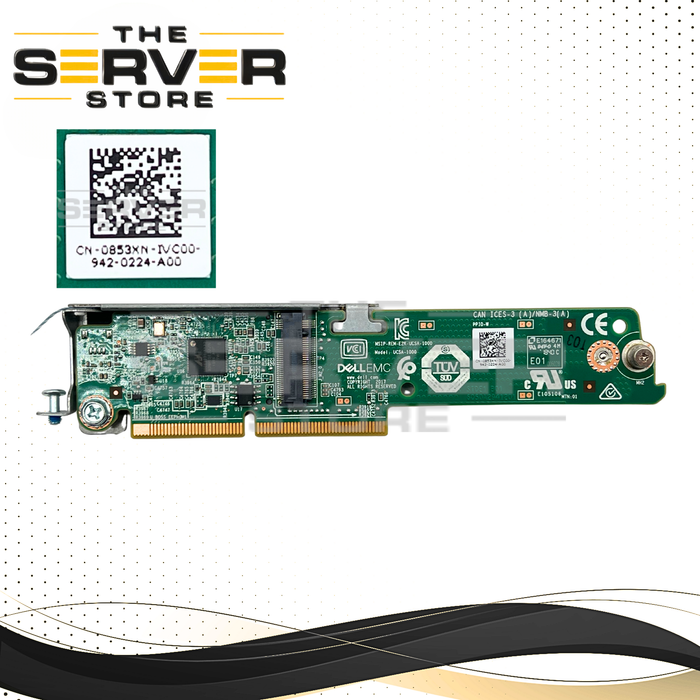

Dell 2x M.2 SATA 2280 Slot BOSS-S1 RAID Controller Modular Card
0853XN / 853XN
The Dell BOSS-S1 (Boot Optimized Storage Solution) Modular Card – 0853XN / 853XN is a dedicated RAID controller designed to host a server operating system on M.2 SATA SSDs. It provides a simple, cost-effective, and reliable boot solution for Dell PowerEdge servers by separating OS storage from primary data drives.
⚠️ The BOSS-S1 supports M.2 SATA only and is not compatible with NVMe SSDs.
Product Overview
-
Device Type: RAID Controller / Adapter Card
-
Primary Purpose: Operating System Boot Storage
-
Interface: PCIe Gen 2.0 x8 (x8 physical connector)
-
Form Factor:
-
Low-profile PCIe card
-
Full-height PCIe card
-
Modular card (for supported blade servers)
-
Drive Support
-
Supported Drives: Up to 2 × M.2 SATA SSDs
-
M.2 Form Factor: 2280 (22mm × 80mm)
-
Interface Speed: SATA 6 Gbps
-
Validated Drives: Dell enterprise-class, read-intensive M.2 SATA SSDs (commonly 240GB or 480GB)
RAID & Storage Configuration
-
Supported RAID Level: RAID 1 (Mirroring) only
-
Non-RAID Mode: Two independent disks supported
-
Maximum Virtual Disks: 1
-
Cache Policy: Write-through only (no battery backup or non-volatile cache)
Management & Configuration
-
BIOS Configuration Utility (Ctrl-M)
-
iDRAC
-
OpenManage Server Administrator
Server Compatibility
The Dell BOSS-S1 (853XN) is compatible with select Dell PowerEdge servers (primarily 14th Generation and newer), including but not limited to:
Rack Servers
R240, R340, R440, R540
R640, R740, R740xd, R940
R6415, R7415, R7425
R6515, R6525, R7515, R7525
C4140, C6420, C6525
Tower Servers
T140, T340, T440, T640
Modular / Blade Servers
FC640, M640
Always confirm server BIOS and backplane support before installation.
Key Features
-
Dedicated OS boot controller
-
RAID 1 redundancy for increased reliability
-
PCIe-based boot solution
-
Enterprise integration with Dell server management tools
-
Designed specifically for Dell PowerEdge infrastructure
Ideal Use Cases
-
Virtualization hosts
-
Enterprise server deployments
-
Data center environments requiring redundant OS boot media
-
Infrastructure where OS and data storage must remain isolated
