Dell 1TB SATA 6G 2280 M.2 SSD Lite-On CV1 Series FCCXG
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

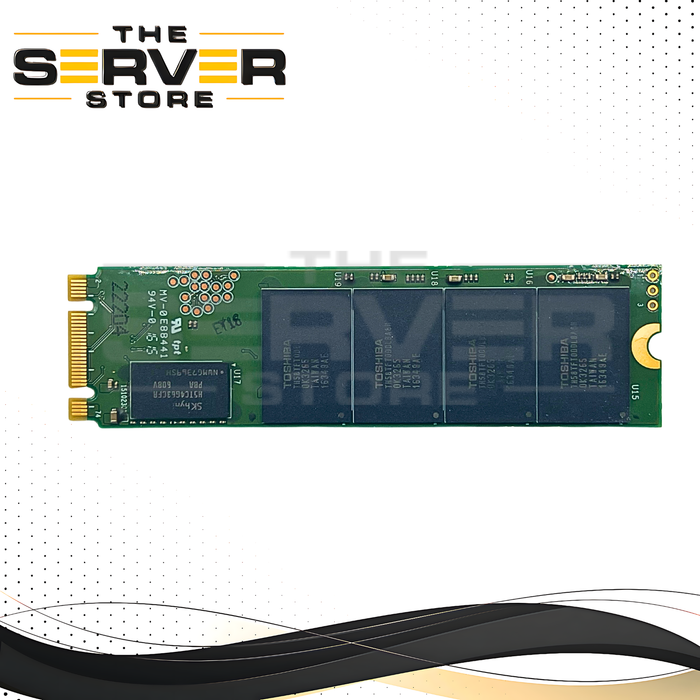

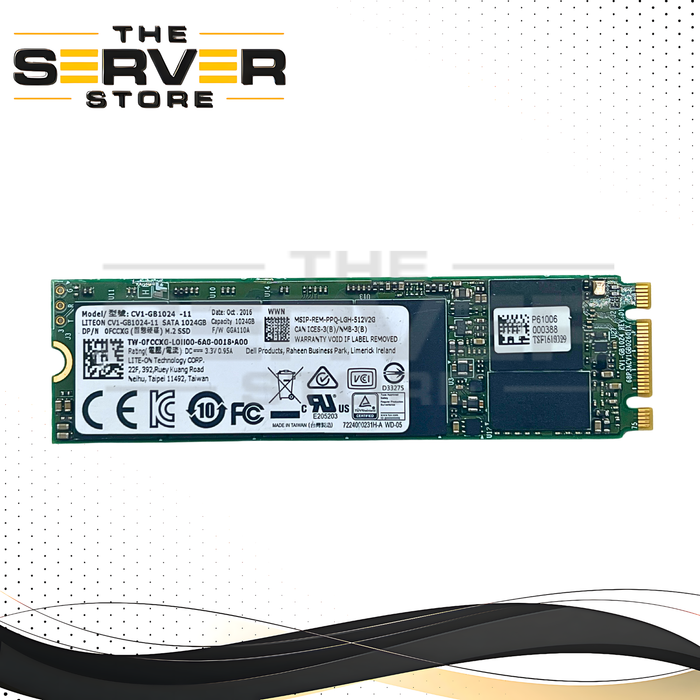

Dell 1TB SATA III M.2 2280 SSD Lite-On CV1 Series (0FCCXG / FCCXG)
Upgrade your system with dependable solid-state performance using the Dell 1TB M.2 SATA SSD based on the trusted Lite-On CV1 Series platform. Designed for compatible laptops, desktops, and workstations, this SSD combines a generous 1TB capacity with fast SATA III performance to deliver quicker boot times, responsive multitasking, and efficient everyday computing.
Built in the compact M.2 2280 form factor, the Lite-On CV1 offers an excellent storage solution for systems that support SATA-based M.2 drives. With read speeds reaching up to 560 MB/s and support for advanced features such as NCQ and TRIM, this drive helps improve overall system responsiveness while maintaining reliable long-term operation.
Key Features
- 1TB Storage Capacity
- M.2 2280 SATA Form Factor
- SATA III 6Gb/s Interface
- Lite-On CV1 Series SSD
- Up to 560 MB/s Read Speeds
- Up to 520 MB/s Write Speeds
- Up to 85,000 Random Read IOPS
- Low Power Consumption Design
- TRIM & NCQ Support
- Ideal for laptop and desktop storage upgrades
Drive Specifications
- Dell Part Number: 0FCCXG / FCCXG
- Manufacturer Platform: Lite-On CV1 Series
- Capacity: 1TB (1,024GB)
- Interface: SATA III 6.0Gb/s
- Protocol: AHCI / SATA
- NAND Technology: MLC or 3D TLC NAND (varies by production revision)
- Form Factor: M.2 2280
- Keying: B+M Key
Performance Specifications
- Sequential Read Speed: Up to 560 MB/s
- Sequential Write Speed: Up to 520 MB/s
- Random Read Performance: Up to 85,000 IOPS
- Random Write Performance: Up to 75,000 IOPS
- Fast operating system boot times
- Improved application loading and file transfers
Reliability & Endurance
- MTBF: 1,500,000 Hours
- Endurance Rating: Approximately 300TBW to 400TBW
- Shock Resistance: 1,500G at 0.5ms
- Solid-state design with no moving parts
- Built for dependable long-term storage performance
Advanced Features
- Native Command Queuing (NCQ)
- TRIM Command Support
- DevSleep Power Saving Technology
- Enhanced drive responsiveness and efficiency
- Optimized storage management and longevity
Power Efficiency
- Operating Voltage: 3.3V (±5%)
- Active Power Consumption: Approximately 2.0W to 2.5W
- Standby Power: Less than 0.5W
- Designed to help maximize notebook battery life
- Low-heat operation for compact systems
Physical Specifications
- Form Factor: M.2 2280
- Connector Type: B+M Key
- Dimensions: 22mm x 80mm
- Thickness: Approximately 2.3mm
- Weight: Less than 10g
- Single-sided design for broad system compatibility
Compatibility Notice
Important: This is a SATA-based M.2 SSD and not an NVMe drive. It requires a motherboard or system that supports M.2 SATA (AHCI) devices. It may not function in M.2 slots that support NVMe/PCIe drives exclusively.
Ideal Applications
- Laptop Storage Upgrades
- Desktop PC Performance Improvements
- Business Workstations
- Operating System Drives
- Productivity Applications
- Media Storage
- Home Office Systems
- General Computing Environments
Why Choose the Dell FCCXG Lite-On CV1 SSD?
The Dell FCCXG Lite-On CV1 1TB SSD offers a practical blend of capacity, performance, and reliability for systems that utilize SATA-based M.2 storage. With fast SATA III speeds, low power consumption, robust endurance, and a compact M.2 2280 form factor, it provides an excellent upgrade path for users looking to improve system responsiveness while expanding storage capacity.
