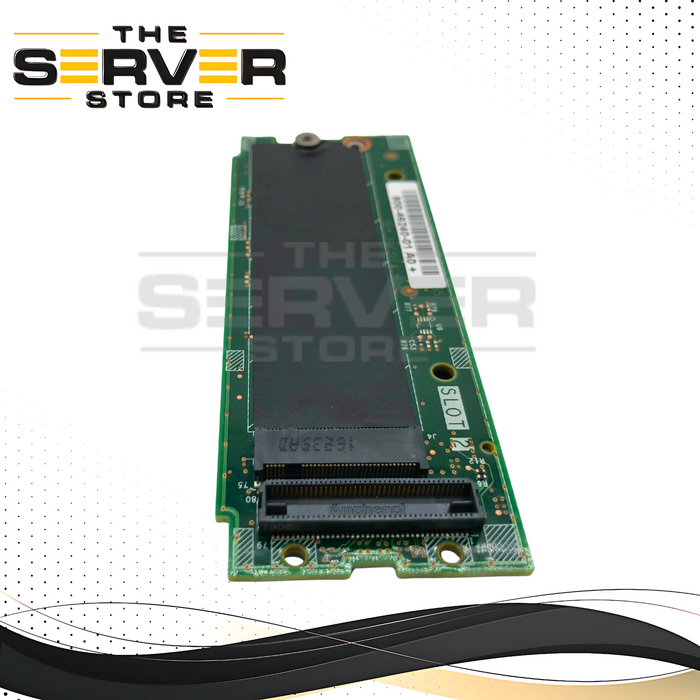

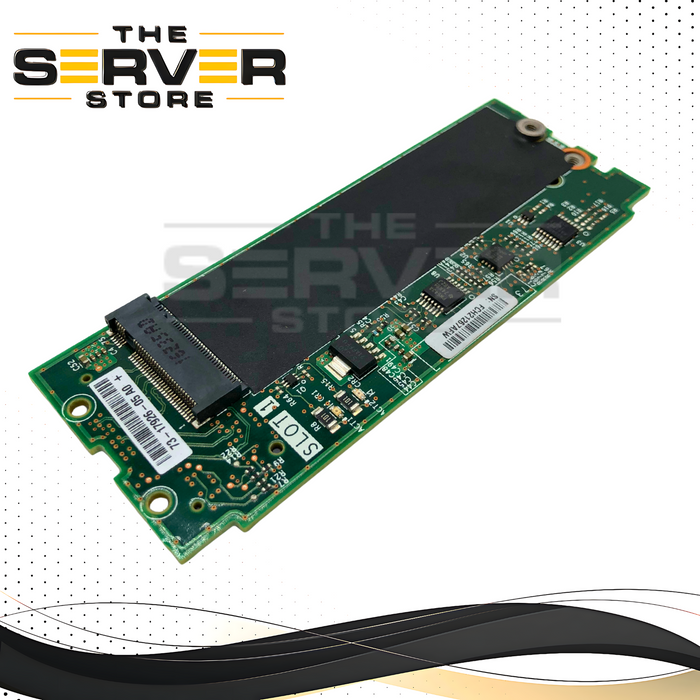

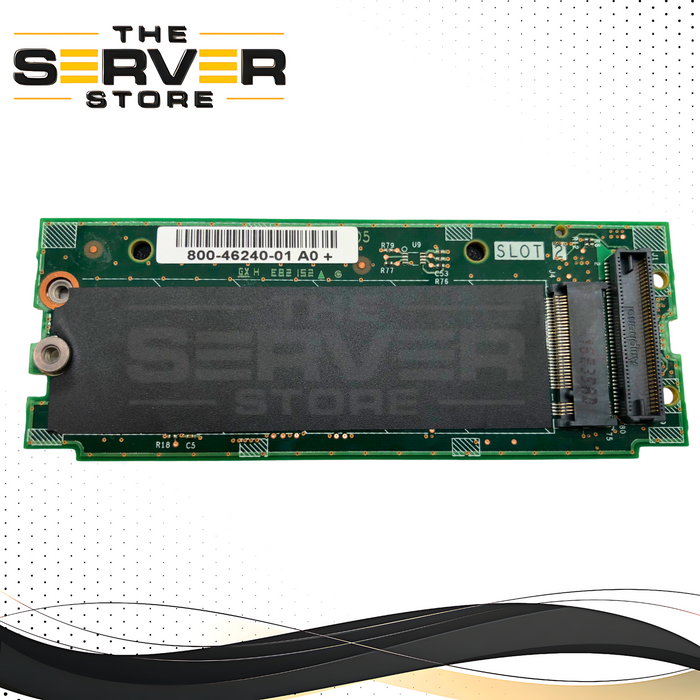

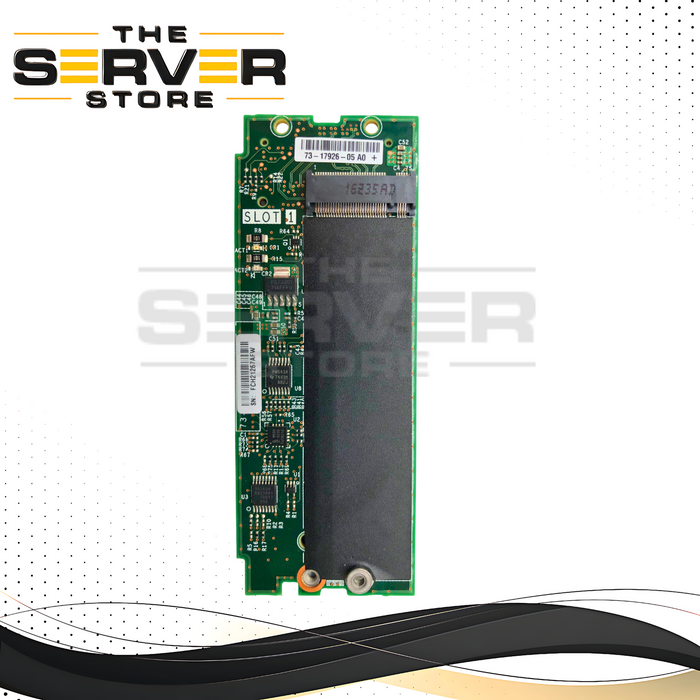

Cisco UCS-MSTOR-M2 Dual M.2 SATA SSD Carrier Adapter 73-17926-05 800-46240-01
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$284.99
$284.99
-
$284.99
Current price
$284.99
SKU 800-46240-01
Availability:
50+ in stock
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 800-46240-01 / 73-17926-05 |
| Manufacturer | Cisco |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Other Servers Part |
| Model | UCS-MSTOR-M2 (Card Only) |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Cisco UCS-MSTOR-M2 Dual M.2 SATA SSD Carrier Adapter
Product Identification
| Field | Value |
|---|---|
| Product Name | Cisco UCS-MSTOR-M2 Dual M.2 SATA SSD Carrier Adapter |
| Cisco PID | UCS-MSTOR-M2 |
| Top-Level Part Number | 800-46240-01 |
| Manufacturing Part Number | 73-17926-05 |
| Device Type | Cisco UCS Mini-Storage Carrier for M.2 SSDs |
| Manufacturer | Cisco Systems |
Product Overview
The Cisco UCS-MSTOR-M2 is an internal dual M.2 storage carrier designed for Cisco UCS M5 server platforms. It provides a dedicated boot storage solution by supporting up to two M.2 SATA SSDs in a compact motherboard-mounted adapter. The module is commonly used for operating system and hypervisor installations while preserving front drive bays for application data.
Storage Specifications
| Feature | Specification |
|---|---|
| Drive Type | M.2 SATA SSD |
| Interface | SATA III 6 Gb/s |
| Supported Form Factor | M.2 2280 (80 mm) |
| Drive Capacity Support | Up to 2 SSDs |
| Drive Layout | One M.2 SSD installed on each side of carrier |
| NVMe Support | No |
| SAS Support | No |
| Mixed Capacity Drives | Not Supported |
| Identical SSD Requirement | Yes |
RAID Capabilities
| Feature | Specification |
|---|---|
| Hardware RAID Controller | None |
| RAID Support | RAID 0, RAID 1 (software/platform dependent) |
| RAID Management | Server PCH or operating system |
| Primary Use | OS boot and hypervisor storage |
Compatible Cisco SSDs
- UCS-M2-240G (240GB M.2 SATA SSD)
- UCS-M2-480G (480GB M.2 SATA SSD)
- UCS-M2-960G (960GB M.2 SATA SSD)
Compatible Cisco UCS Servers
- Cisco UCS B200 M5 Blade Server
- Cisco UCS C220 M5 Rack Server (SFF and LFF)
- Cisco UCS C240 M5 Rack Server (SFF and LFF)
Physical Installation
| Feature | Specification |
|---|---|
| Connection Type | Cisco proprietary mini-storage connector |
| Installation Location | Directly on supported server motherboard |
| Mounting Style | Internal motherboard-mounted carrier |
Key Features
- Supports two M.2 2280 SATA SSDs
- Dedicated boot-storage solution
- Preserves front storage bays for data drives
- Supports software RAID 0 and RAID 1
- Designed specifically for Cisco UCS M5 server platforms
- Compact dual-sided SSD carrier design
Associated Part Numbers:
- UCS-MSTOR-M2 (Product ID)
- 73-17926-05 (Manufacturing Part Number)
- 800-46240-01 (Assembly/Top-Level Part Number)
