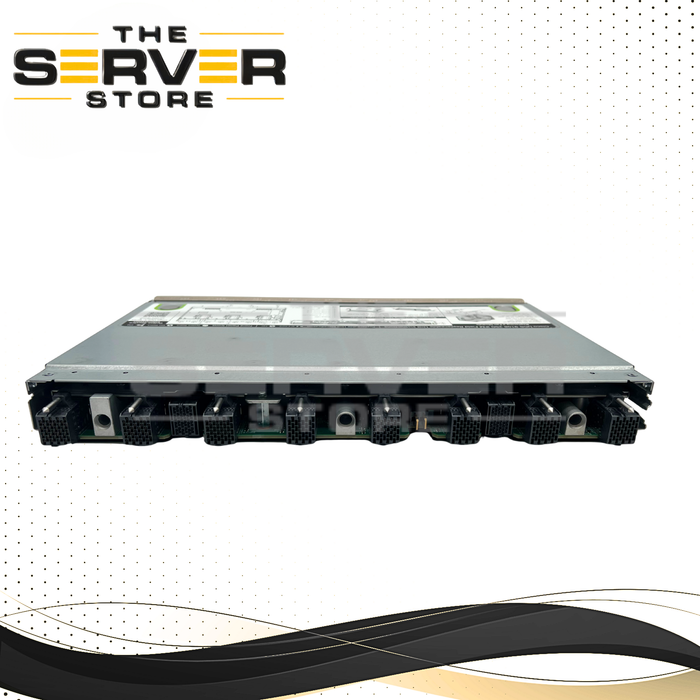

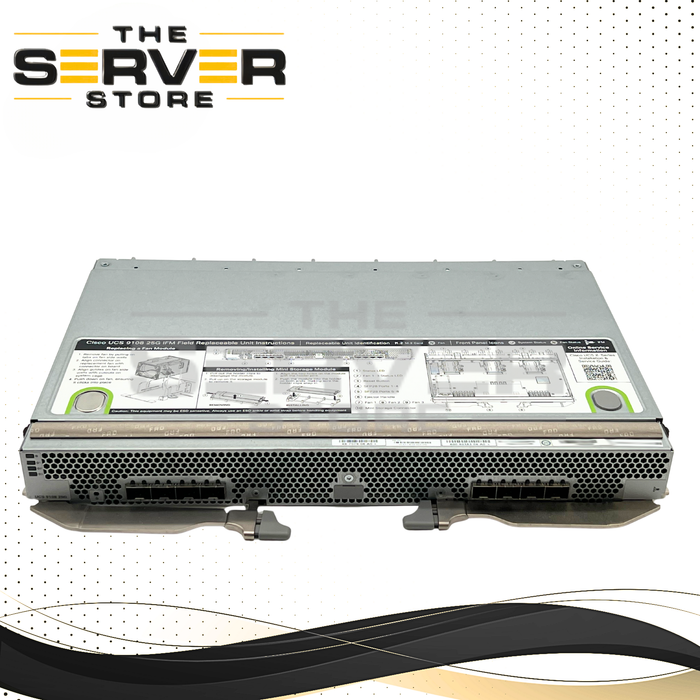

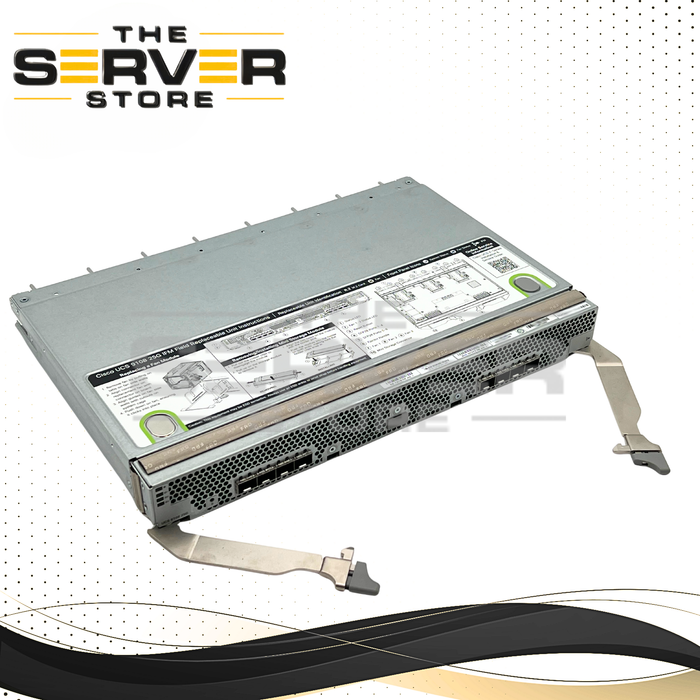

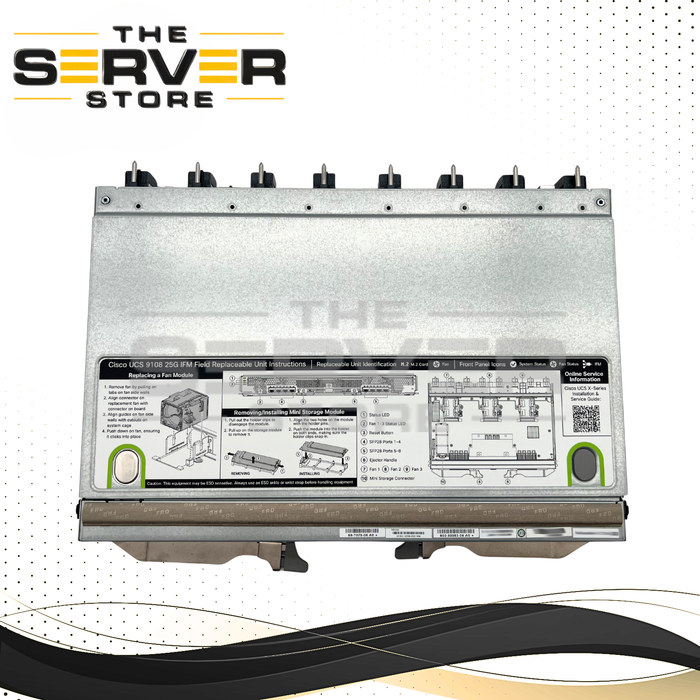

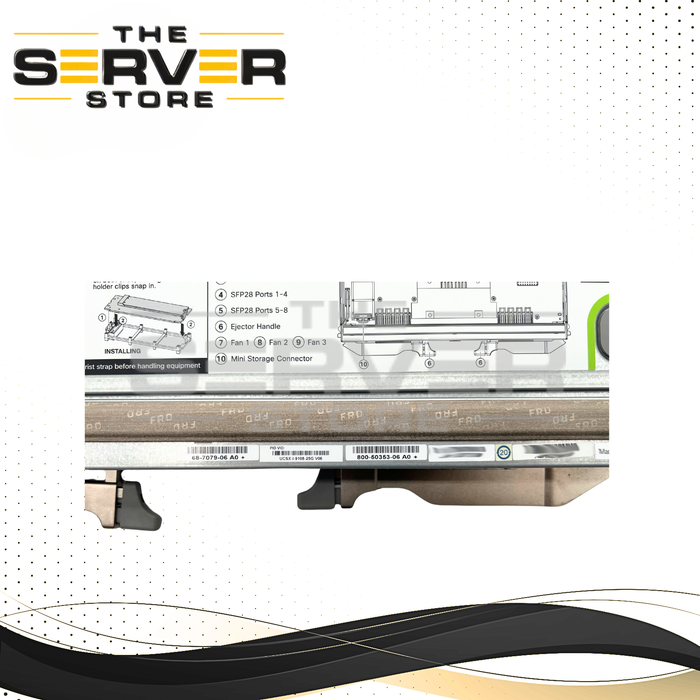

Cisco UCS 9108 25G Intelligent Fabric Module IFM for UCS X9508 UCSX-I-9108-25G
The Cisco UCSX-I-9108-25G is a high-performance 25G Intelligent Fabric Module engineered for the Cisco UCS X9508 chassis. Designed to deliver fast, deterministic, and scalable connectivity for modern data centers, this IFM provides eight external 25Gb Ethernet SFP28 ports and supports up to 800 Gb/s of total server bandwidth. Built to consolidate LAN and SAN traffic over a unified fabric, it helps reduce cabling, simplify infrastructure, and increase operational efficiency.
With onboard Intel Atom processing, integrated DDR4 memory, and advanced support for Ethernet and FCoE protocols, this module delivers low-latency performance ideal for demanding enterprise workloads. The UCS 9108 IFM operates as an extension of Cisco fabric interconnects and is managed through Cisco Intersight, streamlining administration without requiring dedicated chassis-management modules. For system reliability, IFMs are deployed in pairs within the X9508 chassis to ensure redundancy and seamless failover.
Perfect for scaling multi-chassis UCS environments, this Intelligent Fabric Module provides the performance, bandwidth, and resiliency needed to support next-generation servers and high-density application architectures.
Specifications
| Attribute | Detail |
|---|---|
| Device Type | Intelligent Fabric Module (IFM), plug-in expansion module |
| Form Factor | Rack-mounted module for UCS X9508 chassis |
| External Ports | 8 x 25Gb Ethernet SFP28 |
| Internal Connectivity | 32 internal 25Gb lanes (4 lanes per compute node) |
| Total Server Bandwidth | 800 Gb/s |
| Network Data Path Bandwidth | 200 Gb/s |
| Protocols Supported | 10GbE, 25GbE, 1GbE, FCoE, PFC, QoS |
| Standards | 25GBase-X |
| CPU | Intel Atom C3558, 4 cores, 2.1 GHz |
| Memory | Up to 8GB DDR4 at 2133 MHz |
| Power Input | DC 54V (supplied by chassis) |
| Power Consumption | 237W |
| Cooling | Front-to-back airflow, three dual-rotor fans |
| Dimensions | 14.9 x 11.8 x 1.7 in (378.46 x 299.72 x 43.18 mm) |
| Weight | 8.42 lbs (3.82 kg) |
| Operating Temp | 10°C to 40°C |
| Operating Humidity | 5% – 95% non-condensing |
| Compatibility | Cisco UCS X9508 chassis |
Key Features
-
Unified Fabric Architecture reduces cabling and consolidates both LAN and SAN traffic.
-
High Scalability allows the UCS platform to expand across multiple chassis without adding more switches.
-
Low-Latency Connectivity ensures high performance for compute-intensive environments.
-
Integrated Management through Cisco Intersight for simplified system administration.
-
Redundant Design with paired IFMs for continuous operation and failover protection.
