APC Schneider Electric Vertical Rack-Mount PDU (Power Distribution Unit) - Metered Rack, 20-Outlet, 100V-240V/30A, 42U 0U Form Factor. P/N: AP8858NA3.
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | AP8858NA3, HU04082-12011A |
| Manufacturer | APC (Schneider Electric) |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Power Distribution Unit (PDU) |
| Model | AP8858NA3 |
| Form Factor | 0U Vertical Rack-Mount (42U Length) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | Metered (Local & Remote Monitoring) |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | IEC 320 C13 |
| TDP | |
| Compatible Port | IEC C14 (for C13 outlets) |
| Number of Ports | 20 (C13 Outlets) |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

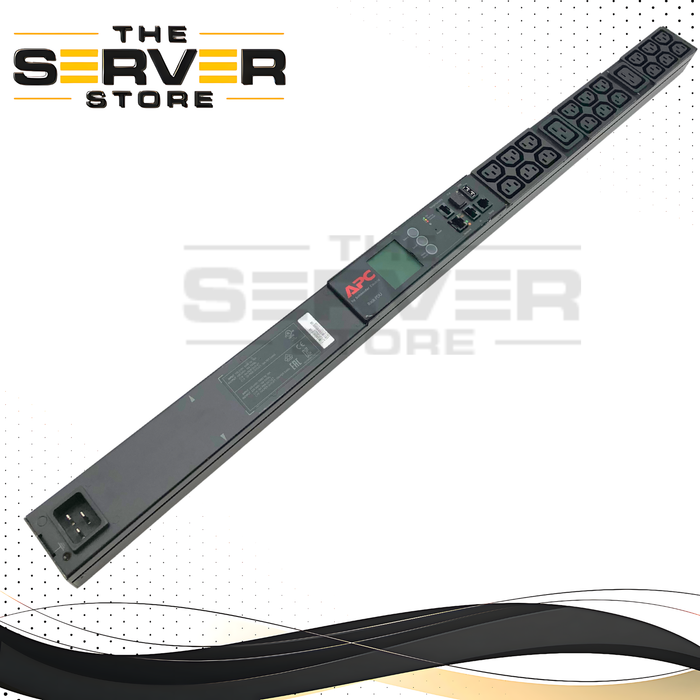

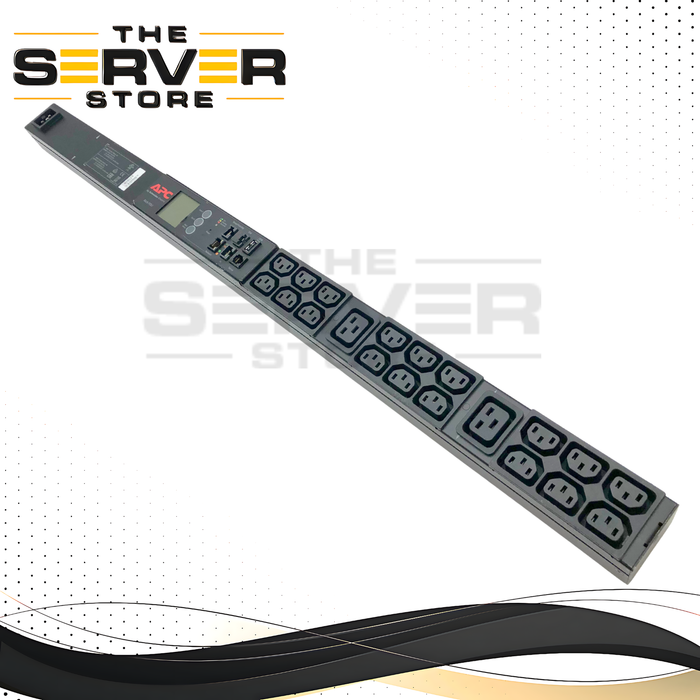

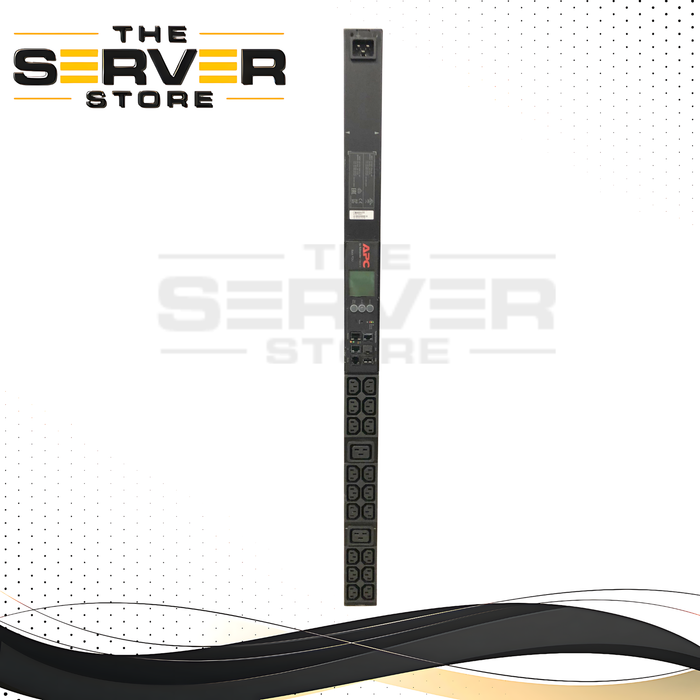

This is an APC Schneider Electric Vertical Rack-Mount PDU (Power Distribution Unit), model AP8858NA3 (P/N: HU04082-12011A, AP8858NA3). This Metered Rack PDU is engineered to provide advanced power distribution and monitoring capabilities within your data center or server room. Designed with a 42U 0U form factor, it mounts vertically to the side of a standard 42U server rack, consuming no valuable rack unit (U) space typically reserved for servers and other active equipment. It features 20 C13 outlets, delivering reliable power from a single 100V-240V, 30A input (input plug type would typically be L5-30P or L6-30P, depending on region). The "Metered" functionality allows for real-time local and remote monitoring of connected loads, providing essential data on current consumption. This enables data center managers to make informed decisions about load balancing, capacity planning, and preventing circuit overloads, thereby improving uptime and energy efficiency. It's an indispensable tool for robust power management in high-density IT environments.
Key Features
- Vertical Rack-Mount (0U): Mounts vertically to the side of a rack, consuming no traditional rack unit (U) space, optimizing rack density.
-
42U Length: Designed to span the full height of a standard 42U server rack, providing convenient power access to all equipment.

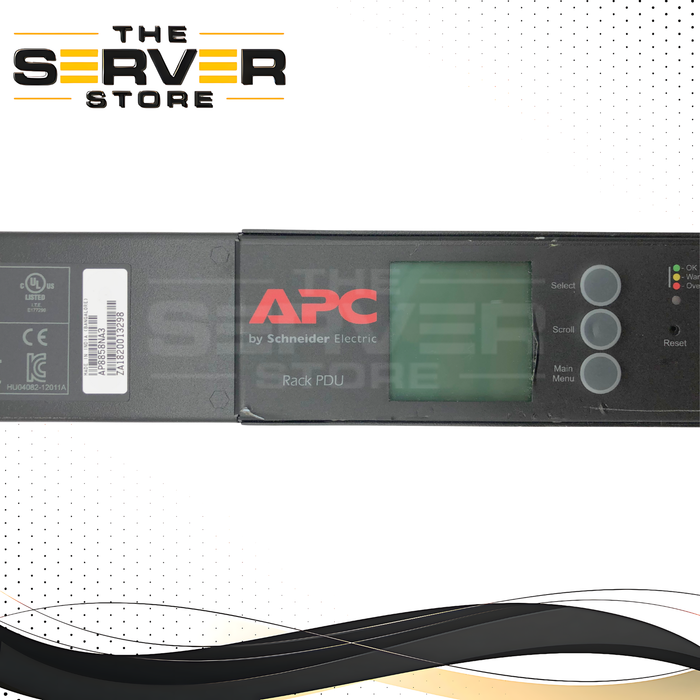

- Metered PDU: Provides real-time power monitoring (current, voltage, power factor) locally via a display and/or remotely via network.
-
20 C13 Outlets: Offers twenty standard C13 receptacles for connecting servers, network devices, and other IT equipment.
-
Single Input Power: Connects to a single power source, distributing power efficiently to all outlets.
-
Wide Voltage Compatibility: Supports input voltages from 100V-240V at 30 Amps, suitable for various global power infrastructures.
- Overload Protection: Helps prevent circuit overloads, protecting connected equipment and ensuring continuous operation.
- Capacity Planning & Load Balancing: Monitoring capabilities assist in efficient power management and infrastructure planning.
-
APC by Schneider Electric: A leading brand renowned for reliable power protection and management solutions.
