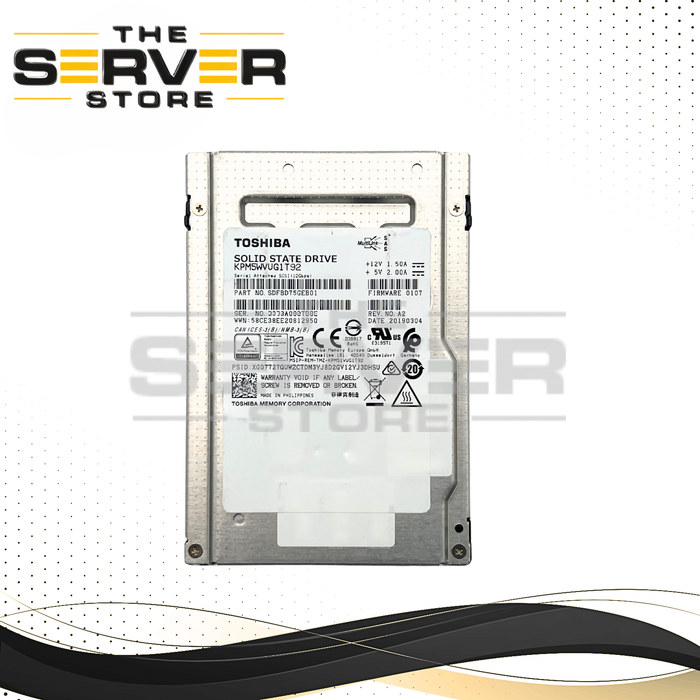

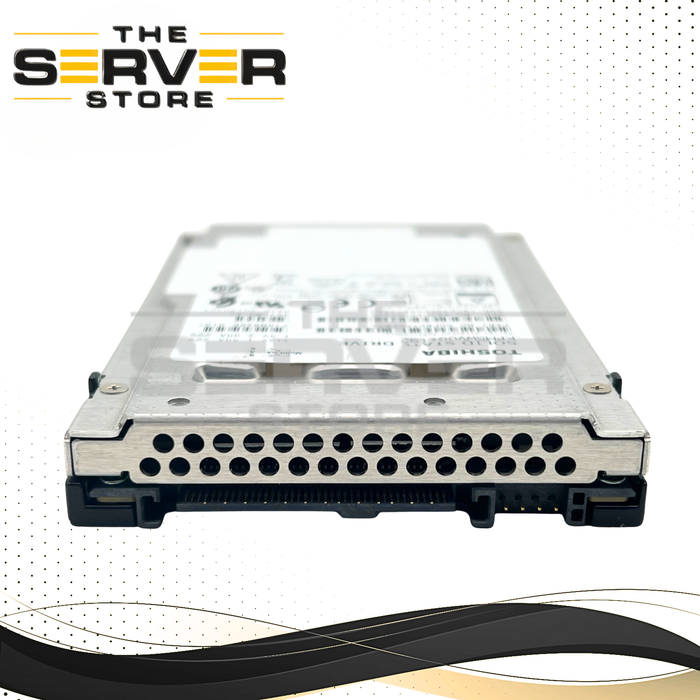

Toshiba 1.92TB SAS 12G MU SFF 2.5" SED SSD (Kioxia) PM5-V Series KPM5WVUG1T92

Toshiba 1.92TB SAS 12G MU SFF 2.5" SED SSD (Kioxia) PM5-V Series KPM5WVUG1T92

$0.00 - $0.00
$0.00
$474.99
$474.99 - $474.99
$474.99
SKU KPM5WVUG1T92
Availability:
Only 1 left!

In-store Pickup

Local Pickup in Dallas, TX Available

Shopify Product Page with Tabs
  • Specifications
  • Description
Manufacturer Part Number KPM5WVUG1T92
Manufacturer Toshiba
Condition Refurbished
Standard Warranty 90 Day Replacement Warranty
Item Category Solid State Drives (SSD)
Model PM5-V Series
Form Factor
Interface
External Interfaces
Storage Capacity
Transfer Rate
Network Management Type
Processor Type
Clock Speed
Number of Cores
Cache
Socket Type
TDP
Compatible Port
Number of Ports
CPU Type
HDD Form Factor
HDD Interface
HDD Rotation Speed
HDD Storage Capacity
HDD Transfer Rate
Memory Bus Speed
Memory Capacity Per Module
Memory Features
Memory Form Factor
Memory Kit Brand
Memory Kit Breakdown
Memory Kit Speed
Memory Kit Technology
Memory Kit Total Capacity
Memory Kit Voltage
Memory Number of Modules
Memory Number of Pins
Memory Total Capacity
Memory Type
Network Ports
Processor Model
SSD Capacity
SSD Interface
SSD Storage Capacity
SSD Transfer Rate
SSD Type

Toshiba 1.92TB SAS 12G MU SFF 2.5" SED SSD (Kioxia) PM5-V Series KPM5WVUG1T92

Other Related Part Numbers: KPM5WVUG1T92, SDFBD75GEB01, Dell OEM: 0DJY51 / DJY51

Core Specifications & Performance

  • Capacity: 1.92TB
  • Form Factor: 2.5-inch SFF (15mm height)
  • Interface: SAS 12Gb/s (SAS-3 Dual Port)
  • NAND Type: 64-layer BiCS FLASH 3D TLC
  • Workload Type: Mixed Use (MU) – 3 DWPD (5 years)

Performance (Sustained):

  • Sequential Read: Up to 2,100 MB/s
  • Sequential Write: Up to 2,100 MB/s
  • Random Read (4KB): Up to 370,000 IOPS
  • Random Write (4KB): Up to 80,000 IOPS

Reliability, Power & Features (Integrated)

  • Endurance: 3 DWPD (~Mixed Use enterprise class)
  • MTTF: 2,500,000 hours
  • Power Consumption: ~5.0W (Typical)
  • Shock Resistance: 1000G @ 0.5ms
  • Encryption: Self-Encrypting Drive (SED)
  • Security: FIPS 140-2 Level 2 validated
  • Features:
    • Dual-port SAS for high availability
    • Power Loss Protection (PLP)
    • End-to-end data protection
    • Instant Secure Erase (SIE)

Drive Tray / Carrier Compatibility (15mm SAS SSD)

This 1.92TB SAS SSD requires a 15mm-compatible 2.5″ SFF tray/caddy depending on the server manufacturer. It is a dual-port SAS 12Gb/s enterprise SSD designed for high-reliability, RAID, and mission-critical environments.

Compatible Server Manufacturers & Models

Dell PowerEdge (13G / 14G / 15G / 16G)

  • 13G: R230, R330, R430, R530, R630, R730, R730xd, T330, T430, T630
  • 14G: R240, R340, R440, R540, R640, R740, R740xd, R840, R940, T340, T440, T640
  • 15G: R650, R750, R650xs, R750xs, R6515, R6525, R7515, R7525, T150, T350
  • 16G: R660, R760, R660xs, R760xs, R6615, R6625, T160, T360
  • Modular/Blade: M630, M640, M830, MX740c, MX750c, MX760c, MX840c

Dell PowerVault Storage Arrays
ME4012, ME4024, ME4084, MD1400, MD1420, MD2424, MD3420, MD3800f

HPE ProLiant (Gen9 / Gen10 / Gen11)
DL360, DL380, ML350

Lenovo ThinkSystem
SR630, SR650

Cisco UCS Servers
C220, C240 (with SAS configurations)

Supermicro Servers (SAS3 12Gb/s Platforms)

  • Ultra / Hyper: SYS-120U-TNR, SYS-220U-TNR
  • BigTwin: SYS-2029BT-HNR
  • SuperStorage: SSG-122B-NE316R, SSG-222B-NE3X24R, SSG-6049P-E1CR36H
  • WIO / A+ Servers: AS-1115SV-WTNRT
  • Any Supermicro system with SAS3 backplane + 2.5" 15mm bays

Important Compatibility Notes

  • Requires SAS controller/backplane (NOT SATA compatible)
  • Supports dual-port SAS for redundancy
  • Requires manufacturer-specific tray/caddy (Dell, HPE, Cisco, etc.)
  • OEM firmware (Dell) may show limited management features on non-Dell systems
  • Fully compatible with enterprise RAID controllers:
    • Dell PERC (H730 / H740 / H755)
    • HPE Smart Array (P408i / P440)
    • Broadcom / LSI MegaRAID (93xx / 94xx series)
