Samsung 960GB NVMe U.2 PCIe Gen 3.0 x4 2.5" 7MM RI SSD PM983 Series MZQLB960HAJR
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MZQLB960HAJR |
| Manufacturer | Samsung |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | PM983 Series |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

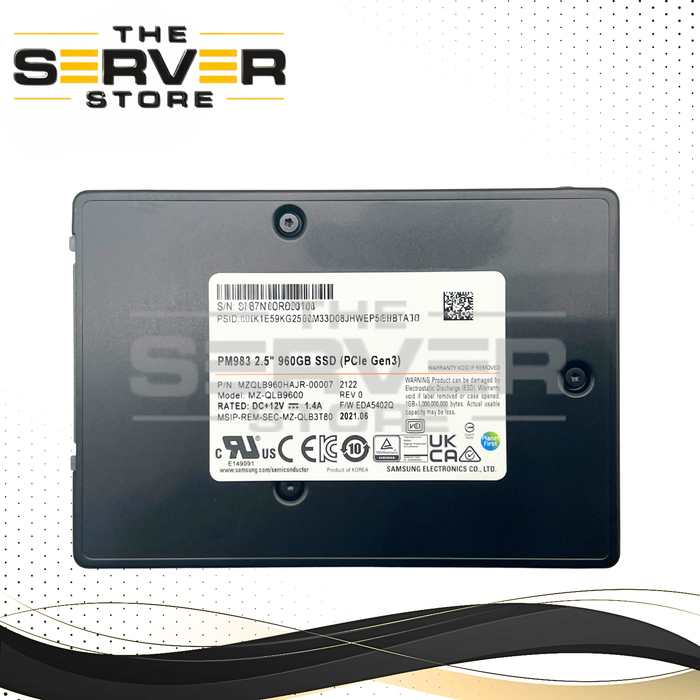

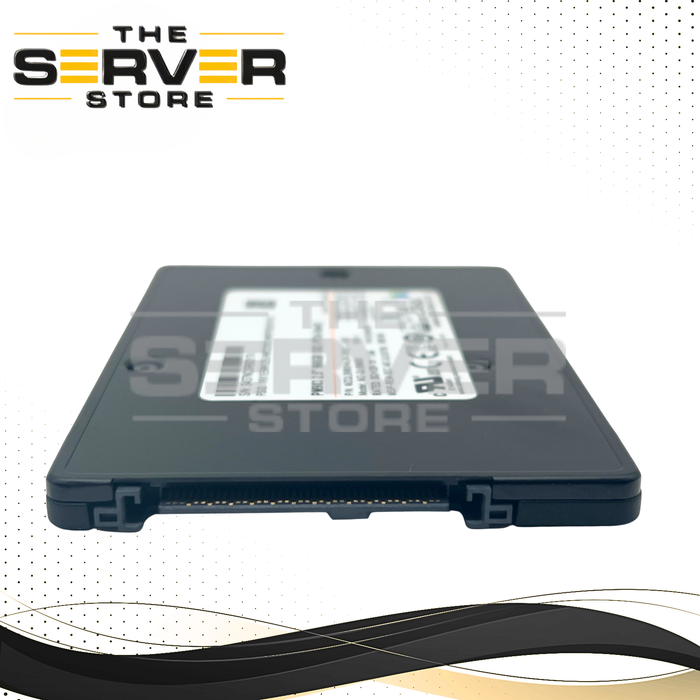

Samsung 960GB NVMe U.2 PCIe Gen 3.0 x4 2.5" 7MM RI SSD PM983 Series MZQLB960HAJR
Related Part Numbers: MZQLB960HAJR-00007, MZ-QLB9600, MZ-QLB960N
Overview
The Samsung PM983 MZQLB960HAJR is a 960GB enterprise-class NVMe SSD, designed for read-intensive (RI) workloads in cloud, hyperscale, and data center environments. Built with Samsung’s advanced 3D V-NAND TLC technology, it delivers high performance, low latency, and strong reliability in a compact 7mm 2.5-inch U.2 form factor.
Core Specifications
- Manufacturer: Samsung
- Series: PM983
- Model / Part Number: MZQLB960HAJR
- Capacity: 960 GB
- Form Factor: 2.5-inch Small Form Factor (SFF), 7mm thickness
- Interface: U.2 (SFF-8639) PCIe Gen 3.0 x4 NVMe
Performance & Speed
- Flash Memory Type: Samsung 3D V-NAND TLC
- Sequential Read Speed: Up to 3,000 MB/s
- Sequential Write Speed: Up to 1,050 MB/s
- Random Read (4KB): Up to 400,000 IOPS
- Random Write (4KB): Up to 40,000 IOPS
- Average Latency: ~15 μs
Endurance & Reliability
- Workload Type: Read-Intensive (RI)
- Endurance (DWPD): ~1.3 Drive Writes Per Day (3-year rating)
- Total Bytes Written (TBW): ~1,366 TBW
- MTBF (Mean Time Between Failures): 2,000,000 hours
Data Protection Features
- AES 256-bit hardware encryption
- Power-loss protection (PLP with onboard capacitors)
- End-to-end data protection
Power & Environmental
- Operating Voltage: 12V ± 8%
- Active Power Consumption: Up to 10.6 Watts
- Idle Power Consumption: ~4.0 Watts
- Operating Temperature: 0°C to 70°C
- Weight: ~70g
Physical & Deployment Features
- Hot-swappable U.2 drive design
- Compatible with enterprise servers and storage arrays
- Optimized for:
- Content delivery networks (CDN)
- Boot drives and web servers
- Big data analytics (read-heavy)
- Virtualization environments
Positioning vs Enterprise SSD Classes
- PM983 (This Drive): Read-Intensive (RI), cost-efficient
- PM1725b: Mixed-use, higher endurance and performance
- PM1735: High-performance/next-gen workloads
Summary
The Samsung PM983 960GB (MZQLB960HAJR) offers a strong balance of performance, efficiency, and reliability for read-heavy enterprise applications. Its NVMe interface and solid throughput make it ideal for scalable data center deployments while keeping power and cost optimized.
