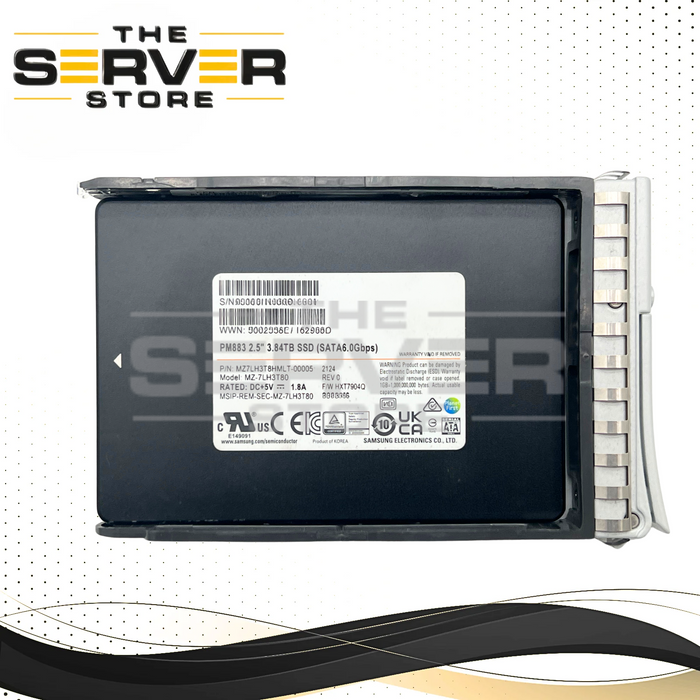

Samsung 3.84TB SATA 6G RI SFF 2.5" 7mm SED SSD PM883 Series MZ-7LH3T80 MZ7LH3T8HMLT For Cisco UCS Server (Cisco UCS Tray Included)
Key Features
- 3.84TB Enterprise-Class Storage Capacity
- SATA III 6Gb/s Interface
- 2.5" Small Form Factor (SFF), 7mm Height
- Samsung PM883 Enterprise SSD
- Self-Encrypting Drive (SED)
- AES 256-Bit Hardware Encryption
- Power Loss Protection (PLP)
- End-to-End Data Protection
- Samsung 64-Layer 3D V-NAND TLC Technology
- Up to 550 MB/s Sequential Read Speed
- Up to 520 MB/s Sequential Write Speed
- Up to 98,000 Random Read IOPS
- Optimized for Read-Intensive (RI) Enterprise Workloads

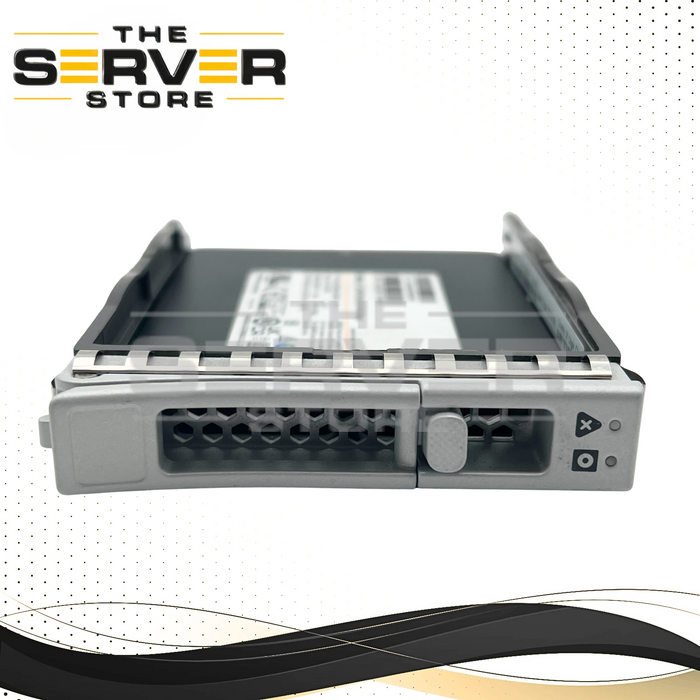

- Cisco UCS Drive Tray Included
Description
The Samsung PM883 3.84TB Enterprise SSD delivers dependable performance, advanced security, and enterprise-grade reliability for modern data center and server environments. Built with Samsung's proven 64-layer 3D V-NAND TLC flash technology and enterprise-class controller architecture, this SSD is designed to handle virtualization, cloud computing, storage arrays, database applications, and other business-critical workloads requiring consistent performance and long-term durability.
Featuring a SATA III 6Gb/s interface, the PM883 provides sequential read speeds of up to 550 MB/s and sequential write speeds of up to 520 MB/s for fast access to applications and data. With random performance of up to 98,000 IOPS read and 28,000 IOPS write, this drive is well suited for virtualization hosts, enterprise storage platforms, content repositories, backup systems, and read-intensive server workloads.
Enterprise reliability features include Power Loss Protection (PLP), End-to-End Data Protection, and Self-Encrypting Drive (SED) functionality with AES 256-bit hardware encryption and TCG Opal support. These technologies help protect sensitive business data, maintain data integrity, and ensure stable operation during critical workloads.
Rated for approximately 5,466 TBW and backed by a 2 million hour MTBF specification, the PM883 provides the endurance and dependability required for continuous enterprise operation. This configuration includes a Cisco UCS-compatible drive tray for seamless installation into supported Cisco UCS server platforms.
Compatibility
Compatible with Cisco UCS servers supporting 2.5-inch SATA drives, including:
- Cisco UCS C220 M4
- Cisco UCS C220 M5
- Cisco UCS C220 M6
- Cisco UCS C240 M4
- Cisco UCS C240 M5
- Cisco UCS C240 M6
Also compatible with many enterprise storage and server platforms supporting standard 2.5" SATA SSDs when the appropriate carrier or tray is used.
Included
- Samsung PM883 3.84TB Enterprise SSD
- Cisco UCS 2.5" Drive Tray / Carrier
Specifications
- Manufacturer: Samsung
- Series: PM883
- Model Number: MZ-7LH3T80
- Part Number: MZ7LH3T8HMLT
- Additional Part Number: MZ7LH3T8HMLT-00005
- Capacity: 3.84TB
- Interface: SATA III 6Gb/s
- Form Factor: 2.5" SFF, 7mm
- NAND Type: Samsung 64-Layer 3D V-NAND TLC
- Controller: Samsung MJX
- Cache Memory: 4GB LPDDR4 DRAM
- Workload Type: Read Intensive (RI)
- Sequential Read Speed: Up to 550 MB/s
- Sequential Write Speed: Up to 520 MB/s
- Random Read Performance: Up to 98,000 IOPS
- Random Write Performance: Up to 28,000 IOPS
- Encryption: AES 256-Bit Hardware Encryption (SED)
- Power Loss Protection: Yes
- End-to-End Data Protection: Yes
- TBW Rating: Approximately 5,466 TB
- MTBF: 2,000,000 Hours
- Operating Temperature: 0°C to 70°C
Ideal for Cisco UCS server deployments, virtualization environments, cloud infrastructure, database servers, RAID storage arrays, backup repositories, enterprise applications, and read-intensive workloads requiring secure, high-capacity, enterprise-grade SSD storage.
