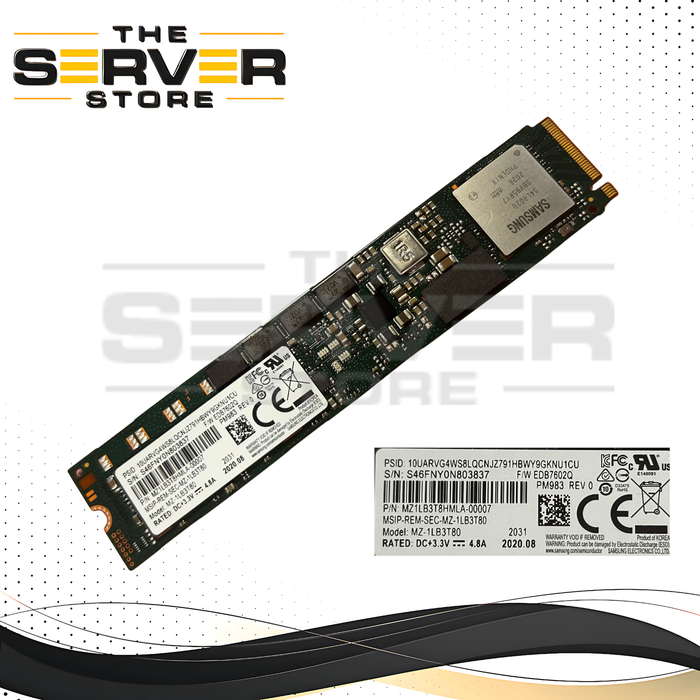

Samsung 3.84TB NVMe 22110 M.2 PCIe G3 x4 SSD PM983 MZ-1LB3T80 MZ1LB3T8HMLA-00007
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MZ1LB3T8HMLA-00007 |
| Manufacturer | Samsung |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | MZ-1LB3T80 |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Samsung 3.84TB NVMe M.2 22110 PCIe Gen3 x4 Enterprise SSD
PM983 | MZ-1LB3T80 | MZ1LB3T8HMLA-00007
The Samsung PM983 3.84TB NVMe SSD is an enterprise-class solid-state drive engineered for data center, cloud, and read-intensive workloads. Built with Samsung’s proven 3D V-NAND TLC technology and a high-performance PCIe Gen 3.0 x4 NVMe interface, the PM983 delivers exceptional throughput, low latency, and long-term reliability.
Featuring an M.2 22110 form factor, this SSD is ideal for servers and workstations that support extended-length M.2 slots, providing high capacity storage density without sacrificing performance.
Key Specifications
-
Capacity: 3.84TB
-
Model Numbers: MZ1LB3T8HMLA-00007 / MZ-1LB3T80
-
Series: Samsung PM983
-
Form Factor: M.2 22110 (22mm x 110mm)
-
Interface: PCIe Gen 3.0 x4, NVMe 1.2b
-
NAND Type: Samsung 3D V-NAND TLC
Performance
-
Sequential Read: Up to 3,100 MB/s
-
Sequential Write: Up to 2,000 MB/s
-
Random Read (4KB): Up to 540,000 IOPS
-
Random Write (4KB): Up to 50,000 IOPS
Endurance, Security & Reliability
-
Endurance Rating: 1.3 DWPD (3-year rating)
-
MTBF: 2.0 million hours
-
Data Protection: Power Loss Protection (PLP), end-to-end data path protection
-
Encryption: AES-256, TCG Opal 2.0 compliant
Physical & Power Characteristics
-
Dimensions: 30.50 x 110.00 x 4.38 mm
-
Weight: ≤ 22g
-
Operating Temperature: 0°C to 70°C
-
Power Consumption:
-
Active (Read/Write): 9.0W / 11.5W
-
Idle: 3.6W
-
Ideal Use Cases
-
Enterprise servers and data centers
-
Cloud infrastructure and virtualization
-
Read-intensive applications
-
High-density storage environments
Note: This SSD uses the M.2 22110 (110mm) form factor, which is longer than standard M.2 2280 drives. Please ensure motherboard or server compatibility before purchase.
Why Choose the Samsung PM983
The Samsung PM983 3.84TB NVMe SSD offers a powerful balance of performance, endurance, and enterprise-grade reliability. With advanced security features, consistent throughput, and Samsung’s trusted V-NAND technology, it is a proven storage solution for mission-critical workloads.
