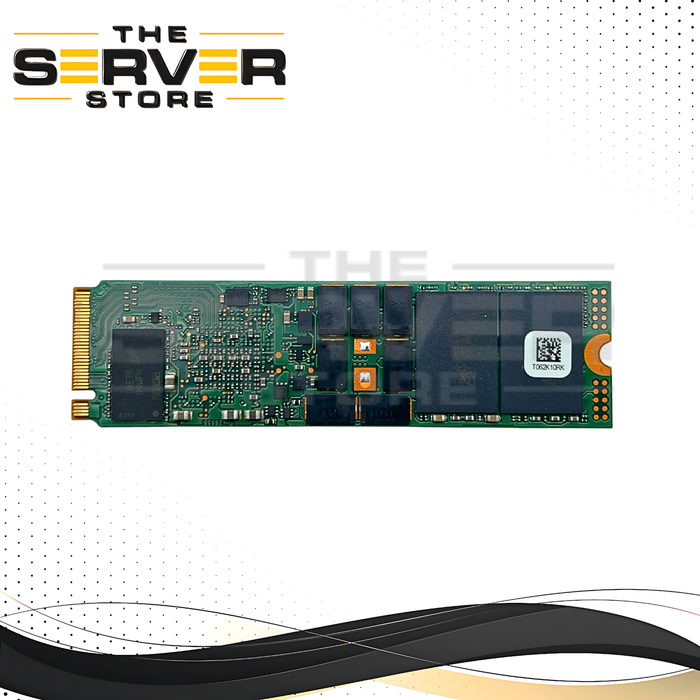

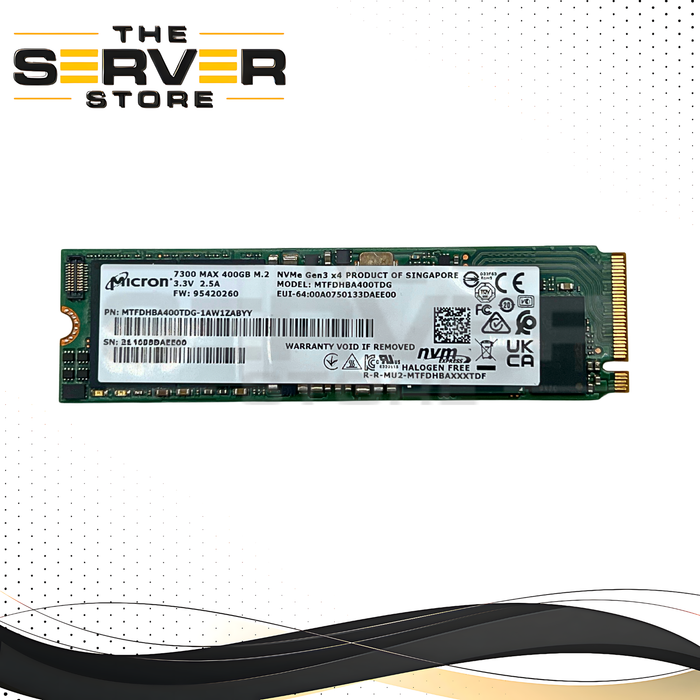

Micron 400GB NVMe 2280 M.2 PCIe Gen 3.0 x4 SSD 7300 MAX Series MTFDHBA400TDG
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MTFDHBA400TDG |
| Manufacturer | Micron |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | 7300 MAX Series |
| Form Factor | 2280 M.2 |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Micron 400GB NVMe 2280 M.2 PCIe Gen 3.0 x4 SSD 7300 MAX Series MTFDHBA400TDG
Boost enterprise storage performance with the Micron 7300 MAX Series 400GB NVMe SSD, engineered for demanding mixed-use workloads that require exceptional endurance, reliability, and low latency. Featuring a compact M.2 2280 form factor and a high-speed PCIe Gen 3.0 x4 NVMe interface, this enterprise-grade solid-state drive delivers fast data access and consistent performance for servers, edge computing, virtualization, database applications, and data center environments.
Built with Micron's advanced 96-layer 3D TLC NAND technology, the 7300 MAX Series is optimized for sustained workloads with an endurance rating of 3 Drive Writes Per Day (DWPD). Security-focused deployments benefit from integrated 256-bit AES Self-Encrypting Drive (SED) capabilities with TCG support, helping safeguard sensitive business data without compromising performance.
Key Features
- 400GB storage capacity for enterprise and mixed-use applications
- PCIe Gen 3.0 x4 NVMe interface for high-speed data transfers
- M.2 2280 form factor (22mm x 80mm) for compact system integration
- Built with Micron 96-layer 3D TLC NAND flash
- Supports single-port and dual-port configurations
- Up to 3,000 MB/s sequential read speeds
- Up to 1,800 MB/s sequential write speeds
- Up to 110,000 IOPS random read performance
- Up to 40,000 IOPS random write performance
- Low latency performance of 90µs read and 25µs write
- 3 DWPD endurance rating for sustained enterprise workloads
- 256-bit AES hardware encryption with TCG support
- Efficient operation with 8.25W active power consumption
Technical Specifications
- Manufacturer: Micron
- Series: 7300 MAX
- Model Number: MTFDHBA400TDG-1AW1ZABYY
- Capacity: 400GB
- Form Factor: M.2 2280
- Interface: PCIe Gen3 x4 NVMe
- Flash Memory: 96-layer 3D TLC NAND
- Sequential Read Speed: Up to 3,000 MB/s
- Sequential Write Speed: Up to 1,800 MB/s
- Random Read Performance: Up to 110,000 IOPS
- Random Write Performance: Up to 40,000 IOPS
- Endurance: 3 DWPD
- Encryption: 256-bit AES SED with TCG Support
- Operating Temperature: 0°C to 70°C
- Active Power Consumption: 8.25W
Ideal for data-intensive enterprise environments, the Micron 7300 MAX 400GB NVMe SSD combines high endurance, enterprise-class security, and dependable performance in a compact M.2 form factor, making it an excellent choice for modern server and storage infrastructure.
