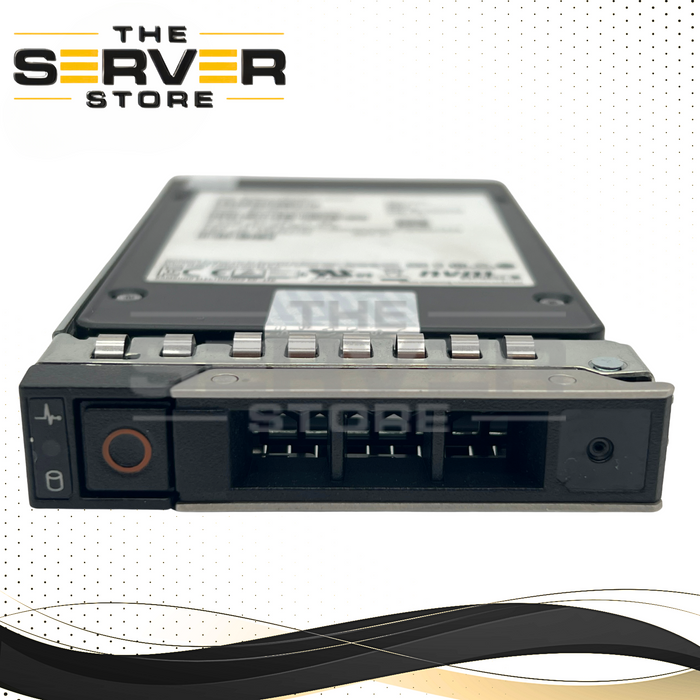

EMC 15.36TB NVME U.2 SFF 2.5" SSD Samsung PM1723b Series for Dell PowerEdge Server 118000743
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 118000743 (with Tray) |
| Manufacturer | EMC |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
The EMC 15.36TB NVMe U.2 SFF 2.5" SSD Samsung PM1723b is a high-capacity, enterprise-grade solid-state drive designed for data centers, cloud infrastructures, and high-performance computing environments. Built with Samsung’s advanced NAND technology, this drive offers blazing-fast NVMe performance over the U.2 interface, delivering ultra-low latency and high throughput for demanding workloads.
In addition to exceptional speed, the PM1723b features robust data protection, including hardware-based AES-256 encryption and self-encrypting drive (SED) capabilities, ensuring your critical data remains secure. It also holds a FIPS 140-2 Level 2 certification, making it ideal for environments with strict regulatory and security requirements.
Key Specifications:
-
Capacity: 15.36TB
-
Form Factor: 2.5-inch Small Form Factor (SFF)
-
Interface: NVMe 1.3 over U.2 (PCIe Gen3 x4)
-
Sequential Read Speed: Up to 6,500 MB/s
-
Sequential Write Speed: Up to 3,800 MB/s
-
Random Read IOPS: Up to 1,000,000 IOPS
-
Random Write IOPS: Up to 130,000 IOPS
-
NAND Type: Samsung V-NAND 3-bit MLC (TLC)
-
Encryption: AES-256 XTS Self-Encrypting Drive (SED)
-
Security Certification: FIPS 140-2 Level 2
-
MTBF (Mean Time Between Failures): 2 million hours
-
Power Consumption: Active ~25W (typical)
-
Operating Temperature: 0°C to 70°C
-
Compliance: RoHS, CE, FCC, TUV
-
Warranty: Typically 5 years limited warranty
-

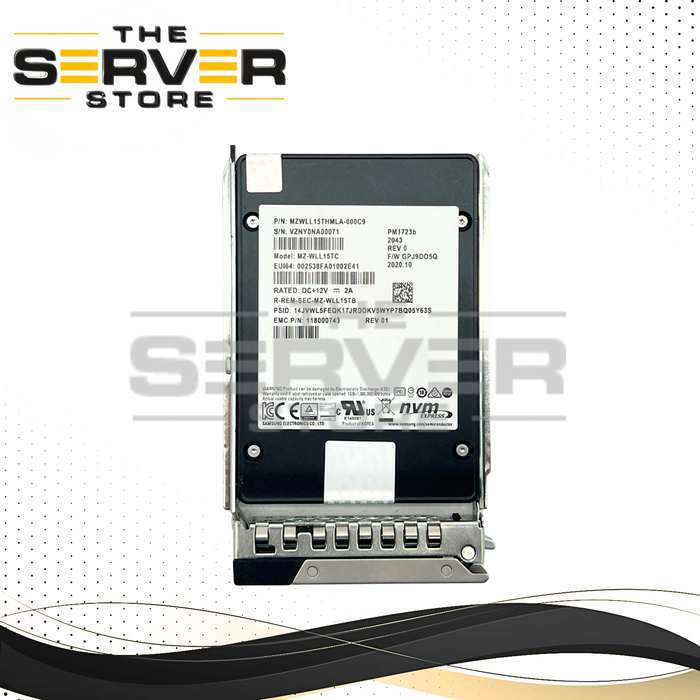

Model: MZ-WLL15TC, MZWLL15THMLA-000C9
Ideal Use Cases:
-
Enterprise data centers requiring high-capacity NVMe storage
-
Cloud infrastructure with strict security and compliance needs
-
High-performance computing (HPC) applications
-
Database management systems and virtualization platforms
