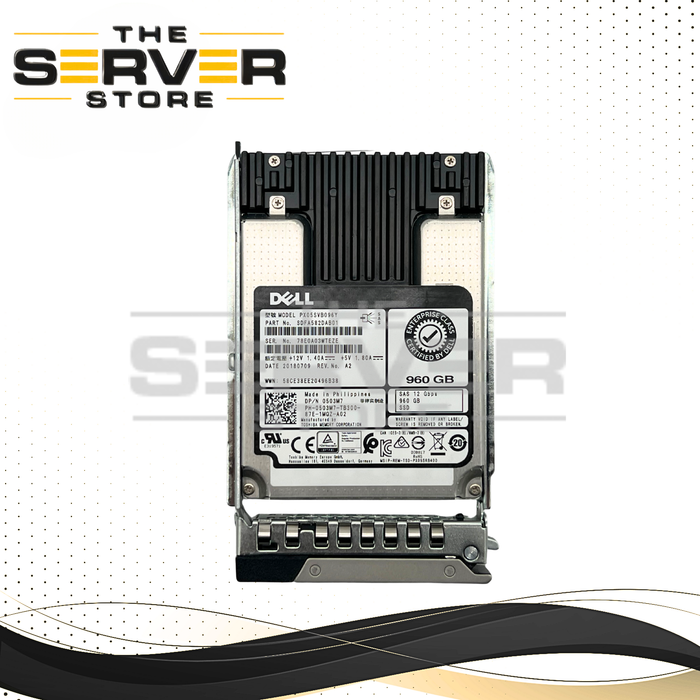

Dell 960GB SAS 12Gbps MU SFF 2.5" SSD PX05SVB096Y Toshiba PX05SV 0503M7 503M7
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 0503M7 503M7 |
| Manufacturer | Dell / Toshiba |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | PX05SVB096Y |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Product Description:
The Dell 960GB SAS 12Gbps Mixed Use (MU) 2.5" Solid State Drive delivers enterprise-class speed, durability, and reliability for demanding storage environments. Powered by the Toshiba PX05SV Series, with model PX05SVB096Y and Dell part numbers 0503M7, 503M7, and SDFA582DAB01, this SSD is engineered for mixed-use workloads that require strong performance in both read and write operations.
With a 960GB capacity, a robust SAS-3.0 12Gbps interface, and 3 DWPD endurance, this drive is ideal for applications that require a balance of high throughput and consistent write activity. It features advanced enterprise protections including Power Loss Protection, End-to-End Data Protection, and support for Pin-3 Power Disable for enhanced system safety.
Designed for servers and storage arrays using 2.5-inch SAS bays, the Toshiba PX05SV Series provides exceptional performance, long service life, and outstanding reliability with an MTTF of 2,000,000 hours.
Key Specifications:
-
Model Number: PX05SVB096Y
-
Series: Toshiba PX05SV Series
-
Dell Part Numbers: 0503M7, 503M7, SDFA582DAB01
-
Capacity: 960 GB
-
Form Factor: 2.5-inch SFF, 15mm Z-Height
-
Interface: SAS-3.0 (12Gbps, backward compatible with 6.0/3.0/1.5Gbps)
-
Memory Type: Multi-Level Cell (MLC)
-
Endurance Class: Mixed Use (MU)
-
Endurance Rating: 3 Drive Writes Per Day (DWPD) for 5 years
Performance:
-
Sequential Read: 1,900 MiB/s
-
Sequential Write: 850 MiB/s
-
Random Read (4KB): 270,000 IOPS
-
Random Write (4KB): 60,000 IOPS
Reliability & Protection:
-
MTTF: 2,000,000 hours
-
Power Loss Protection: Yes
-
End-to-End Data Protection: Yes (includes data path protection)
-
Security: Supports Sanitize operations, Pin-3 Power Disable
-
Operating Temperature: 0°C to 55°C
-
Power Consumption (Ready): 3.2 W typical
Ideal Workload Applications:
This drive is optimized for mixed-use enterprise environments such as:
-
Virtualization
-
Online transaction systems
-
High-performance application servers
-
Database workloads
-
Multi-user enterprise platforms
-
Write-intensive cloud and data center environments requiring both speed and endurance
Why This Drive Is a Strong Choice:
The combination of 3 DWPD durability, high sequential and random I/O performance, and enterprise-grade power and data protection makes this SSD a reliable and long-lasting upgrade for Dell servers requiring exceptional mixed-use capability. The Toshiba PX05SV Series is built for environments where uptime, speed, and consistency matter.
