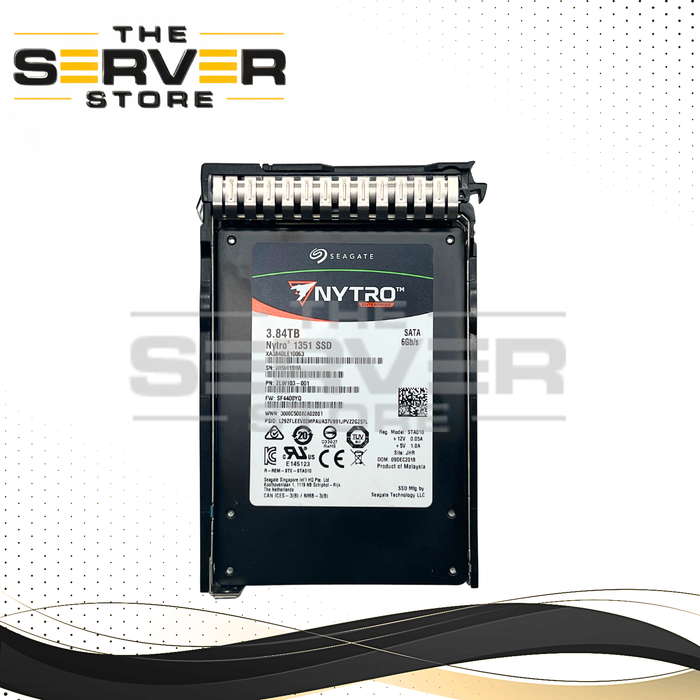

Seagate 3.84TB SATA 6G RI (with SFF SC Tray) 2.5" SED SSD Nytro 1351 Series XA3840LE10063 for HPE ProLiant Server
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | XA3840LE10063 (with HPE SFF SC Tray) |
| Manufacturer | |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Nytro 1351 Series |
| Form Factor | SFF 2.5" 7mm SSD (Read Description) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Seagate 3.84TB SATA 6G RI (with SFF SC Tray) 2.5" SED SSD Nytro 1351 Series XA3840LE10063 for HPE ProLiant Server
Other Related Part Number: 2LW103-001
Overview
The Seagate Nytro 1351 XA3840LE10063 is an enterprise-grade Read Intensive (RI) Self-Encrypting Drive (SED) engineered for data center, cloud, and enterprise server environments. Built with 3D TLC NAND and a SATA 6Gb/s interface, it delivers reliable performance, solid endurance, and integrated hardware-based security. In Hewlett Packard Enterprise (HPE) systems, it is commonly deployed for boot, caching, and read-heavy workloads.
Core Specifications
- Capacity: 3.84TB (3840GB)
- Interface: SATA III 6Gb/s
- Form Factor: 2.5" SFF (7mm height)
- NAND Type: 3D TLC NAND
- Workload Type: Read Intensive (RI)
- Endurance: 1 DWPD (~12,300 TBW over 5 years)
- MTBF: 2,000,000 hours
Performance
- Sequential Read: Up to 560 MB/s
- Sequential Write: Up to 535 MB/s
- Random Read (4KB): Up to 90,000 IOPS
- Random Write (4KB): Up to 22,000 IOPS
- Latency: ~172 µs (read) / ~58 µs (write)
Power & Physical
- Power Consumption: ~3.5W active / ~1.2W idle
- Dimensions: 7mm (H) x 70.1mm (W) x 100.25mm (D)
- Weight: ~82g
- Operating Temperature: 0°C to 70°C
Security & Enterprise Features
- Encryption: AES-256 Self-Encrypting Drive (SED)
- Security Standard: TCG Opal compliant
- Instant Secure Erase (ISE)
- Power Loss Protection (PLP)
- End-to-End Data Protection (SHIELD / RAISE)
- DuraWrite™ Technology
HPE Server Compatibility
HPE ProLiant & Synergy
DL320 Gen11, DL360 Gen11, DL380 Gen11, DL560 Gen11; DL20, DL160, DL180, DL325, DL360, DL380, DL385, DL560, DL580 Gen10/Gen10+; DL120, DL160, DL360, DL380, DL388 Gen8/Gen9; ML30 Gen10/Gen11, ML110 Gen10/Gen11, ML350 Gen9/Gen10/Gen11; Synergy 480 Gen10 Plus, Synergy 660 Gen10; Apollo XL170r, XL190r, XL230a, XL270d
HPE Equivalent Part Numbers
- Option: 877764-B21, P40500-B21
- Spare: 878855-001, P41525-001
Drive Carrier / Tray Compatibility

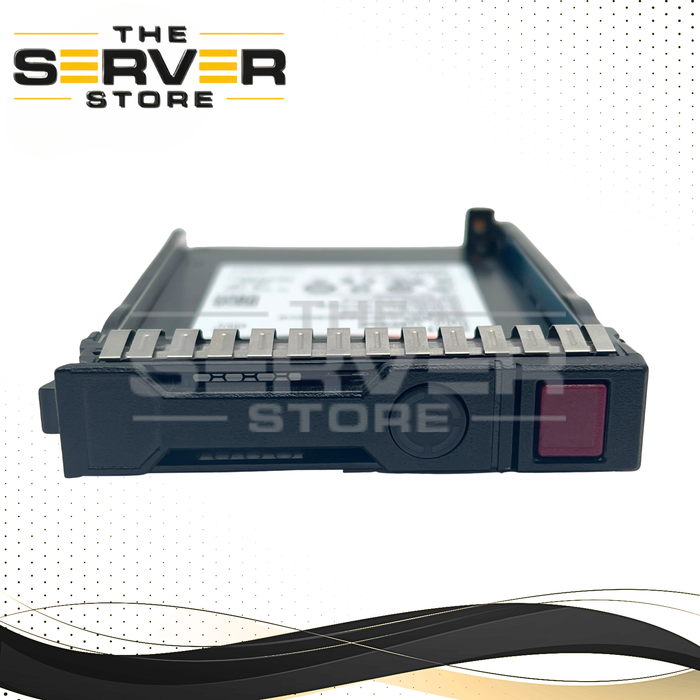

- Included: HPE 2.5" SFF Smart Carrier (SC) Tray
- SC Carrier: Compatible with Gen8 / Gen9 / Gen10 servers
- BC Carrier Required: For Gen10 Plus / Gen11 systems (may require different tray)
Compatibility Notes
- Requires 2.5" SFF SATA-compatible backplane/controller
- Works in SAS backplanes (SAS controllers support SATA drives)
- Non-HPE firmware may show as “Non-Authentic” or “Uncertified”
- Limited support for HPE digitally signed firmware and SmartSSD Wear Gauge on non-HPE drives
Summary
The Seagate Nytro 1351 3.84TB SSD offers a strong balance of performance, endurance, and security, making it a dependable solution for HPE ProLiant Gen8–Gen11 servers, especially in read-intensive enterprise workloads such as virtualization, web hosting, and content delivery.
