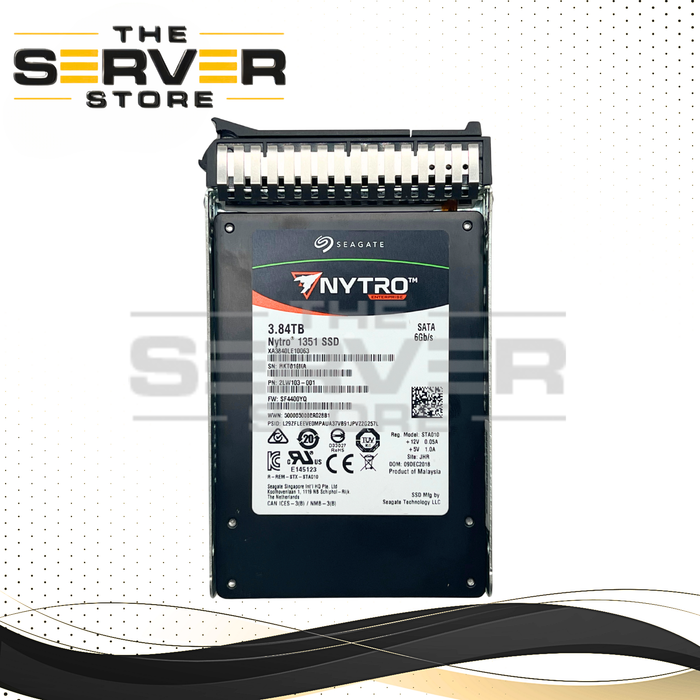

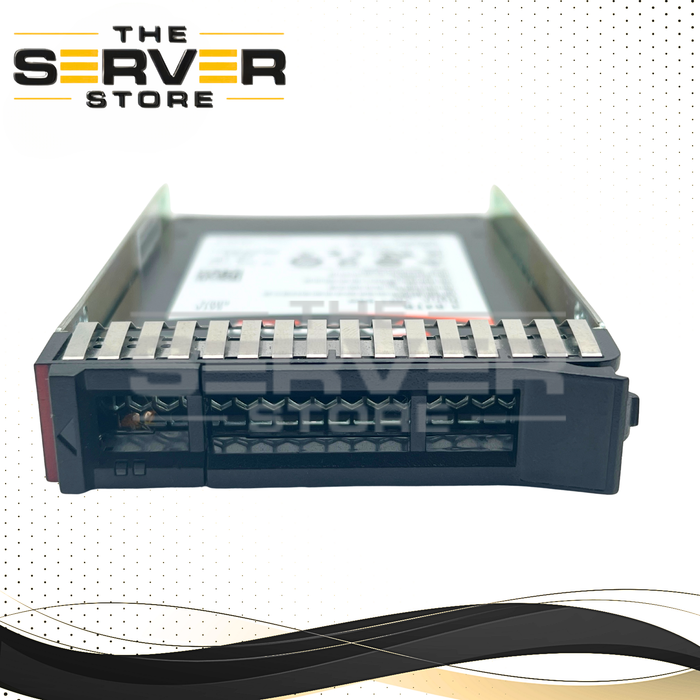

Seagate 3.84TB SATA 6G RI SFF 2.5" SED SSD Nytro 1351 Series XA3840LE10063 Lenovo ThinkSystem Server
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | XA3840LE10063 (with Lenovo ThinkSystem Tray) |
| Manufacturer | |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Nytro 1351 Series |
| Form Factor | SFF 2.5" 7mm SSD (Read Description) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Seagate 3.84TB SATA 6G RI SFF 2.5" SED SSD Nytro 1351 Series XA3840LE10063 for Lenovo ThinkSystem Server
Other Related Part Number: 2LW103-001
Overview
The Seagate Nytro 1351 XA3840LE10063 is a high-capacity Read Intensive (RI) Self-Encrypting Drive (SED) designed for enterprise environments such as data centers, virtualization platforms, and cloud infrastructure. With a standard 2.5-inch SFF (7mm) form factor and SATA 6Gb/s interface, it integrates seamlessly into Lenovo servers that support SATA-based storage.
Core Specifications
- Capacity: 3.84TB (3840GB)
- Interface: SATA III 6Gb/s
- Form Factor: 2.5" SFF (7mm)
- NAND Type: 3D TLC NAND
- Workload Type: Read Intensive (RI)
- Endurance: 1 DWPD (~12,300 TBW / 5 years)
- MTBF: 2,000,000 hours
Performance
- Sequential Read: Up to 560 MB/s
- Sequential Write: Up to 535 MB/s
- Random Read (4K): Up to 90,000 IOPS
- Random Write (4K): Up to 22,000 IOPS
- Latency: ~172 µs (read) / ~58 µs (write)
Security & Enterprise Features
- Encryption: AES-256 Self-Encrypting Drive (SED)
- TCG Opal Compliance
- Instant Secure Erase (ISE)
- Power Loss Protection (PLP)
- End-to-End Data Integrity (SHIELD / RAISE)
- DuraWrite™ Technology for endurance optimization
Lenovo Server Compatibility
Lenovo ThinkSystem (Rack & Tower)
V3 Generation:
- SR650 V3
- SR630 V3
- SR250 V3
- ST650 V3
- ST250 V3
- ST50 V3
V2 Generation:
- SR650 V2
- SR630 V2
- SR250 V2
- ST250 V2
Legacy ThinkSystem (Gen1):
- SR650
- SR630
- SR590
- SR570
- SR550
- SR530
- SR250
- ST550
- ST250
Lenovo System x (Legacy Enterprise)
- x3650 M4 / M5
- x3550 M4 / M5
- x3850 X6
- x3950 X6
Lenovo ThinkServer
- RD650
- RD550
- RD450
- TD350
Lenovo Flex System / Blade
- SN550
- SN850
- x240 Compute Nodes (requires compatible drive trays)
Lenovo ThinkAgile / HX Series
- HX1320
- HX2320
- HX3320
- HX3520-G
Compatibility Notes
- Requires 2.5" SFF 7mm SATA-compatible bays
- Must use Lenovo-specific drive caddy/tray for installation
- Compatible with SATA or SAS backplanes (SAS is backward compatible with SATA)
- Not compatible with NVMe-only bays
- May appear as “non-Lenovo” or “non-certified” in XClarity, but operates normally
Summary
The Seagate Nytro 1351 3.84TB (XA3840LE10063) is fully compatible with a wide range of Lenovo ThinkSystem, System x, ThinkServer, and ThinkAgile platforms, making it a reliable and cost-effective enterprise SSD for read-heavy workloads such as virtualization, web hosting, and large-scale data storage.
