Seagate 3.84TB SATA 6G RI SFF 2.5" SED SSD Nytro 1351 Series XA3840LE10063 for Dell PowerEdge Gen 13th 12th 11th
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | XA3840LE10063 (with Dell PowerEdge Gen 13th 12th 11th Tray) |
| Manufacturer | |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Nytro 1351 Series |
| Form Factor | SFF 2.5" 7mm SSD (Read Description) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

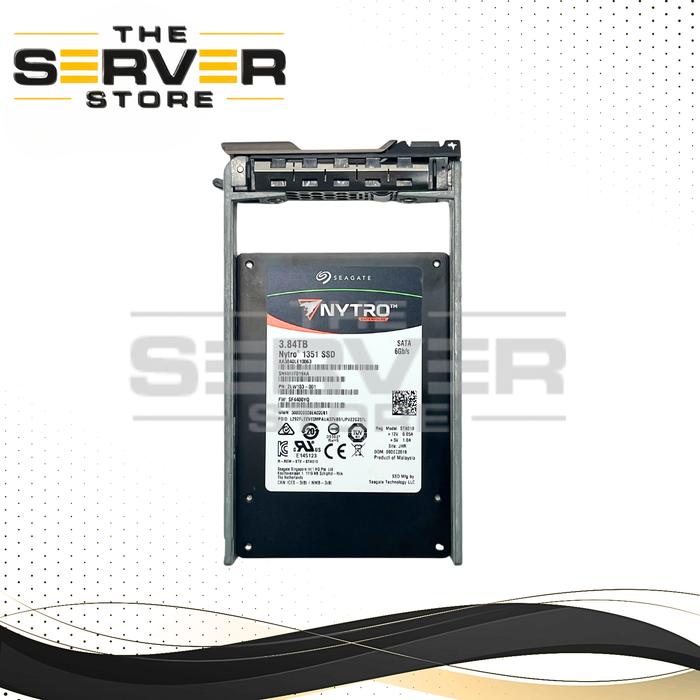

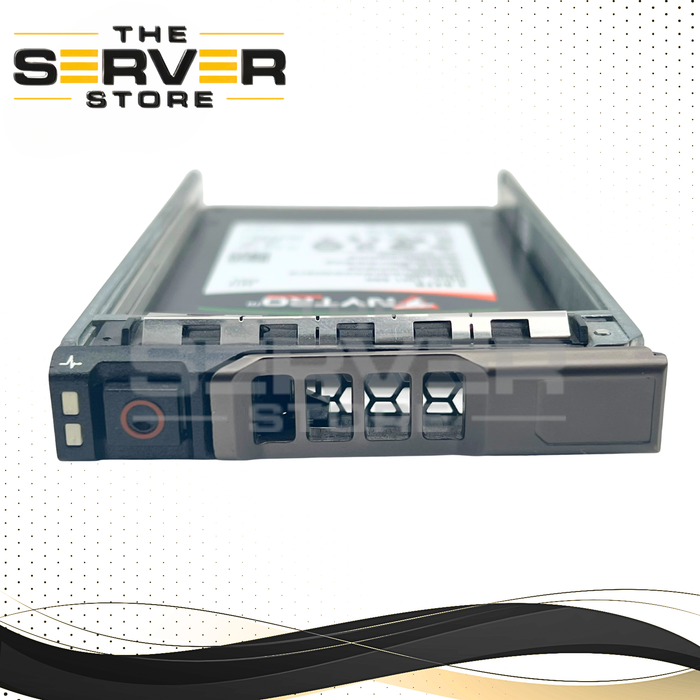

Seagate 3.84TB SATA 6G RI SFF 2.5" SED SSD Nytro 1351 Series XA3840LE10063 for Dell PowerEdge Gen 13th 12th 11th (G176J / 8FKXC / KG7NR Tray)
Overview
The Seagate Nytro 1351 XA3840LE10063 is an enterprise-grade Read Intensive (RI) Self-Encrypting Drive (SED) built for data center and Dell PowerEdge environments. It features 3D TLC NAND, a SATA 6Gb/s interface, and AES-256 hardware encryption, making it suitable for virtualization, boot workloads, and read-heavy enterprise applications in legacy and mid-generation Dell servers.
In Dell Technologies PowerEdge systems, this drive is widely deployed across multiple generations when paired with the correct 2.5" SFF hot-swap tray.
Dell Drive Tray Compatibility (11G / 12G / 13G)
This SSD is compatible when used with the following Dell hot-swap SFF carriers:
- G176J / 0G176J
- 8FKXC / 08FKXC
- KG7NR / 0KG7NR
- G281D / WX387 / Y961D (interchangeable equivalents)
These trays support standard 2.5" SAS/SATA SSDs and HDDs (up to 15mm height) and are used across Dell legacy server generations.
Compatible Dell PowerEdge Servers
13th Generation
R330, R430, R630, R730, R730xd, R830, R930, T330, T430, T630, XC630, XC730, XC730xd
12th Generation
R320, R420, R520, R620, R720, R720xd, R820, R920, T320, T420, T620
11th Generation
R310, R410, R415, R510, R515, R610, R710, R715, R810, R815, R910, T310, T410, T610, T710
14th Generation (Select Towers ONLY)
- T440
- T640
Drive Specifications
- Capacity: 3.84TB
- Interface: SATA III 6Gb/s
- Form Factor: 2.5" SFF (7mm height)
- NAND: 3D TLC
- Workload: Read Intensive (RI)
- Endurance: ~1 DWPD (~12,300 TBW over 5 years)
- MTBF: 2,000,000 hours
Performance
- Sequential Read: up to 560 MB/s
- Sequential Write: up to 535 MB/s
- Random Read (4KB): up to 90,000 IOPS
- Random Write (4KB): up to 22,000 IOPS
- Latency: ~172 µs read / ~58 µs write
Enterprise Features
- AES-256 Self-Encrypting Drive (SED)
- TCG Opal security
- Instant Secure Erase (ISE)
- Power Loss Protection (PLP)
- End-to-End Data Protection (SHIELD / RAISE)
- DuraWrite efficiency technology
Compatibility Notes
- Requires SATA-compatible backplane/controller
- Works in SAS backplanes (SATA supported)
- May show “Non-Dell Certified” but functions normally
- Full compatibility depends on correct 11G / 12G / 13G Dell SFF tray usage
- Best suited for virtualization, file servers, and boot/system volumes
Summary
This Seagate Nytro 1351 3.84TB SSD is fully compatible across Dell PowerEdge 11th, 12th, and 13th generations, using standard Dell SFF trays (G176J / 8FKXC / KG7NR series), with limited support in 14th Gen tower systems (T440 / T640 only).
