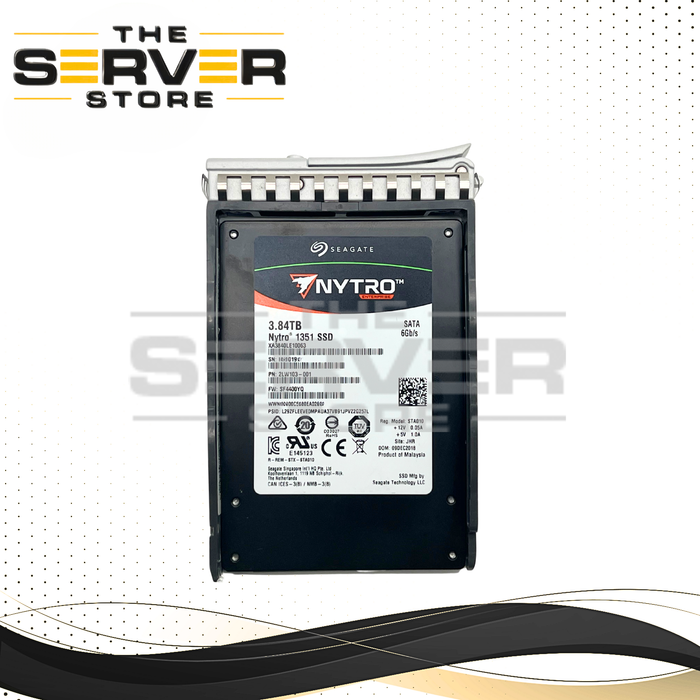

Seagate 3.84TB SATA 6G RI SFF 2.5" SED SSD Nytro 1351 Series XA3840LE10063 for Cisco UCS C-Series Server
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | XA3840LE10063 (with Cisco UCS Series Tray) |
| Manufacturer | |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Nytro 1351 Series |
| Form Factor | SFF 2.5" 7mm SSD (Read Description) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Seagate 3.84TB SATA 6G RI SFF 2.5" SED SSD Nytro 1351 Series XA3840LE10063 for Cisco UCS C-Series Server
Other Related Part Number: 2LW103-001
Overview
The Seagate Nytro 1351 XA3840LE10063 is an enterprise-grade Read Intensive (RI) Self-Encrypting Drive (SED) built for data centers, cloud platforms, and virtualization environments. Featuring 3D TLC NAND and a SATA 6Gb/s interface, it delivers reliable performance, strong endurance, and integrated security for Cisco UCS infrastructures.
Core Specifications
- Capacity: 3.84TB (3840GB)
- Interface: SATA III 6Gb/s
- Form Factor: 2.5" SFF (7mm)
- NAND Type: 3D TLC NAND
- Workload Type: Read Intensive (RI)
- Endurance: 1 DWPD (~12,300 TBW / 5 years)
- MTBF: 2,000,000 hours
Performance
- Sequential Read: Up to 560 MB/s
- Sequential Write: Up to 535 MB/s
- Random Read (4K): Up to 90,000 IOPS
- Random Write (4K): Up to 22,000 IOPS
- Latency: ~172 µs (read) / ~58 µs (write)
Security & Enterprise Features
- Encryption: AES-256 Self-Encrypting Drive (SED)
- TCG Opal Compliance
- Instant Secure Erase (ISE)
- Power Loss Protection (PLP)
- End-to-End Data Integrity (SHIELD / RAISE)
- DuraWrite™ Technology
Cisco UCS Server Compatibility
Cisco Systems UCS (One Line)
C220 M7, C240 M7; C220 M6, C225 M6, C245 M6; C220 M5, C240 M5; C220 M4, C240 M4; B200 M5, B200 M6, B480 M5; S3260 M5; X210c M6, X210c M7
Note

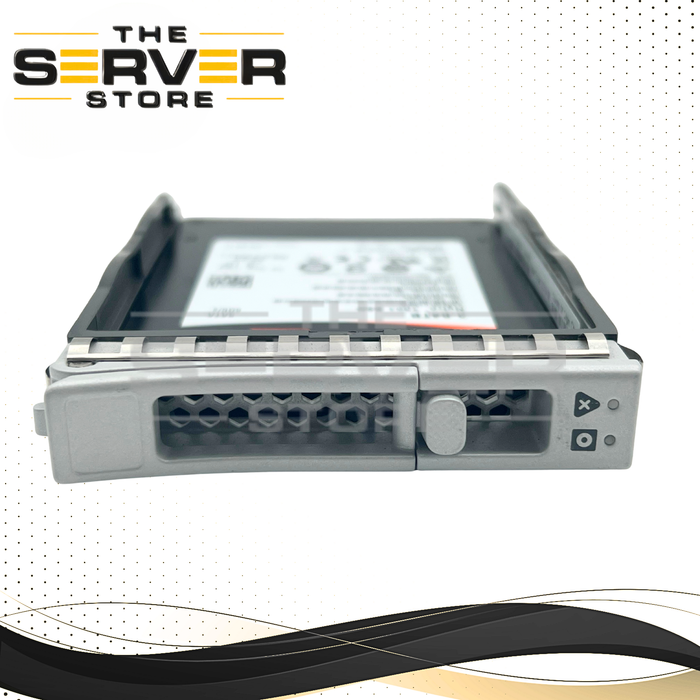

This SSD may be supplied with a Cisco UCS 2.5" SFF drive tray/caddy, allowing direct installation into compatible Cisco UCS servers without requiring an additional carrier.
Management & Monitoring
- UCS Manager (UCSM): Monitors SSD health, SMART status, and predictive failures
- UCSM Visore: Verify drive presence via storageLocalDisk class
- Cisco Intersight: Provides inventory visibility, firmware, and controller status
Compatibility Notes
- Requires 2.5" SFF 7mm SATA-compatible drive bays
- Must use a Cisco-compatible drive caddy (e.g., UCS-SATA-CADDY)
- Requires supported RAID controller (UCS-RAID-M5 / Tri-Mode controllers)
- Compatible with SATA or SAS backplanes (SAS supports SATA drives)
- May display as “Uncertified” or “Non-Genuine”, but operates normally
Summary
The Seagate Nytro 1351 3.84TB SSD is a reliable, secure, and fully compatible solution for Cisco UCS C-Series, B-Series, and modular systems, optimized for read-heavy enterprise workloads such as virtualization, web hosting, and large-scale data storage.
