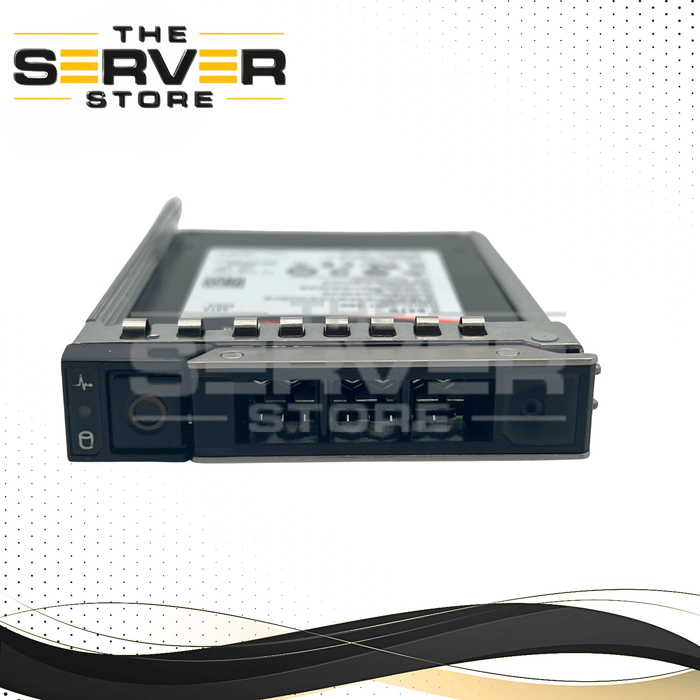

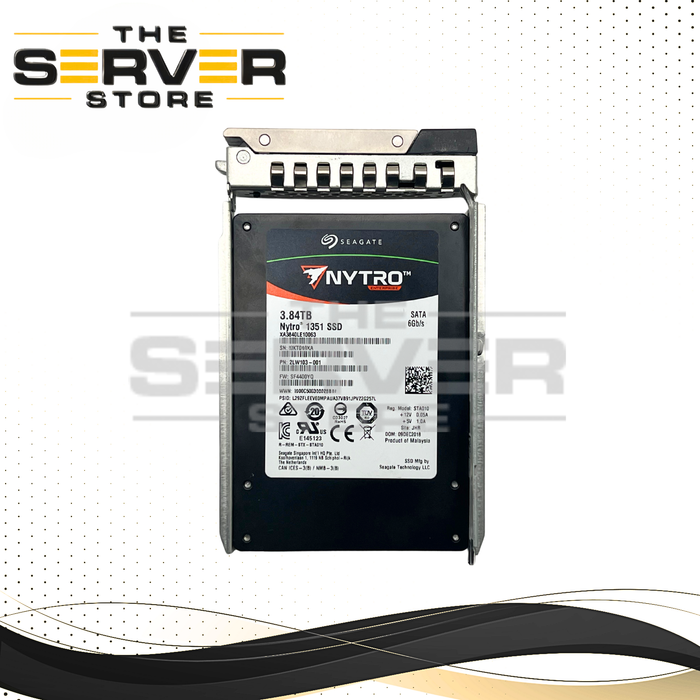

Seagate 3.84TB SATA 6G RI SFF 2.5" SED SSD Nytro 1351 Series XA3840LE10063 Dell PowerEdge Server Gen 16th 15th 14th
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | XA3840LE10063 (with Dell PowerEdge Gen16th 15th 14th Tray) |
| Manufacturer | |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Nytro 1351 Series |
| Form Factor | SFF 2.5" 7mm SSD (Read Description) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Seagate 3.84TB SATA 6G RI SFF 2.5" SED SSD Nytro 1351 Series XA3840LE10063 Dell PowerEdge Server Gen 16th 15th 14th
Overview
The Seagate Nytro 1351 XA3840LE10063 is an enterprise-grade Read Intensive (RI) Self-Encrypting Drive (SED) designed for modern data center and server environments. Built with 3D TLC NAND and a SATA 6Gb/s interface, it delivers dependable performance, strong endurance, and integrated AES-256 security. In **Dell Technologies PowerEdge systems, it is commonly used for virtualization, boot, and read-heavy workloads.
Core Specifications
- Capacity: 3.84TB (3840GB)
- Interface: SATA III 6Gb/s
- Form Factor: 2.5" SFF (7mm height)
- NAND Type: 3D TLC NAND
- Workload Type: Read Intensive (RI)
- Endurance: 1 DWPD (~12,300 TBW over 5 years)
- MTBF: 2,000,000 hours
Performance
- Sequential Read: Up to 560 MB/s
- Sequential Write: Up to 535 MB/s
- Random Read (4KB): Up to 90,000 IOPS
- Random Write (4KB): Up to 22,000 IOPS
- Latency: ~172 µs (read) / ~58 µs (write)
Power & Physical
- Power Consumption: ~3.5W active / ~1.2W idle
- Dimensions: 7mm (H) x 70.1mm (W) x 100.25mm (D)
- Weight: ~82g
- Operating Temperature: 0°C to 70°C
Security & Enterprise Features
- Encryption: AES-256 Self-Encrypting Drive (SED)
- TCG Opal Compliant
- Instant Secure Erase (ISE)
- Power Loss Protection (PLP)
- End-to-End Data Protection (SHIELD / RAISE)
- DuraWrite™ Technology
Dell PowerEdge Server Compatibility (with 0DXD9H Tray)
Dell 0DXD9H Drive Tray
R260, R360, T560, R660, R660xs, R6615, R6625, R760, R760xa, R760xs, R7615, R7625, R860, R960, HS5610, HS5620; R350, R450, T550, R550, R650, R650xs, R6515, R6525, R750, R750xa, R750xs, R7515, R7525, XE8545; R240, R340, R440, R540, R640, R740, R740xd, R740xd2, R840, R940, R940xa, R6415, R7415, R7425, T440, T640; XC640, XC740xd, XC940, XC6420; Precision 3930, Precision 7920
Drive Tray / Carrier Details
- Tray Model: Dell 0DXD9H / DXD9H
- Form Factor: 2.5" Small Form Factor (SFF) hot-swap carrier
- Supported Drives: SATA & SAS SSDs/HDDs (up to 15mm height)
- Interface Support: SATA, SAS, NVMe (U.2/U.3 compatible bays)
- Bay Requirement: 2.5" SFF front-access drive bays
Compatibility Notes
- Requires SATA-compatible controller/backplane (not NVMe-only bays)
- Works in SAS backplanes (backward compatible with SATA drives)
- Fully compatible with Dell 14G, 15G, and 16G servers using 0DXD9H trays
- May display as “Non-Dell Certified”, but functions normally
- Ideal for read-heavy workloads such as virtualization, web hosting, and content delivery
Summary
The Seagate Nytro 1351 3.84TB SSD, paired with the Dell 0DXD9H SFF tray, provides a fully compatible, high-performance storage solution for Dell PowerEdge 14th, 15th, and 16th Generation servers, offering strong reliability, enterprise security, and seamless integration into modern data center environments.
