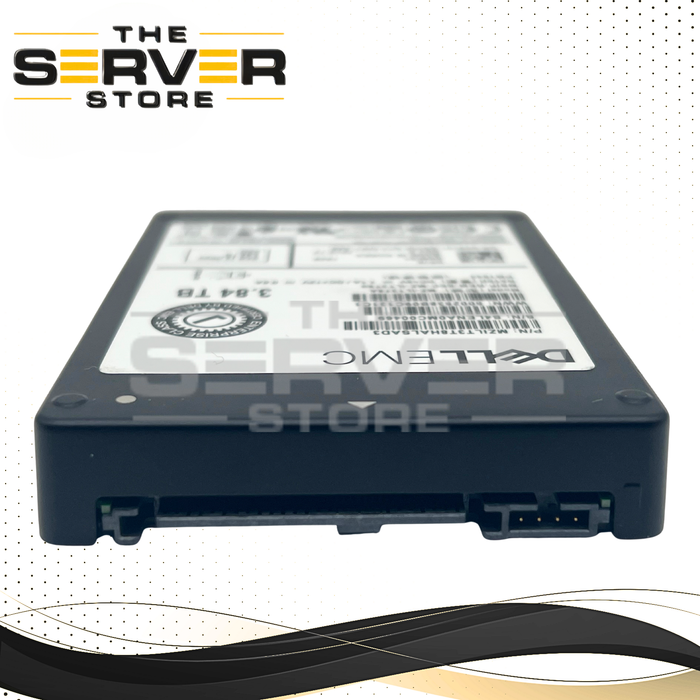

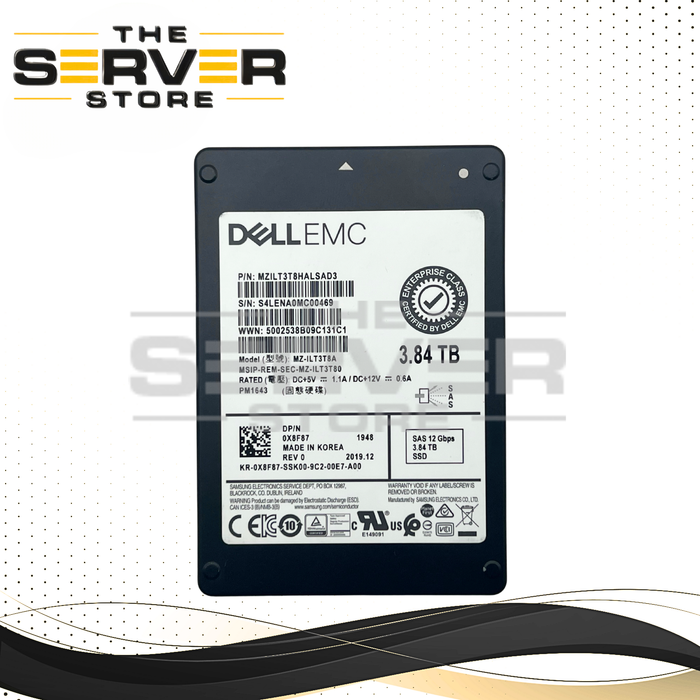

Dell EMC 3.84TB SAS 12G RI SFF 2.5" SSD Samsung PM1643 MZ-ILT3T8A 0X8F87 X8F87
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 0X8F87 X8F87 |
| Manufacturer | Dell |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drive |
| Model | Samsung PM1643 MZ-ILT3T8A |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell EMC 3.84TB SAS 12G RI 2.5" SSD Samsung PM1643 (MZ-ILT3T8A / 0X8F87 / X8F87)
The Dell X8F87 (0X8F87) is a 3.84TB enterprise SAS SSD based on the Samsung PM1643 series (model MZ-ILT3T8A). It is a Read Intensive (RI) drive engineered for high-capacity, read-heavy workloads such as virtualization, data analytics, and web-scale applications in enterprise environments.
Core Specifications
- Capacity: 3.84TB
- Interface: SAS 12Gb/s (Dual Port)
- Form Factor: 2.5-inch Small Form Factor (SFF), 15mm height
- NAND Type: Samsung V-NAND (3D TLC)
- Endurance: 1 DWPD (5 years)
- Reliability: 2.0 Million hours MTBF
Performance Metrics
- Sequential Read: Up to 2,100 MB/s
- Sequential Write: Up to 2,000 MB/s
- Random Read (4KB): Up to 450,000 IOPS
- Random Write (4KB): Up to 70,000 IOPS
- Power Consumption: 13.5W (Active Max) / 5W (Idle)
Server Compatibility
This drive is a Dell-certified SSD compatible with a wide range of PowerEdge servers from 11th through 16th Generation when used with the appropriate 2.5-inch hot-plug tray.
PowerEdge 16th Generation
- R660, R760, R6625
- XR5610, XR7620
PowerEdge 15th Generation
- R350, R450, R550
- R650, R650xs, R6515, R6525
- R750, R750xa, R750xs, R7515, R7525
- T150, T350, T550
PowerEdge 14th Generation
- R240, R340, R440, R540
- R640, R6415
- R740, R740xd, R740xd2, R7415, R7425
- R840, R940, R940xa
- T140, T340, T440, T640
PowerEdge 13th Generation
- R330, R430, R530
- R630, R730, R730xd
- R930
- T330, T430, T530, T630
PowerEdge 11th & 12th Generation
- R310, R320, R410, R420
- R510, R520
- R610, R620, R710, R720, R720xd
- R810, R820, R910, R920
Storage & Modular Compatibility
- PowerVault Storage: MD1400, MD1420
- Modular / Blade Systems: FC640, M630, M640, MX740c, MX750c, MX840c, MX5016s
- Edge Systems: XR2, XR11, XR12
Compatibility Notes
- Requires appropriate Dell 2.5" hot-swap carrier (DXD9H for 14Gā16G, older trays for legacy systems)
- Fully compatible with Dell PERC RAID and HBA controllers supporting SAS drives
- Optimized for read-intensive enterprise workloads
Related Part Numbers
- 0X8F87
- X8F87
- MZ-ILT3T8A
- MZILT3T8HALSAD3
Functional Equivalent SSDs
- XCRDV / 0XCRDV
- 3DDFT / 03DDFT
- FV3JW / 0FV3JW
- MT0R5 / 0MT0R5
- JR1HP / 0JR1HP
- M09K5 / 0M09K5
- 41XNY / 041XNY
- N85XX / 0N85XX
- H9TT5 / 0H9TT5
- 4NMJF / 04NMJF
- 91W3V / 091W3V
- 9N32F / 09N32F
- YM9HP / 0YM9HP
- YW17N / 0YW17N
- FH1W9 / 0FH1W9
- CT0H2 / 0CT0H2
- TT26V / 0TT26V
The Dell EMC 3.84TB SAS 12G RI SSD (Samsung PM1643) delivers enterprise-grade reliability, high throughput, and broad compatibility across Dell PowerEdge servers and storage systems, making it an excellent solution for read-intensive data center workloads.
