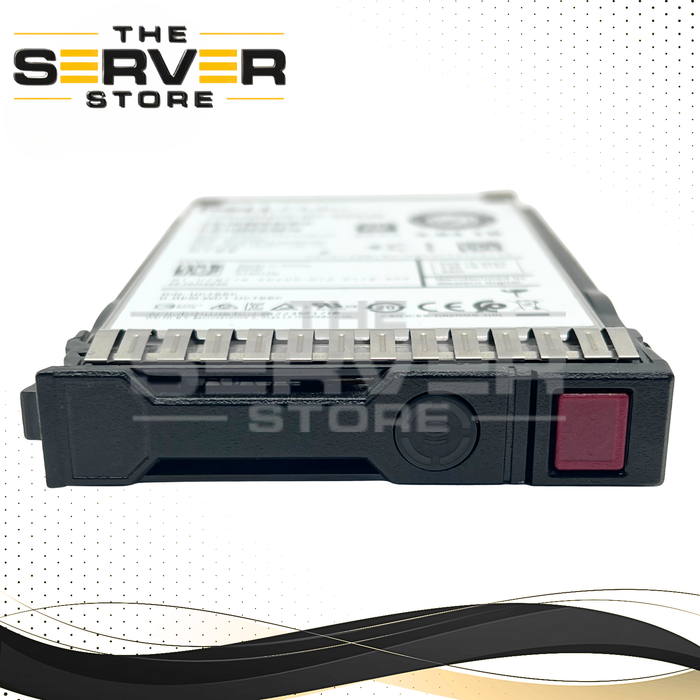

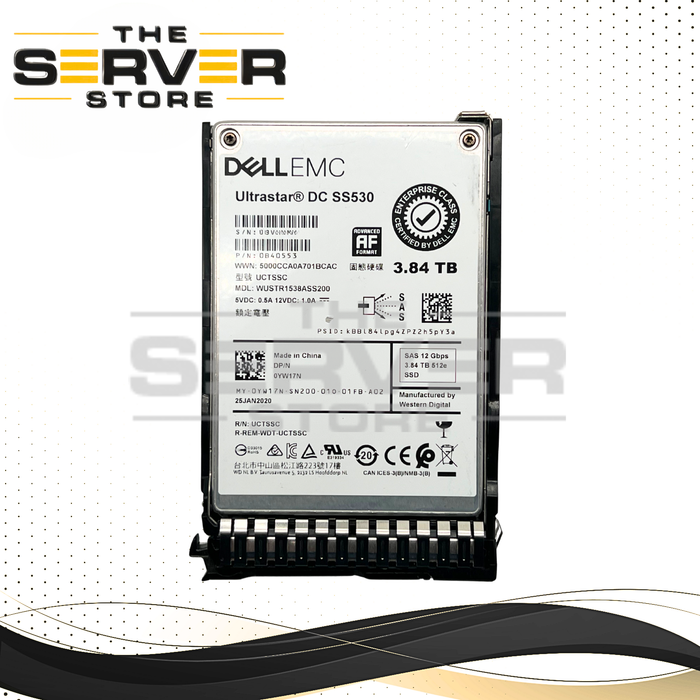

(New Open Box) Western Digital (WD) 3.84TB SAS 12G RI (with SFF SC Tray) 2.5" SSD DC SS530 Series WUSTR1538ASS200 for HPE ProLiant Servers
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | WUSTR1538ASS200 (with HPE SFF SC Tray) |
| Manufacturer | Western Digital (WD) |
| Condition | (New Open Box) (New Open Box (NOB). 10-50 Power on Hours (POH) from initial systems testing. |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | DC SS530 Series |
| Form Factor | SFF 2.5" SSD (Read Description) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Western Digital (WD) 3.84TB SAS 12G RI SFF 2.5" SSD WD DC SS530 WUSTR1538ASS200
Other Related Part Numbers: 0B40553, WUSTR1538ASS200
Overview
The Western Digital Ultrastar DC SS530 (WUSTR1538ASS200) is a high-performance Read Intensive (RI) enterprise SSD designed for demanding data center workloads. Built on 3D TLC NAND with a dual-port SAS 12Gb/s interface, it is optimized for virtualization, database analytics, and high-throughput storage environments in Dell Technologies PowerEdge servers.
Core Specifications
- Capacity: 3.84TB
- Interface: Dual-port SAS 12Gb/s (backward compatible with 6Gb/s)
- Form Factor: 2.5-inch SFF (15mm height)
- NAND Type: 3D TLC NAND
- Workload Type: Read Intensive (RI)
- Endurance: 1 DWPD (5 years)
- Total Bytes Written: ~7,000 TBW
Performance
- Sequential Read: Up to 2,150 MB/s
- Sequential Write: Up to 2,120 MB/s
- Random Read (4K): Up to 440,000 IOPS
- Random Write (4K): Up to 100,000 IOPS
Reliability & Power
- MTBF: 2.5 million hours
- AFR: 0.35%
- Power Consumption: ~3.2W idle / 9W–14W active (configurable)
Security Features
- Instant Secure Erase (ISE)
- Enterprise-grade data protection and reliability features
Dell PowerEdge Server Compatibility
15th Generation
R250, R350, R450, R550, R650, R650xs, R750, R750xs, R750xa, T350, T550
14th Generation
R240, R340, R440, R540, R640, R6415, R740, R740xd, R740xd2, R7415, R7425, R840, R940, R940xa, T340, T440, T640
13th Generation
R330, R430, R630, R730, R730xd, R830, R930, T430, T630
12th Generation
R320, R420, R620, R720, R720xd, R820, R920, T320, T420, T620
Dell Modular, Cloud & Workstation Compatibility
- C-Series: C6320, C6420, C6520
- M-Series (Blade): M630, M640
- Precision Rack: 7920 Rack, R7910
Dell Storage Array Compatibility
- PowerVault Series: ME4024, MD1420
Full Server Compatibility (Multi-Manufacturer)
Lenovo ThinkSystem Servers
Used as equivalent to Lenovo SS530 SAS RI drives:
- Rack: SR630, SR630 V2/V3, SR650, SR650 V2/V3, SR645 V3, SR655 V3
- Tower: ST250 V3, ST550, ST650 V2
- High Performance / GPU: SR660 V2, SR680a V3, SR780a V3
- Storage Systems: DE4000H, D1224
Requires Lenovo SFF hot-swap tray and Lenovo-certified firmware for full support.
HPE ProLiant Servers
Classified as Read Intensive SAS SSD with Smart Carrier (SC):
- Rack: DL360 Gen9/Gen10/Gen10 Plus, DL380 Gen9/Gen10/Gen10 Plus, DL325 Gen10, DL385 Gen10
- Tower: ML350 Gen9/Gen10
- Blade: BL460c Gen9/Gen10
- Storage: MSA 1060, MSA 2060, MSA 2062
Best performance with HPE Smart Carrier and digitally signed firmware.
Cisco UCS Servers
Supported across UCS platforms with SAS controllers:
- C-Series Rack: C220 M4/M5/M6, C240 M4/M5/M6, C460 M4, C480 M5
- B-Series Blades: B200 M3/M4/M5/M6, B480 M5
Requires Cisco SAS RAID/HBA controller; may show as non-certified if not Cisco-branded.
Supermicro SuperServers
Broad compatibility with standard SAS backplanes:
- Ultra Series: SYS-1029U, SYS-2029U, SYS-6029U
- BigTwin / FatTwin: SYS-2029BT, SYS-6029BT
- GPU Systems: SYS-4126GS, SYS-A21GE, SYS-822GS
Requires standard Supermicro 2.5" hot-swap tray.
Compatibility Notes
- Requires 2.5" SFF SAS backplane (not SATA-only systems).
- Backward compatible with older SAS 6Gb/s controllers (reduced speed).
- OEM systems may show “Non-Authentic / Uncertified” warnings.
- Proper manufacturer-specific tray/caddy is required for installation.
Compatibility Notes
- Requires 2.5" SFF SAS backplane and compatible RAID/HBA controller
- Fully backward compatible with 6Gb/s SAS systems (reduced speed)
- Requires correct Dell hot-swap drive tray (generation dependent)
- OEM firmware ensures full compatibility with Dell management tools
- Ideal for read-heavy workloads, virtualization, and enterprise storage environments
Summary
The Dell 3.84TB SAS SSD, based on the Ultrastar DC SS530 platform, delivers strong enterprise performance and reliability across Dell PowerEdge 12th through 15th generation servers, including rack, tower, blade, and storage systems.
