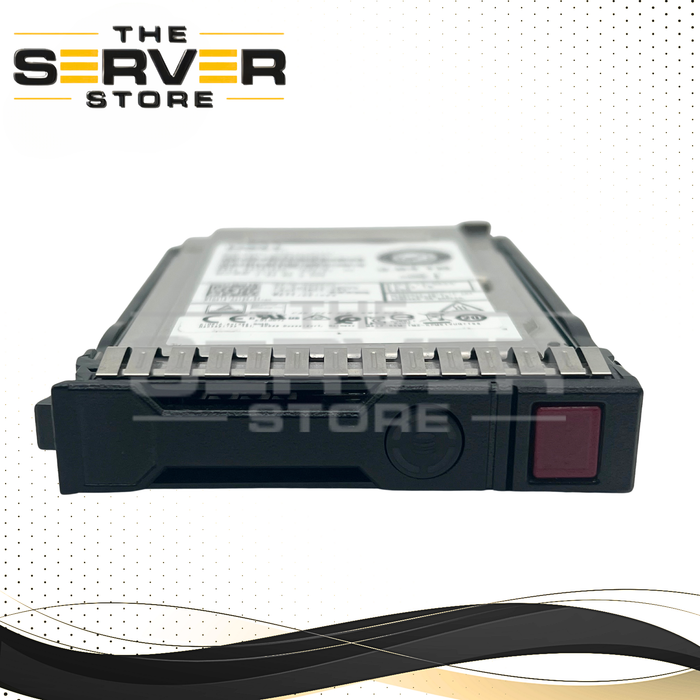

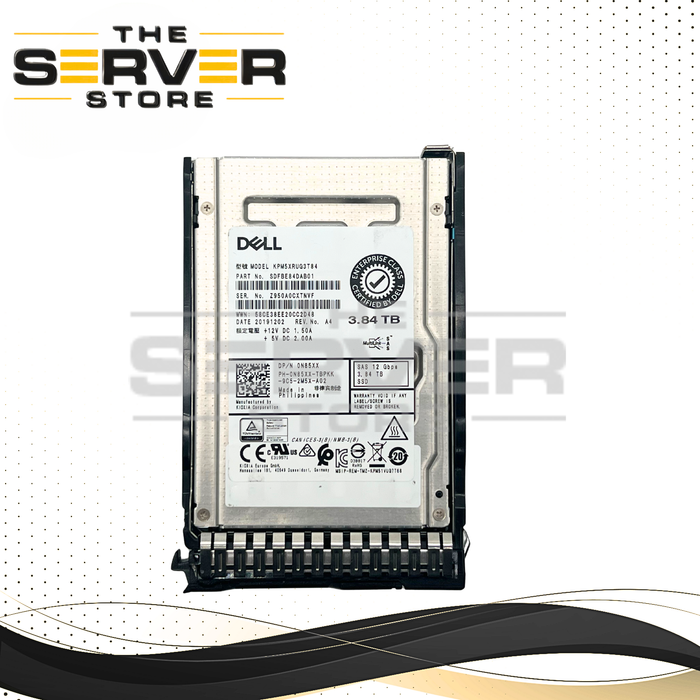

(New Open Box) Kioxia 3.84TB SAS 12G RI 2.5" SSD PM5-R KPM5XRUG3T84 (With SFF SC Tray) for HPE ProLiant Server Gen 8 Gen 9 Gen 10
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | KPM5XRUG3T84 (With HPE SFF SC Tray) |
| Manufacturer | Kioxia |
| Condition | New Open Box (10-20 Power On Hours for initial Testing) |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | PM5-R Series |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Kioxia 3.84TB SAS 12G RI SFF 2.5" SSD PM5-R (KPM5XRUG3T84 / SDFBE84DAB01)
Note: New Open Box (NOB). Power On Hours (POH) may be present from initial system testing.
The Kioxia 3.84TB SAS 12G PM5-R SSD (KPM5XRUG3T84 / SDFBE84DAB01) is a high-performance enterprise-grade solid-state drive designed for read-intensive workloads in modern data centers. Built with Kioxia (formerly Toshiba) 3D TLC NAND technology, this SSD delivers reliable, high-throughput performance for applications such as web services, media streaming, and data warehousing.
Featuring dual-port 12Gb/s SAS connectivity and a 2.5-inch 15mm SFF form factor, it ensures seamless integration into enterprise servers and storage arrays, including HPE ProLiant systems and compatible platforms.
Note: Compatible with HPE Smart Carrier tray: 651687-001
Core Specifications
- Capacity: 3.84TB
- Form Factor: 2.5-inch SFF (15mm height)
- Interface: SAS-3 12Gb/s dual-port (backward compatible with 6Gb/s)
- NAND Type: 64-layer BiCS FLASH 3D TLC
- Endurance Class: Read-Intensive (RI), 1 DWPD (5 years)
- MTTF: 2,500,000 hours
Key Features
-
Enterprise Reliability:
Designed for mission-critical environments with high endurance and stability -
Power Loss Protection (PLP):
Enhanced data protection in the event of unexpected power failure -
Data Integrity:
Supports T10 DIF and 512e emulation -
Optimized for Read-Intensive Workloads:
Ideal for content delivery, analytics, and database applications
Performance Specifications
| Metric | Performance |
|---|---|
| Sequential Read (128KiB) | Up to 2,100 MB/s |
| Sequential Write (128KiB) | Up to 2,100 MB/s |
| Random Read (4KiB) | Up to 370,000 IOPS |
| Random Write (4KiB) | Up to 55,000 IOPS |
Server & Storage Compatibility
HPE Smart Carrier (SC) Compatibility
The 651687-001 is a 2.5-inch Small Form Factor (SFF) Smart Carrier tray used across HPE ProLiant servers from Gen8 through Gen10. It is the standard drive carrier for SFF SAS/SATA drives and SSDs in these systems.
Compatible HPE ProLiant Servers
DL Series (Rackmount)
- Gen10: DL20, DL160, DL325, DL360, DL380, DL385, DL560, DL580
- Gen9: DL20, DL60, DL80, DL120, DL160, DL180, DL360, DL380, DL388, DL560, DL580
- Gen8: DL160, DL320e, DL360e, DL360p, DL380e, DL380p, DL385p, DL388p, DL560, DL580
ML Series (Tower)
- Gen10: ML30, ML110, ML350
- Gen9: ML30, ML110, ML150, ML350
- Gen8: ML310e, ML350e, ML350p
BL Series (Blade)
- Gen8 & Gen9: BL420c, BL460c, BL465c, BL660c
Other HPE Platforms
- Apollo: 2000, 4200, 4500, XL170r, XL190r, XL220a, XL230a, XL250a (Gen9)
- Synergy: 480, 660 (Gen9 / Gen10)
- Storage Arrays: D3700, D3710, D2220sb, StoreEasy 1830, 1840
Related Part Numbers
- KPM5XRUG3T84
- SDFBE84DAB01
- 651687-001
The Kioxia 3.84TB SAS 12G RI SFF SSD (PM5-R series) offers enterprise-grade performance, strong reliability, and seamless compatibility with HPE Gen8–Gen10 server platforms, making it an excellent choice for modern data center environments requiring high-speed, read-intensive storage solutions.
