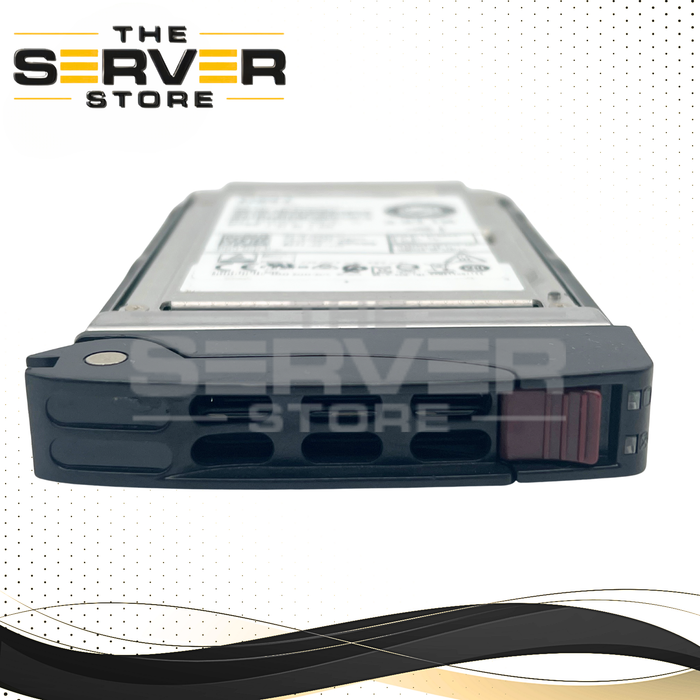

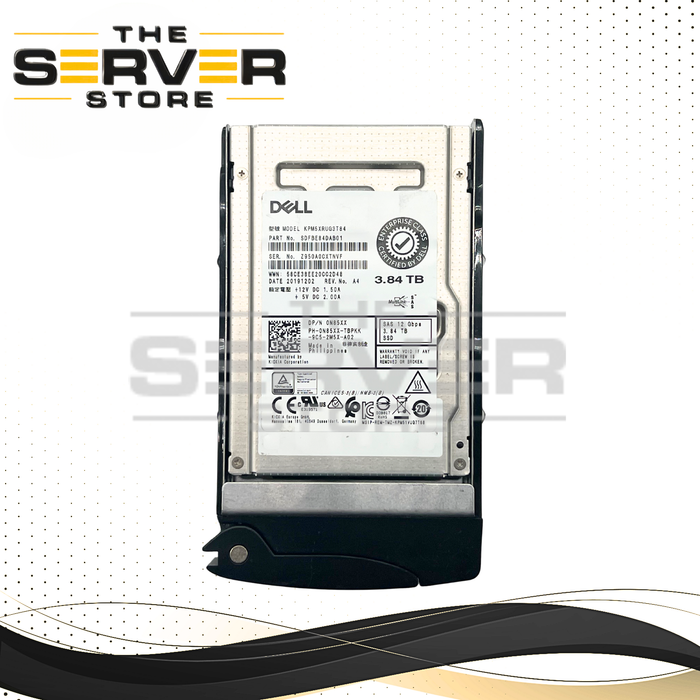

(New Open Box) Kioxia 3.84TB SAS 12G RI 2.5" SSD PM5-R KPM5XRUG3T84 For Supermicro Server
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | KPM5XRUG3T84 (With SFF Supermicro Tray) |
| Manufacturer | Kioxia |
| Condition | New Open Box (10-20 Power On Hours for initial Testing) |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | PM5-R Series |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Kioxia 3.84TB SAS 12G RI SFF 2.5" SSD PM5-R (KPM5XRUG3T84 / SDFBE84DAB01)
Note: New Open Box (NOB). Power On Hours (POH) may be present from initial system testing.
The Kioxia 3.84TB SAS 12G PM5-R SSD (KPM5XRUG3T84 / SDFBE84DAB01) is a high-performance enterprise-grade solid-state drive designed for read-intensive workloads in modern data centers. Built with Kioxia (formerly Toshiba) 3D TLC NAND technology, this SSD delivers reliable, high-throughput performance for applications such as web services, media streaming, and data warehousing.
Featuring dual-port 12Gb/s SAS connectivity and a 2.5-inch 15mm SFF form factor, it ensures seamless integration into enterprise servers and storage arrays, including Dell PowerEdge systems and compatible platforms.
Note: This drive may use Supermicro tray: 01-SB16105-XX00C102
Core Specifications
- Capacity: 3.84TB
- Form Factor: 2.5-inch SFF (15mm height)
- Interface: SAS-3 12Gb/s dual-port (backward compatible with 6Gb/s)
- NAND Type: 64-layer BiCS FLASH 3D TLC
- Endurance Class: Read-Intensive (RI), 1 DWPD (5 years)
- MTTF: 2,500,000 hours
Key Features
-
Enterprise Reliability:
Designed for mission-critical environments with high endurance and stability -
Power Loss Protection (PLP):
Enhanced data protection in the event of unexpected power failure -
Data Integrity:
Supports T10 DIF and 512e emulation -
Optimized for Read-Intensive Workloads:
Ideal for content delivery, analytics, and database applications
Performance Specifications
| Metric | Performance |
|---|---|
| Sequential Read (128KiB) | Up to 2,100 MB/s |
| Sequential Write (128KiB) | Up to 2,100 MB/s |
| Random Read (4KiB) | Up to 370,000 IOPS |
| Random Write (4KiB) | Up to 55,000 IOPS |
Server & Storage Compatibility
Compatible Supermicro Systems & Chassis
This drive and tray combination is validated for multiple Supermicro platforms:
SuperChassis (CSE) Series
- CSE-111T-560CB
- CSE-118-20
- CSE-116-5
- CSE-119 / CSE-119U
- CSE-219U-R16X12
- CSE-418GTS-R4000BP2
SuperServer (SYS) Series
- SYS-1029GQ-TNRT
- SYS-1019P-WTR
- SYS-1028UX-CR-LL1
- SYS-220U-TNR
- SYS-4029GP-TRT
Related Part Numbers
- KPM5XRUG3T84
- SDFBE84DAB01
- 01-SB16105-XX00C102
The Kioxia 3.84TB SAS 12G RI SFF SSD (PM5-R series) offers enterprise-grade performance, strong reliability, and broad compatibility, making it an excellent choice for modern data center environments requiring high-speed, read-intensive storage solutions.
