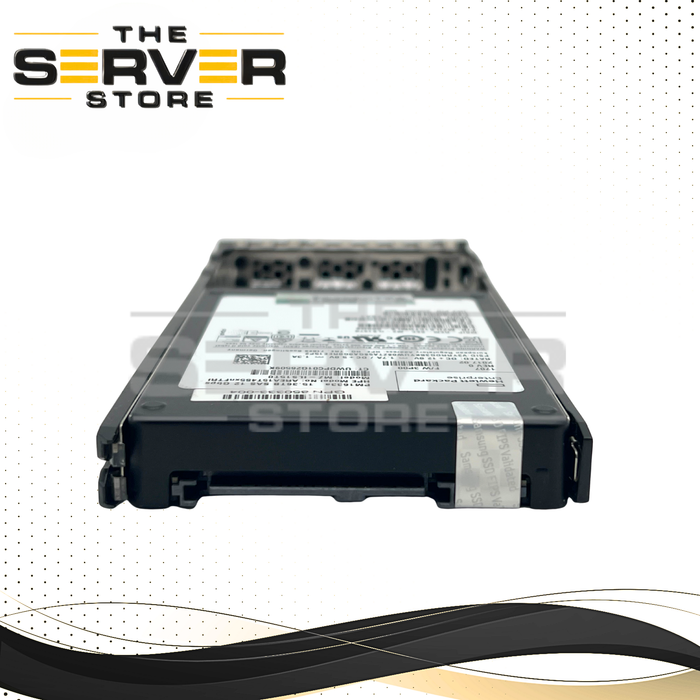

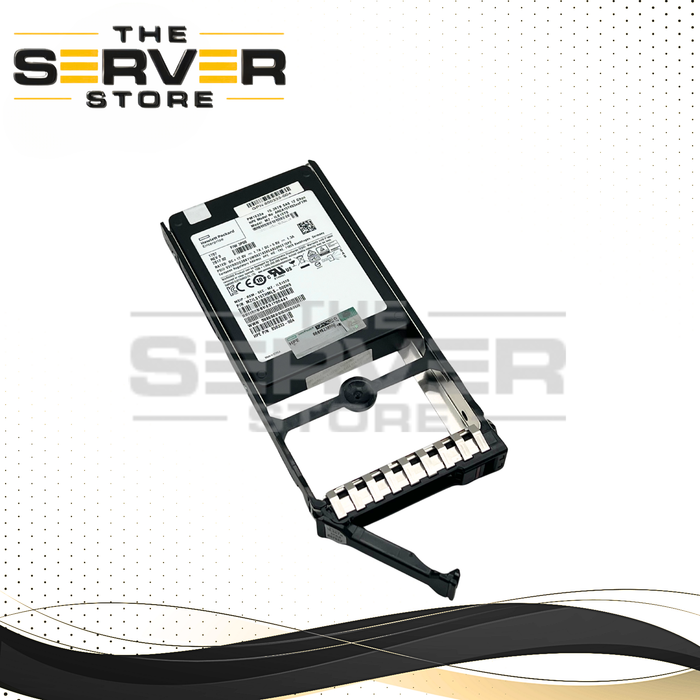

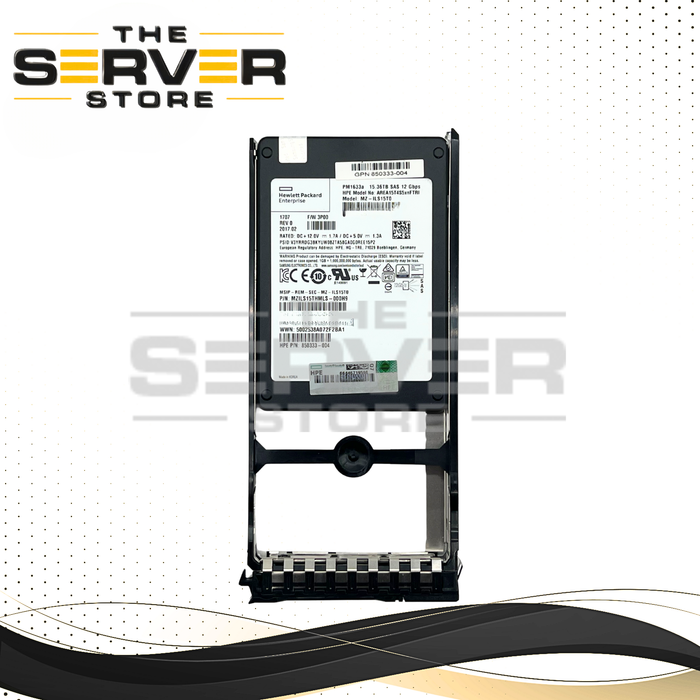

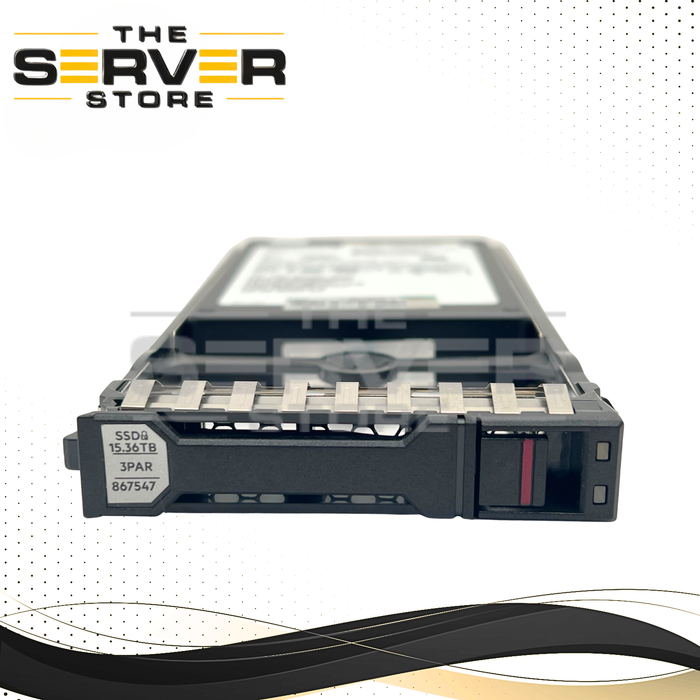

HPE 3PAR 15.36TB SAS 12G RI 2.5" SED SSD Samsung PM1633a MZ-ILS15T0 Q0F46A 867547-001
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | Q0F46A / 867547-001 |
| Manufacturer | HPE |
| Condition | Refurbished (HPE 3PAR – Before you buy, please read the note in the description.) |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Samsung PM1633a MZ-ILS15T0 |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
HPE 3PAR 15.36TB SAS 12G RI 2.5" SED SSD Samsung PM1633a MZ-ILS15T0 Q0F46A 867547-001
The HPE 867547-001 is a high-capacity 15.36TB enterprise SAS SSD engineered specifically for HPE 3PAR StoreServ storage environments. Based on the Samsung PM1633a series (model MZ-ILS15T0), this drive is classified as Read Intensive (RI) and features Self-Encrypting Drive (SED) capabilities with AES-256 hardware encryption, making it ideal for secure, high-density flash storage tiers in mission-critical data centers.
NOTE: This drive uses a 512-byte emulated logical sector size with a 4K (4096-byte) physical sector size. In certain enterprise environments, it may be possible to reformat the drive to 4Kn or 520-byte sectors (commonly used in systems like NetApp or legacy 3PAR) using specialized SCSI tools. This process is recommended only for advanced users and typically in non-production or testing environments.
Core Specifications
- Capacity: 15.36TB
- Interface: SAS 12Gb/s (Dual Port)
- Form Factor: 2.5-inch SFF (15mm height)
- NAND Type: Samsung V-NAND (3D TLC)
- Endurance: 1 DWPD (Drive Writes Per Day) for 5 years
- Reliability: 2,000,000 hours MTBF
- Security: Self-Encrypting Drive (SED), AES-256, FIPS 140-2 Level 2
Performance Specifications
- Sequential Read: Up to 1,250 MB/s
- Sequential Write: Up to 1,250 MB/s
- Random Read (4K): Up to 200,000 IOPS
- Random Write (4K): Up to 35,000 IOPS
Key Features
Enterprise Flash Performance:
Optimized for read-heavy workloads in high-capacity storage tiers
Advanced Security (SED):
AES-256 hardware encryption with FIPS 140-2 Level 2 compliance
High Reliability:
Designed for continuous operation in mission-critical storage arrays
Optimized for 3PAR Systems:
Fully validated for seamless integration with HPE 3PAR StoreServ platforms
HPE 3PAR StoreServ Compatibility
This SSD is designed for HPE 3PAR StoreServ systems that support 12G SAS SFF drives.
3PAR StoreServ 20000 Series
20800, 20840, 20850
3PAR StoreServ 8000 Series
8200, 8400, 8440, 8450
3PAR StoreServ 9000 Series
Supported in advanced enterprise configurations
Important Usage Note
-
Encryption Management:
SED functionality is controlled at the array level and requires an active HPE 3PAR Encryption License
Related Part Numbers
- 867547-001 (Spare Part Number)
- Q0F46A (Option Part Number)
- 850333-004 (Assembly Number)
- P08733-001
- AREA15T4S5xnFTRI
- MZ-ILS15T0 (Samsung Model)
- MZILS15THMLS-000H9
The HPE 15.36TB SAS 12G RI SED SSD (PM1633a series) delivers exceptional capacity, enterprise-grade reliability, and advanced encryption, making it an ideal solution for secure, high-performance flash storage in HPE 3PAR environments.
