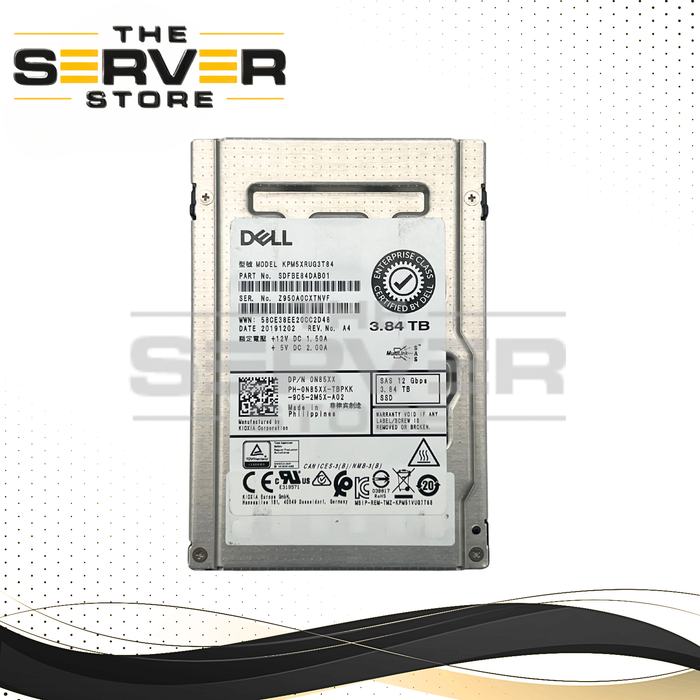

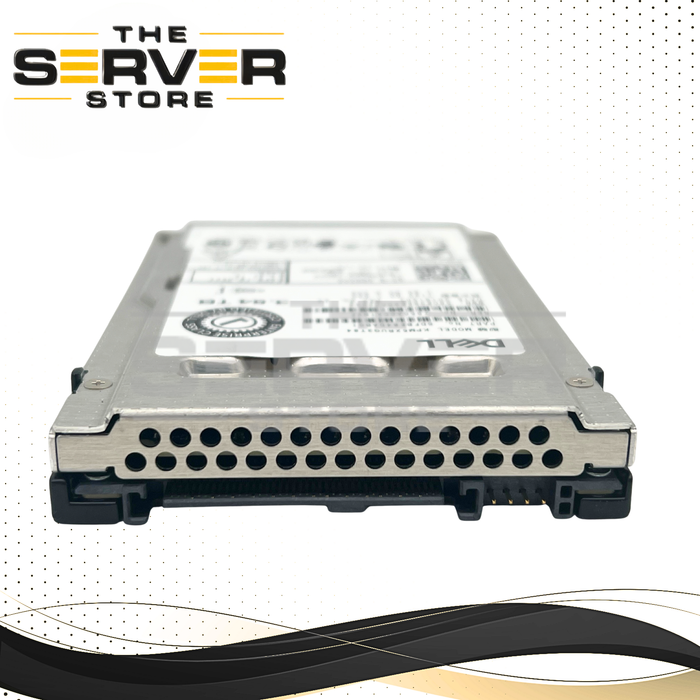

Dell 3.84TB SAS 12G RI SFF 2.5" SSD Toshiba PM5-R KPM5XRUG3T84 0N85XX N85XX

Dell 3.84TB SAS 12G RI SFF 2.5" SSD Toshiba PM5-R KPM5XRUG3T84 0N85XX N85XX

$0.00 - $0.00
$0.00
$759.99
$759.99 - $759.99
$759.99
SKU N85XX
Availability:
50+ in stock

In-store Pickup

Local Pickup in Dallas, TX Available

Shopify Product Page with Tabs
  • Specifications
  • Description
Manufacturer Part Number
Manufacturer
Condition
Standard Warranty 90 Day Replacement Warranty
Item Category
Model
Form Factor
Interface
External Interfaces
Storage Capacity
Transfer Rate
Network Management Type
Processor Type
Clock Speed
Number of Cores
Cache
Socket Type
TDP
Compatible Port
Number of Ports
CPU Type
HDD Form Factor
HDD Interface
HDD Rotation Speed
HDD Storage Capacity
HDD Transfer Rate
Memory Bus Speed
Memory Capacity Per Module
Memory Features
Memory Form Factor
Memory Kit Brand
Memory Kit Breakdown
Memory Kit Speed
Memory Kit Technology
Memory Kit Total Capacity
Memory Kit Voltage
Memory Number of Modules
Memory Number of Pins
Memory Total Capacity
Memory Type
Network Ports
Processor Model
SSD Capacity
SSD Interface
SSD Storage Capacity
SSD Transfer Rate
SSD Type

Dell 3.84TB SAS 12G RI SFF 2.5 SSD Toshiba PM5-R

The Dell 0N85XX (KPM5XRUG3T84 / N85XX / SDFBE84DAB01) is a high-performance 3.84TB enterprise-grade SAS SSD designed for read-intensive workloads in modern data centers. Manufactured by Toshiba/Kioxia as part of the PM5-R series, this SSD is optimized for applications such as web services, media streaming, and data warehousing, offering high throughput and low latency for enterprise storage environments.

This 2.5-inch SFF drive uses dual-port 12Gb/s SAS connectivity, is backward compatible with 6Gb/s, and supports a 15mm z-height form factor for flexible integration into Dell PowerEdge servers or compatible storage arrays.

Key Features

  • Capacity: 3.84TB

  • Form Factor: 2.5-inch SFF, 15mm z-height

  • Interface: SAS-3 12Gb/s dual-port, backward compatible with 6Gb/s

  • NAND Type: 64-layer BiCS FLASH 3D TLC

  • Endurance Class: Read-Intensive (RI), 1 DWPD over 5 years

  • Reliability: 2,500,000 hours MTTF

  • Key Technologies: Enhanced Power Loss Data Protection (PLP), T10 DIF, 512e emulation

  • Other Related Part Numbers: 0N85XX, KPM5XRUG3T84, SDFBE84DAB01

Performance Specifications

Metric Performance Rating
Sequential Read (128 KiB) Up to 2,100 MB/s
Sequential Write (128 KiB) Up to 2,100 MB/s
Random Read (4 KiB) 370,000 IOPS
Random Write (4 KiB) 55,000 IOPS

This ensures high-speed performance for demanding read-intensive workloads in server and storage environments.

Server & Storage Compatibility

Dell PowerEdge Servers (13G–16G)

Generation 14–16 (Modern Screwless Caddy DXD9H / MKC9M):

  • 16G: R760, R660, R7625, R6625, T560

  • 15G: R750, R650, R7525, R6525, R550, T550

  • 14G: R740, R740xd, R640, R440, R540, T440, T640

Generation 11–13 (Legacy Caddy G176J / 8FKXC):

  • 13G: R730, R730xd, R630, R430, T430, T630

  • 12G: R720, R720xd, R620, R420, T620

  • 11G: R710, R610, T610, R510 (2.5" chassis)

Hybrid / 3.5-inch Bay Adapter:

  • Adapter/Tray Part Numbers: X7K8W, 701CC

  • Function: Allows 2.5-inch SSDs to fit into 3.5-inch hot-swap bays

Dell PowerVault Storage Arrays

ME4 Series (First Generation, 2018–2019):

  • ME4012, ME4024, ME4084

  • 2U–5U chassis with 12–84 drive bays

  • Intel 2-core processors, 8GB cache per controller

ME5 Series (Second Generation, 2022):

  • ME5024 (along with ME5012, ME5084)

  • Upgraded Intel Xeon processors, 16GB memory per controller

  • ~2× the performance (IOPS & bandwidth) of ME4

Backward Compatibility:

  • ME4 expansion enclosures compatible with ME5 base arrays for scaling

  • Asynchronous replication supported between ME4 and ME5

Encryption / SED Options

The 0N85XX / KPM5XRUG3T84 drive is primarily a standard Read-Intensive SAS SSD with Instant Secure Erase (ISE) support for fast data sanitization.

  • SED Availability: Optional SED version available as KPM5WRUG3T84, featuring FIPS 140-2 validated encryption.

  • Identification:

    • Drives labeled KPM5XR… are standard ISE models

    • Drives labeled KPM5WR… indicate SED with built-in encryption controller

  • Management: Dell iDRAC / Storage Manager will indicate SED support if installed

The Dell 3.84TB SAS 12G RI SFF SSD (0N85XX / KPM5XRUG3T84) offers enterprise-grade performance, flexible server compatibility, and optional secure encryption, making it ideal for modern read-intensive data center workloads.
