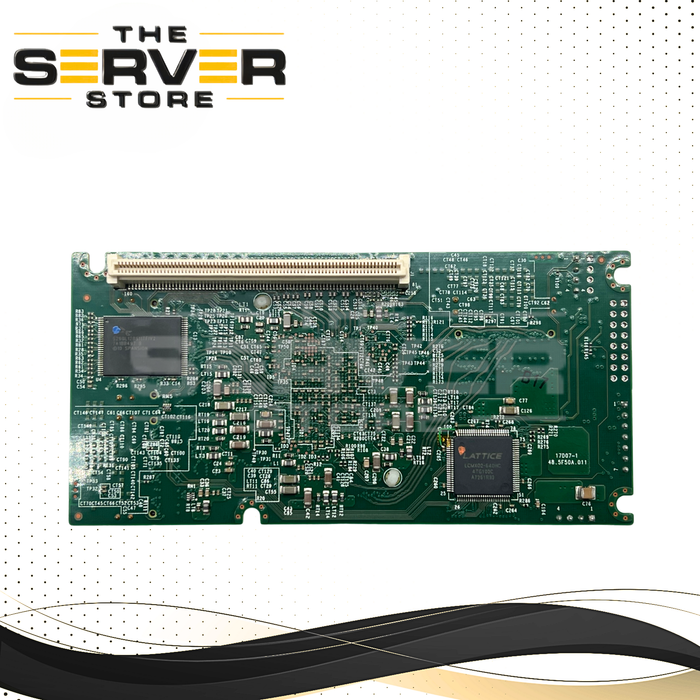

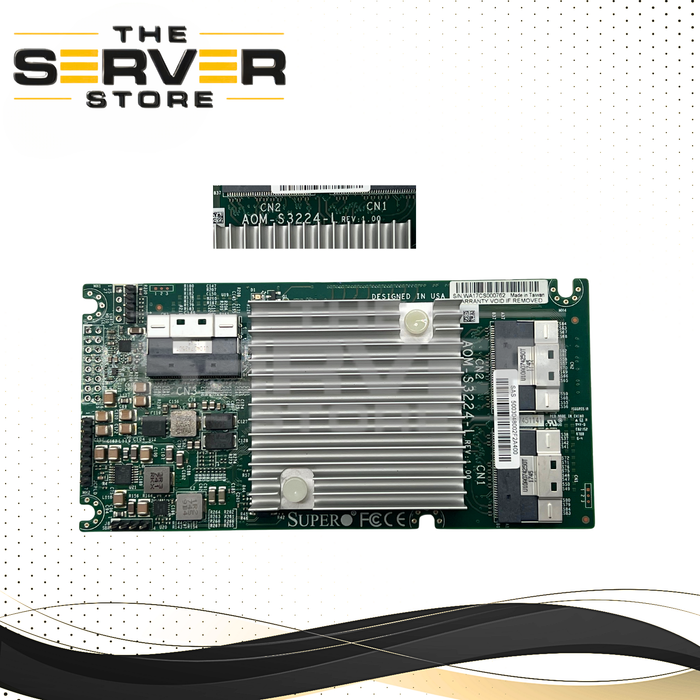

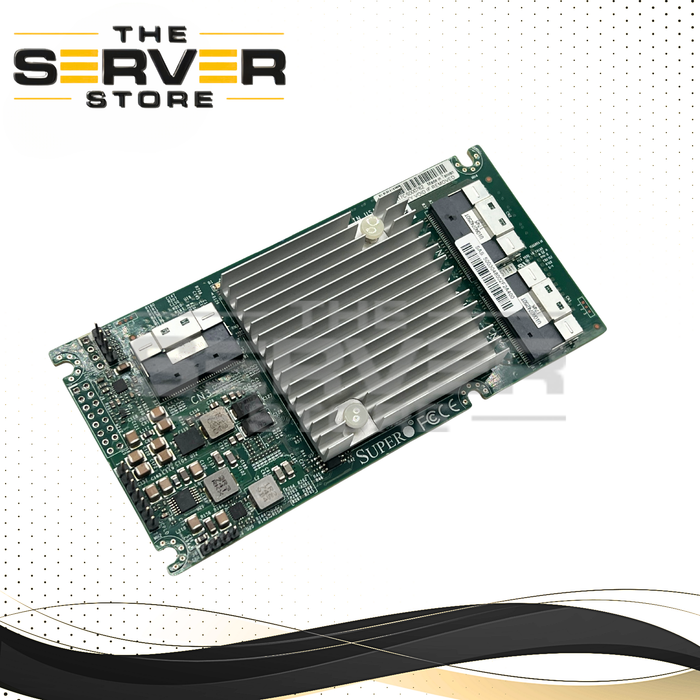

Supermicro 24 Port 12Gb/s SAS3 PCIe Mezzanine RAID Controller Card AOM-S3224-L
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | AOM-S3224-L |
| Manufacturer | Supermicro |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | RAID, HBA, & Storage Controllers |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
The Supermicro AOM-S3224-L 24-Port 12Gb/s SAS3 PCIe Mezzanine RAID Controller Card is a high-performance enterprise storage controller engineered for scalable, high-throughput server environments. Built on Broadcom 3224 SAS-3 technology, this low-profile mezzanine card delivers exceptional connectivity, reliability, and expansion capability for modern data centers.
Designed to support large-scale SAS and SATA storage deployments, the AOM-S3224-L provides 24 internal ports with 12Gb/s SAS performance per port, making it ideal for dense storage systems, virtualization platforms, and cloud infrastructure.
Key Specifications
-
Manufacturer: Supermicro
-
Model: AOM-S3224-L
-
Controller Chip: Broadcom 3224 24-port SAS-3 controller
-
Form Factor: Low-Profile PCIe Mezzanine Card
-
Host Interface: PCI Express Plug-In Module
-
Port Count: 24 internal ports
-
Connector Type: Twin SFF-8654 connectors
Performance & Protocol Support
-
SAS Speed: Up to 12Gb/s per port
-
SATA Speed: Up to 6Gb/s
-
Supported Protocols: SSP, SMP, STP, and SATA
-
Device Support: Up to 2000 connected devices
RAID & Storage Capabilities
-
RAID Levels Supported: RAID 0, 1, 5, 6, 10, and JBOD
-
Data Protection: Advanced error recovery and integrity protection features
-
Scalability: Designed for large, complex storage architectures
Physical & Compliance
-
Dimensions: Approx. 2.6" x 5.3"
-
Compliance: RoHS 6/6, Lead-Free (Pb-Free)
Operating System Support
-
Microsoft Windows: Server 2012, 2008 (32/64-bit)
-
Linux: Red Hat Enterprise Linux, SUSE Linux
Features & Compatibility
-
High Throughput: Optimized for data-intensive workloads and enterprise applications
-
Easy Management: Intuitive configuration and monitoring interface
-
Server Compatibility: Designed for Supermicro enterprise platforms, including compatibility with X11DDW-NT motherboards
The Supermicro AOM-S3224-L SAS3 RAID Mezzanine Card is a powerful and flexible storage controller solution for organizations that demand maximum port density, enterprise-grade RAID support, and scalable performance in mission-critical server environments.
