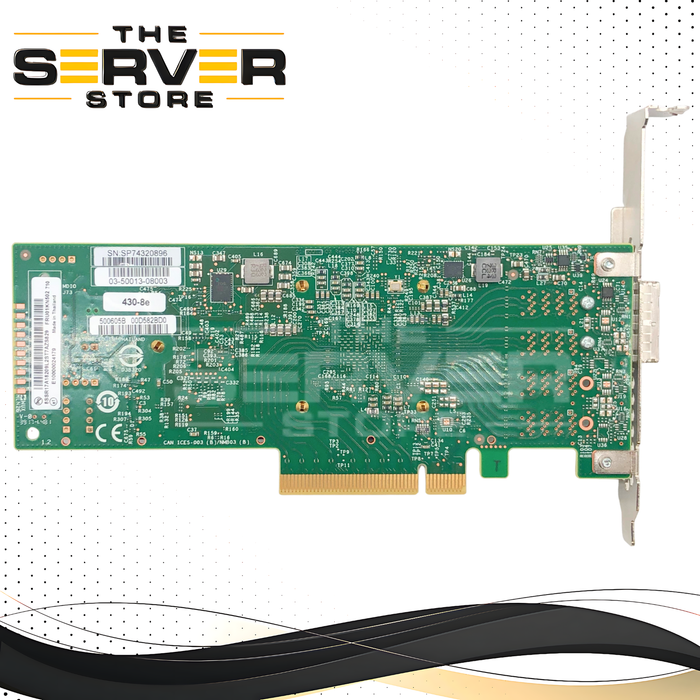

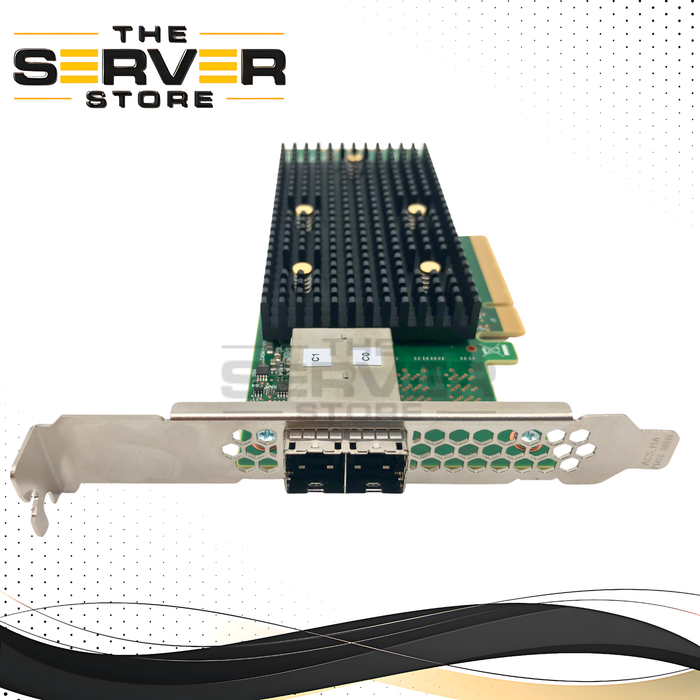

Lenovo Avago 430-8E 12Gb/s SATA/SAS PCI Express x8 Host Bus Adapter (HBA) with 2x SFF-8644 External Ports and High-Profile Bracket. P/N: 01KN502.
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 01KN502, 03-50013-08003 |
| Manufacturer | Broadcom |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Host Bus Adapter (HBA) |
| Model | 430-8E |
| Form Factor | PCIe Card (High Profile) |
| Interface | PCIe Gen3 x8 |
| External Interfaces | 2x SFF-8644 |
| Storage Capacity | |
| Transfer Rate | 12 Gb/s SAS, 6 Gb/s SATA (per lane) |
| Network Management Type | |
| Processor Type | Avago/Broadcom HBA Controller |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | SAS/SATA Drive (External Enclosure) |
| Number of Ports | 2 |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
This is a genuine Lenovo Avago 430-8E 12Gb/s SATA/SAS PCI Express x8 Host Bus Adapter (HBA) (Lenovo P/N: 01KN502; Avago/Broadcom P/N: 03-50013-08003, 50013). Designed to provide high-performance, direct connectivity to external storage, this HBA features two external SFF-8644 ports, each supporting up to four SAS or SATA drives at a blistering 12Gb/s per lane. Its PCIe Gen3 x8 interface ensures ample bandwidth for demanding I/O operations, making it an ideal solution for connecting external SAS/SATA JBODs (Just a Bunch Of Disks), tape drives, or other storage devices to compatible Lenovo servers and workstations. As an HBA, it operates in a non-RAID, "pass-through" mode, allowing the operating system or host software to manage the drives directly, which is crucial for software-defined storage (SDS) and virtualization environments.
Key Features
-
Genuine Lenovo / Avago Part: Ensures full compatibility, validated performance, and seamless integration with Lenovo ThinkServer and ThinkSystem servers, as well as other compatible systems.
-
12Gb/s SAS3/SATA3 Support: Provides the latest generation of SAS and SATA connectivity for high-speed data transfer to external storage.
- 8 External Lanes (2x SFF-8644): Features two SFF-8644 mini-SAS HD connectors, each supporting four 12Gb/s lanes, allowing direct connection to up to 8 SAS/SATA drives in external enclosures.
- PCIe Gen3 x8 Interface: Offers a high-bandwidth host interface to ensure the HBA doesn't bottleneck I/O performance for connected storage.
-
Non-RAID "Pass-Through" Mode: Operates as a Host Bus Adapter, presenting connected drives directly to the operating system for full software control, ideal for ZFS, Ceph, VMware vSAN, and other software-defined storage solutions.
-
High-Profile Bracket: Designed for installation in standard full-height server and workstation chassis.
-
Broadcom/Avago Reliability: Built on proven Broadcom (formerly LSI/Avago) technology, known for its robust performance and stability in enterprise environments.
-
Wide Device Support: Compatible with a broad range of external SAS/SATA HDDs, SSDs, and tape drives.
