(LOT OF 10) Dell PERC HBA330 Mini Mono 12Gbps SAS SATA HBA Host Bus Adapter 0P2R3R P2R3R

(LOT OF 10) Dell PERC HBA330 Mini Mono 12Gbps SAS SATA HBA Host Bus Adapter 0P2R3R P2R3R

$0.00 - $0.00
$0.00
$170.99
$170.99 - $170.99
$170.99
SKU P2R3R
Availability:
Only 10 left!

In-store Pickup

Local Pickup in Dallas, TX Available

Shopify Product Page with Tabs
  • Specifications
  • Description
Manufacturer Part Number (LOT OF 10) 0P2R3R / P2R3R
Manufacturer Dell
Condition Refurbished
Standard Warranty 90 Day Replacement Warranty
Item Category Raid Controller Cards
Model
Form Factor
Interface
External Interfaces
Storage Capacity
Transfer Rate
Network Management Type
Processor Type
Clock Speed
Number of Cores
Cache
Socket Type
TDP
Compatible Port
Number of Ports
CPU Type
HDD Form Factor
HDD Interface
HDD Rotation Speed
HDD Storage Capacity
HDD Transfer Rate
Memory Bus Speed
Memory Capacity Per Module
Memory Features
Memory Form Factor
Memory Kit Brand
Memory Kit Breakdown
Memory Kit Speed
Memory Kit Technology
Memory Kit Total Capacity
Memory Kit Voltage
Memory Number of Modules
Memory Number of Pins
Memory Total Capacity
Memory Type
Network Ports
Processor Model
SSD Capacity
SSD Interface
SSD Storage Capacity
SSD Transfer Rate
SSD Type

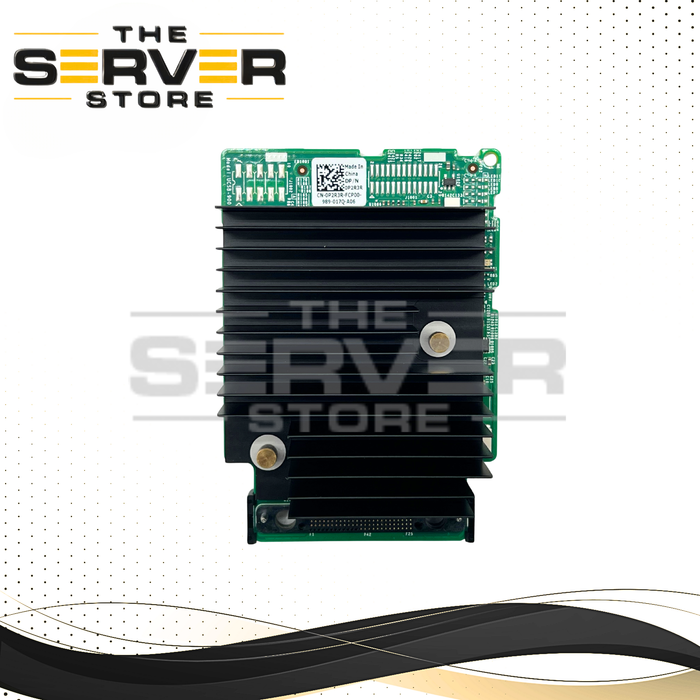

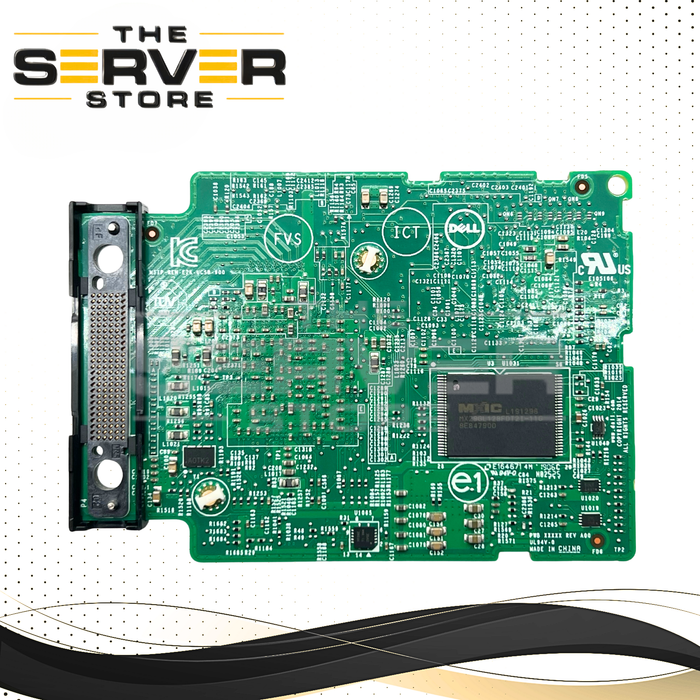

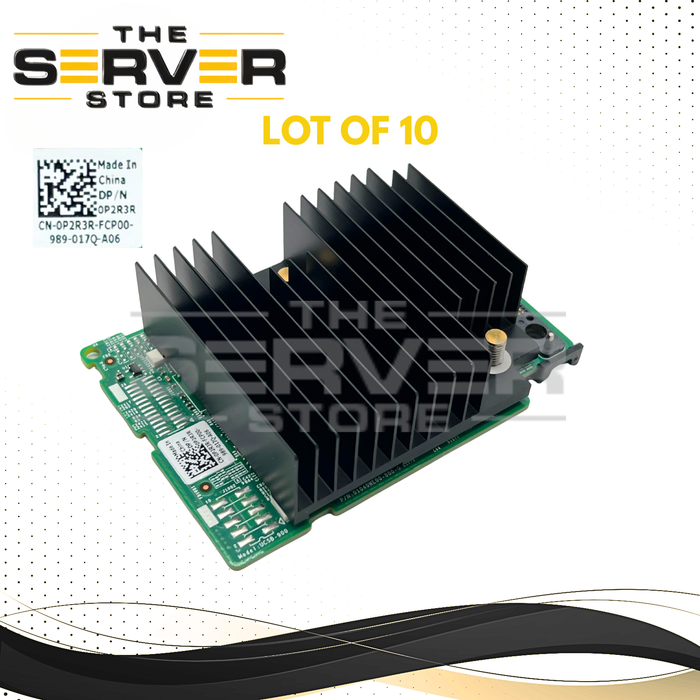

Dell PERC HBA330 Mini Mono 12Gbps SAS/SATA Host Bus Adapter (P2R3R / 0P2R3R)

The Dell PERC HBA330 Mini Mono (Part Numbers: P2R3R, 0P2R3R) is a 12Gbps SAS/SATA host bus adapter engineered specifically for Dell PowerEdge rack servers. Unlike traditional RAID controllers, this model is primarily deployed as a non-RAID (pass-through / IT mode) controller, providing direct access to up to eight internal drives. It is an excellent choice for software-defined storage (SDS), virtualization platforms, and environments where the operating system or hypervisor manages RAID.

Technical Specifications

  • Controller Chipset: LSI SAS3008

  • Interface: PCI Express 3.0 x8

  • Form Factor: Mini Monolithic (Mini Mono – proprietary Dell slot)

  • Data Transfer Rates:

    • Up to 12Gb/s SAS per port

    • Up to 6Gb/s SATA per port

  • Internal Ports: 8 internal ports via two x4 mini-SAS connectors

  • Device Support: Up to 8 HDDs or SSDs

  • RAID Support: Commonly configured as Non-RAID (IT mode); some firmware variants may support RAID 0, 1, 5, 10

  • Cache Memory: No onboard cache

  • Advanced Features:

    • 4KN drive support

    • Physical Disk Power Management (Dimmer Switch technology)

Compatible Dell PowerEdge Servers

13th Generation

  • PowerEdge R430

  • PowerEdge R530

  • PowerEdge R630

  • PowerEdge R730

  • PowerEdge R730xd

  • PowerEdge R830

  • PowerEdge R940

14th Generation

  • PowerEdge R640

  • PowerEdge R740

  • PowerEdge R740xd

  • PowerEdge R7415

  • PowerEdge R6415

15th Generation

  • PowerEdge R6515

  • PowerEdge R7515

The HBA330 Mini Mono is ideal for environments requiring reliable 12Gbps SAS connectivity without hardware RAID dependency, delivering enterprise-grade performance and compatibility across multiple Dell PowerEdge generations.
