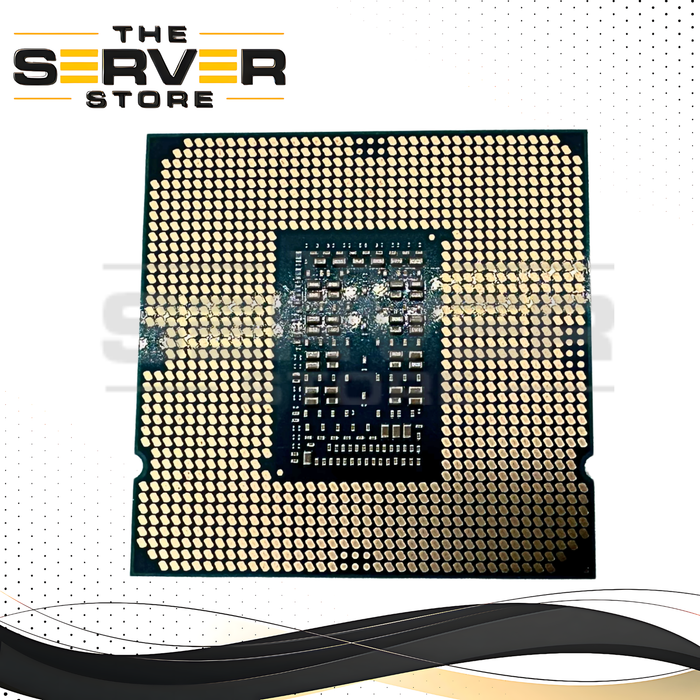

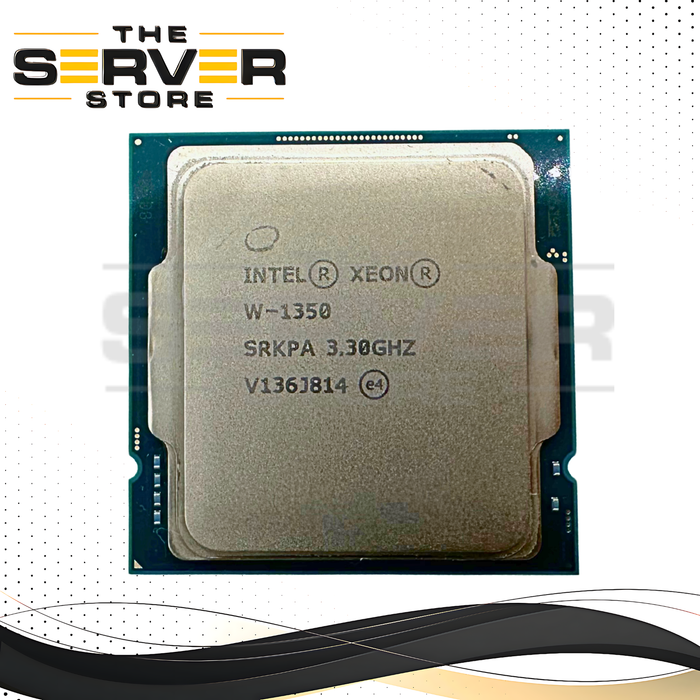

Intel Xeon W-1350 3.30GHz 6 Core 12MB FCLGA1200 CPU CM8070804497911 SRKPA
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | Intel |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Processors |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | 6 |
| Cache | 12MB |
| Socket Type | FC-LGA1200 |
| TDP | 80W |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Intel Xeon W-1350 3.30GHz 6-Core Workstation Processor (CM8070804497911 / SRKPA)
Built for professional workstations and business-critical computing environments, the Intel Xeon W-1350 delivers the performance, reliability, and advanced technologies needed for demanding workloads. Based on Intel's Rocket Lake architecture, this workstation-class processor combines high clock speeds, ECC memory support, PCIe 4.0 connectivity, and integrated professional graphics to power everything from engineering applications to virtualization and content creation.
With 6 cores, 12 threads, a 3.30GHz base frequency, and Turbo Boost speeds reaching 5.00GHz, the Xeon W-1350 provides outstanding responsiveness for professional software, multi-threaded workloads, and enterprise productivity applications.
Key Features
- Intel Xeon W-1350 Workstation Processor
- 6 Cores / 12 Threads with Intel Hyper-Threading Technology
- 3.30GHz Base Clock Speed
- Up to 5.00GHz Turbo Boost Max Technology 3.0
- 12MB Intel Smart Cache
- 80W Thermal Design Power (TDP)
- ECC Memory Support for enhanced data integrity
- PCIe 4.0 Support
- Intel UHD Graphics P750 Integrated Graphics
- Designed for professional workstation deployments
Processor Specifications
- Processor Family: Intel Xeon W-1300 Series
- Model: Xeon W-1350
- Ordering Code: CM8070804497911
- S-Spec: SRKPA
- Architecture: Rocket Lake
- Manufacturing Process: 14nm
- Cores: 6
- Threads: 12
- Base Frequency: 3.30GHz
- Maximum Turbo Frequency: 5.00GHz
- Cache: 12MB Intel Smart Cache
- Bus Speed: 8 GT/s
- TDP: 80W
Memory Support
- Maximum Memory Capacity: 128GB
- Memory Type: DDR4-3200
- Memory Channels: Dual-Channel
- Memory Bandwidth: Up to 51.2 GB/s
- ECC Memory Compatibility: Yes
- Optimized for mission-critical workstation workloads
Integrated Professional Graphics
- Intel UHD Graphics P750
- Graphics Base Frequency: 350 MHz
- Maximum Dynamic Frequency: 1.30 GHz
- 4K and 5K Display Support
- Supports up to 4 Independent Displays
- Maximum DisplayPort Resolution: 5120 x 3200 @ 60Hz
- Maximum HDMI Resolution: 4096 x 2160 @ 60Hz
Expansion & Platform Features
- Socket: FCLGA1200
- Compatible Chipset: Intel W580
- PCI Express Revision: PCIe 4.0
- 20 PCIe Lanes Direct from CPU
- Supports high-speed NVMe storage and professional GPUs
- Single-Socket (1S) Workstation Architecture
Enterprise Security & Virtualization
- Intel vPro® Technology
- Intel Deep Learning Boost (DL Boost)
- Intel AES-NI Encryption Acceleration
- Intel Secure Key
- Intel Boot Guard
- Intel Trusted Execution Technology (TXT)
- Intel VT-x Virtualization
- Intel VT-d Directed I/O Virtualization
- Extended Page Tables (EPT) Support
Ideal Applications
- Professional CAD & Engineering Workstations
- 3D Design and Modeling
- Content Creation & Video Editing
- Business-Critical Applications
- Virtualization Environments
- Scientific Computing
- Architecture & Design Workflows
- Enterprise Productivity Platforms
Compatibility Notice
Important: Although the Xeon W-1350 uses the FCLGA1200 socket, it requires a compatible Intel W580 workstation chipset. It is not compatible with standard consumer Intel 400-series or 500-series desktop motherboards, including H410, B460, Z490, B560, and Z590 platforms.
Why Choose the Intel Xeon W-1350?
The Intel Xeon W-1350 combines enterprise reliability, ECC memory support, cutting-edge PCIe 4.0 connectivity, and turbo speeds up to 5.00GHz in a professional workstation platform. Whether you're building a workstation for design, engineering, virtualization, or content creation, this processor delivers the performance and stability needed for demanding professional workloads.
