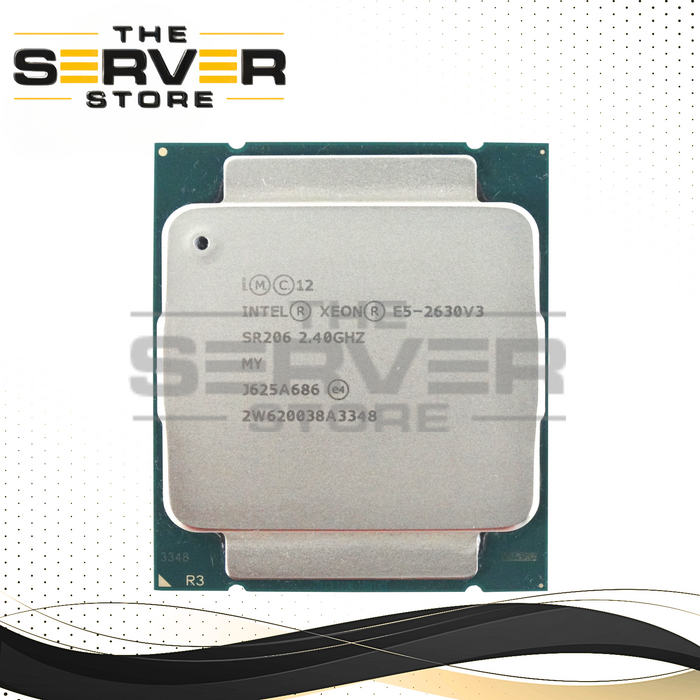

Intel Xeon E5-2630v3 2.40GHz 8C 20MB 85W FCLGA2011-3 CPU CM8064401831000 SR206

Intel Xeon E5-2630 v3 Processor

Intel Xeon E5-2630v3 2.40GHz 8-Core 20MB 85W FCLGA2011-3 CPU SR206

The Intel Xeon E5-2630 v3 is a reliable enterprise-class server processor built on Intel’s 22nm Haswell-EP architecture, designed for data center workloads such as virtualization, database processing, cloud computing, and enterprise applications. With 8 cores and 16 threads, this processor delivers strong multi-threaded performance while maintaining efficient power consumption with an 85W TDP.

Operating at a base frequency of 2.40 GHz and supporting Intel Turbo Boost Technology 2.0 up to 3.20 GHz, the processor provides scalable performance for demanding workloads. The integrated 20MB Intel Smart Cache improves data access efficiency, making it well-suited for multi-user and high-throughput server environments.

Designed for the FCLGA2011-3 socket (Socket R3), the Xeon E5-2630 v3 supports dual-socket server configurations, enabling increased compute capacity in enterprise servers and workstation platforms.

Key Features

• 8-Core / 16-Thread enterprise server processor

• Base clock: 2.40 GHz

• Max Turbo Frequency: 3.20 GHz

• 20MB Intel Smart Cache

• Built on 22nm Haswell-EP architecture

• Supports dual-socket server configurations

• Quad-channel DDR4 memory controller

• Intel Hyper-Threading and Turbo Boost technologies

• Optimized for virtualization, databases, and enterprise workloads

Core Technical Specifications

• Processor Model: Intel Xeon E5-2630 v3

• Processor S-Spec: SR206

• Lithography: 22 nm

• Cores / Threads: 8 Cores / 16 Threads

• Base Frequency: 2.40 GHz

• Max Turbo Frequency: 3.20 GHz

• Cache: 20MB Intel Smart Cache

• Thermal Design Power (TDP): 85W

• Socket: FCLGA2011-3 (Socket R3)

• Max CPU Configuration: 2 processors

Memory Support

The Xeon E5-2630 v3 supports high-capacity DDR4 memory for scalable server performance.

• Maximum Memory Capacity: Up to 768GB

• Memory Type: DDR4 ECC Registered / Load-Reduced or standard DDR4

• Supported Speeds: 1600 MHz, 1866 MHz (faster modules may downclock)

• Memory Channels: 4-channel memory architecture

• Maximum Memory Bandwidth: Up to 59 GB/s

Expansion & Connectivity

• PCI Express Revision: PCIe 3.0

• PCIe Lanes: Up to 40 lanes per processor

• Interconnect: 8 GT/s QuickPath Interconnect (QPI) with dual links

These features allow extensive connectivity for GPUs, high-speed storage controllers, and networking adapters.

Advanced Intel Technologies

• Intel Turbo Boost Technology 2.0

• Intel Hyper-Threading Technology

• Intel Virtualization Technology (VT-x) with Extended Page Tables (EPT)

• Intel VT-d (Virtualization for Directed I/O)

• Intel AES-NI encryption acceleration

• Intel Secure Key and OS Guard

• Intel Trusted Execution Technology

These technologies enhance security, virtualization performance, and overall system efficiency.

Compatible Hardware & Equipment

The Intel Xeon E5-2630 v3 is compatible with LGA 2011-3 motherboards using Intel X99 or Intel C612 chipsets, making it suitable for both workstation and enterprise server platforms.

Compatible Motherboards

Common compatible motherboard platforms include:

• X99 chipset workstation motherboards (ATX or Micro-ATX)

• Server motherboards using the Intel C612 chipset

• Dual-socket server boards supporting Xeon E5-2600 v3 processors

Examples include workstation boards such as the Machinist RS9 X99, server boards like the Supermicro X10DRI, and workstation motherboards such as the ASRock X99M Extreme4. System boards used in servers such as the Dell PowerEdge R630 are also designed for this processor family.

Compatible Memory (RAM)

The processor supports DDR4 memory with ECC or non-ECC configurations depending on the motherboard.

• Memory Type: DDR4 ECC RDIMM, LRDIMM, or standard DDR4 UDIMM

• Maximum Supported Speed: Up to 1866 MHz officially

• Faster DDR4 modules (2133 MHz or higher) may operate at reduced speed.

Common compatible modules include enterprise DDR4 ECC memory such as SK Hynix, Crucial, and A-Tech server RAM, including OEM modules like Hynix HMA41GR7AFR4N-TF often found in enterprise systems.

Compatible CPU Coolers

Since the processor has an 85W TDP, it requires a cooler with LGA 2011-3 mounting support.

Typical compatible cooling solutions include workstation and server coolers such as:

• Noctua NH-U12DX i4

• Cooler Master Hyper 212 series with LGA2011 mounting

• Coolink Corator DS LGA2011 tower cooler

These cooling systems are designed to handle Xeon workstation and server workloads efficiently.

Compatible Servers & Workstations

The Xeon E5-2630 v3 is widely deployed in enterprise servers and professional workstations including:

• Dell PowerEdge: R430, R530, R630, R730, T630

• HP ProLiant: DL160 Gen9, DL360 Gen9, DL380 Gen9, ML350 Gen9

• Dell Precision Workstations: T5810, T7810

These systems utilize the Xeon E5-2600 v3 processor family to deliver scalable compute power for virtualization, storage infrastructure, and enterprise applications.

Other Related Part Numbers

E5-2630V3, E5-2630 V3, UCS-CPU-E52630D, UCS-CPU-E52630DC=, UCS-CPU-E52630D=, 00KA068, 762446-001, 00FK643, CM8064401831000, BX80644E52630V3, 726994-B21, 790094-001, 755384-B21

The Intel Xeon E5-2630 v3 SR206 processor is a dependable choice for enterprise servers, virtualization clusters, and high-performance workstations, delivering balanced compute power, memory scalability, and efficient energy usage for modern data center workloads.
