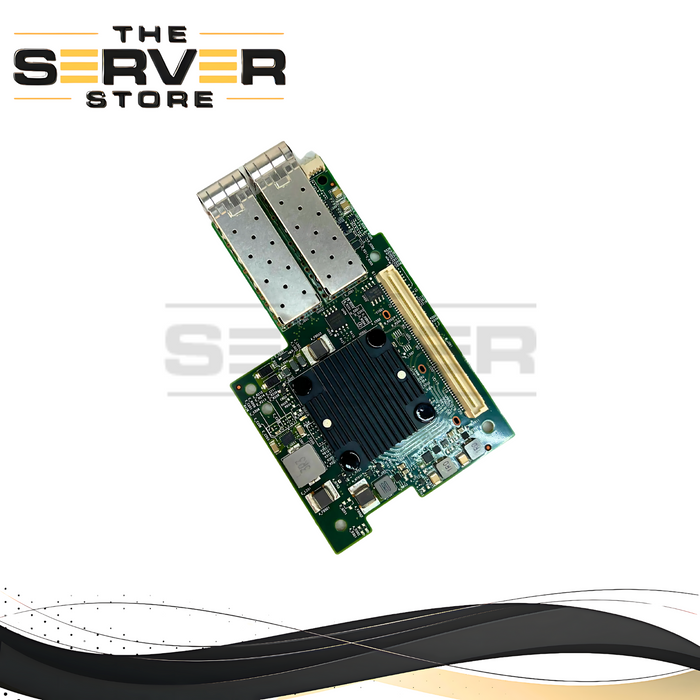

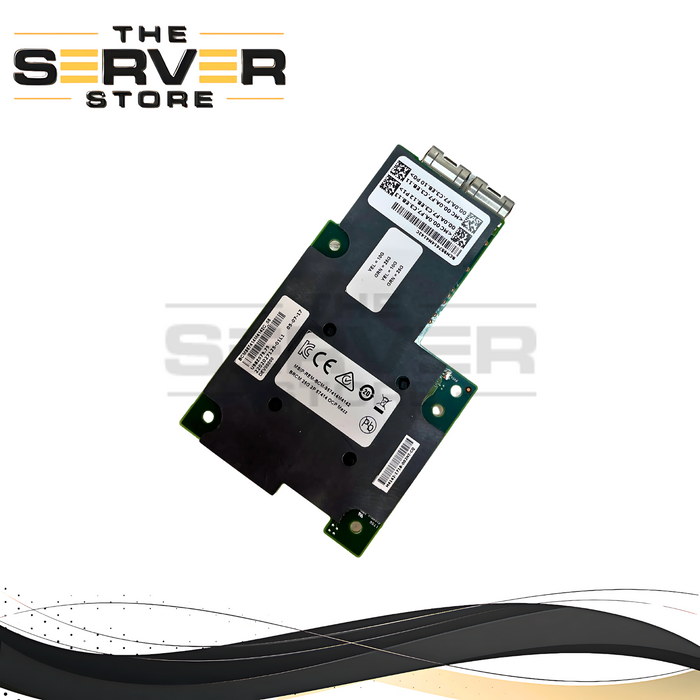

Broadcom 57414 Dual Port 25GB/10GB SFP Ethernet OCP Mezzanine Card NIC BCM957414M4142C
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | BCM957414M4142C |
| Manufacturer | BROADCOM |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Network Interface Cards (NICs) |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | 2 |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | SFP |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
The Broadcom BCM957414M4142C Is A Dual-port 25 Gb/s Pci Express 3.0 X8 Mezzanine Card for Open Compute Platform Systems. (OCP) Mezzanine Card 2.0 Design Specification With An Sfp28 Network As A Type 1 Adapter, With The Board Outline Adhering To A Form Factor Called Out In V0.5 Of The Specification. The Adapter Supports Sfp28/sfp+ Optical Modules And Copper Direct-attach Cables. The Card Uses The BROADCOM Bcm57414 25gbe Mac Controller With An Integrated Dual-channel 25 Gbe Sfi Transceiver.
Features:
• Dual-port Pluggable Media Interface, Which May Be Equipped With 25g Sfp28, 10g Sfp+ Optical Transceiver Or With A Copper Direct-attach Cable.
• Fully Compliant With The Sff-8402 Standard.
• X8 Pci Express 3.0 Compliant.
• Sr-iov With Up To 128 Virtual Functions (vfs).
• Function-level Reset (flr) Support.
• Truflow Flow Processing Engine.
• Virtual Network Termination-vxlan, Nvgre, Geneve, Gre Encap/decap.
• Vswitch Acceleration.
• Tunnel-aware Stateless Offloads.
• Dcb Support - Pfc, Ets, Qcn, Dcbx.
• Rdma Over Converged Ethernet (roce)
• Network Controller Sideband Interface (ncsi).
• Smbus 2.0.
• Mctp Over Smbus.
• Pcie-based Uart And Kcs.
• Jumbo Frames Up To 9 Kb.
• Advanced Congestion Avoidance.
• Multiqueue, Netqueue, And Vmq.
• Ipv4 And Ipv6 Offloads.
• Tcp, Udp, And Ip Checksum Offloads.
• Large Send Offload (lso).
• Large Receive Offload (lro).
• Tcp Segmentation Offload (tso)
• Receive-side Scaling (rss).
• Transmit-side Scaling (tss).
• Vlan Insertion/removal.
• Interrupt Coalescing.
• Network Boot-pxe, Uefi.
• Iscsi Boot.
• Wake-on-lan (wol).
• Msi And Msi.x.
• Conforms To The Ocp Mezzanine Card 2.0 Design Specification Type 1 Vertical Stack.
