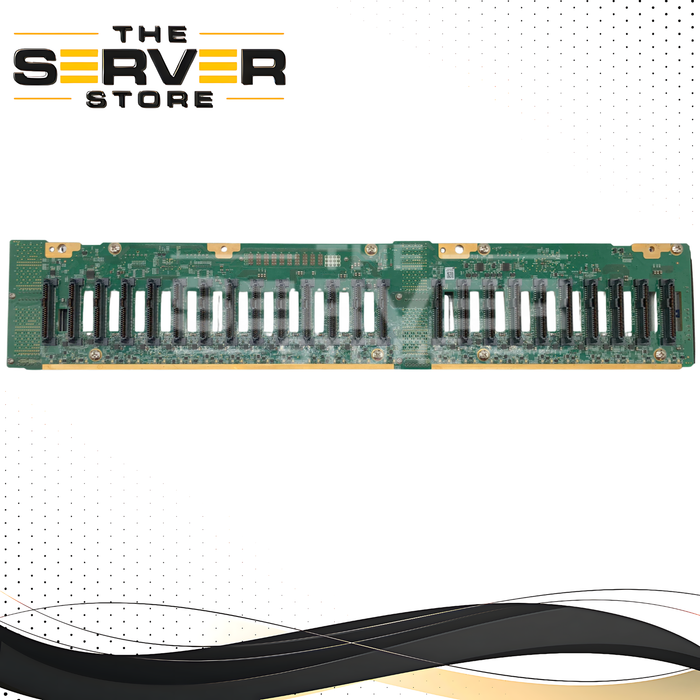

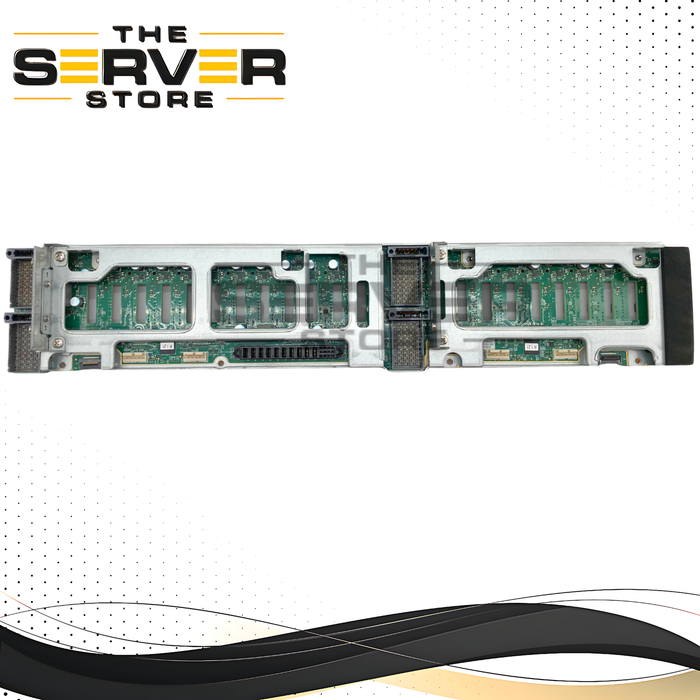

SuperMicro Nutanix 2U 4-Node 24-Port 2.5" NVMe Backplane. P/N: BPN-SAS3-217BHQ-N4-NI22.
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | BPN-SAS3-217BHQ-N4-NI22 |
| Manufacturer | SuperMicro |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Server Backplane |
| Model | BPN-SAS3-217BHQ-N4-NI22 |
| Form Factor | Proprietary (2U 4-Node Chassis) |
| Interface | NVMe, SAS 3.0 (12Gbps), SATA (6Gbps) |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | 12 Gbps (SAS Interface) |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | 2.5" NVMe / SAS / SATA Drives |
| Number of Ports | 24 (Drive Ports) |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
This is a genuine SuperMicro Nutanix 2U 4-Node 24-Port 2.5" NVMe Backplane (P/N: BPN-SAS3-217BHQ-N4-NI22). Specifically designed for Supermicro's 2U 4-node server chassis used in Nutanix hyper-converged infrastructure (HCI) solutions, this advanced backplane provides high-speed, direct connectivity for up to 24x 2.5-inch drives. It offers comprehensive NVMe support across all 24 ports, enabling revolutionary storage performance for demanding applications. Leveraging the SAS 3.0 (12Gb/s) standard, it also ensures compatibility with SAS and SATA drives, providing immense flexibility for storage configuration. This backplane is a critical component for building high-performance, dense, and scalable HCI deployments, maximizing flash storage utilization and I/O throughput for virtual machines, databases, and real-time analytics. Its robust design ensures reliable hot-swap functionality and seamless integration within Supermicro's 4-node chassis.
Key Features
-
Genuine SuperMicro Component: Ensures perfect compatibility and validated performance with Supermicro's 2U 4-node server chassis, especially within Nutanix deployments.
-
24x 2.5-inch Drive Bays: Supports up to 24 hot-swappable 2.5-inch drives, enabling high-density storage solutions.
-
Full NVMe Support: All 24 ports are capable of supporting NVMe (Non-Volatile Memory Express) drives for ultra-fast storage performance.
-
SAS 3.0 (12Gb/s) Interface: Provides high-speed SAS connectivity and is backward compatible with 6Gb/s SATA drives.
-
Designed for 2U 4-Node Chassis: Optimized for specific Supermicro multi-node server platforms, enhancing density and efficiency.
-
Optimized for Nutanix HCI: Ideal for Nutanix environments where high-performance, low-latency, and scalable storage is paramount.
-
Hot-Swap Functionality: Enables easy installation and replacement of drives without powering down the server nodes.
-
Enhanced Data Throughput: Maximizes I/O performance for demanding applications like virtualization, databases, and big data analytics.
