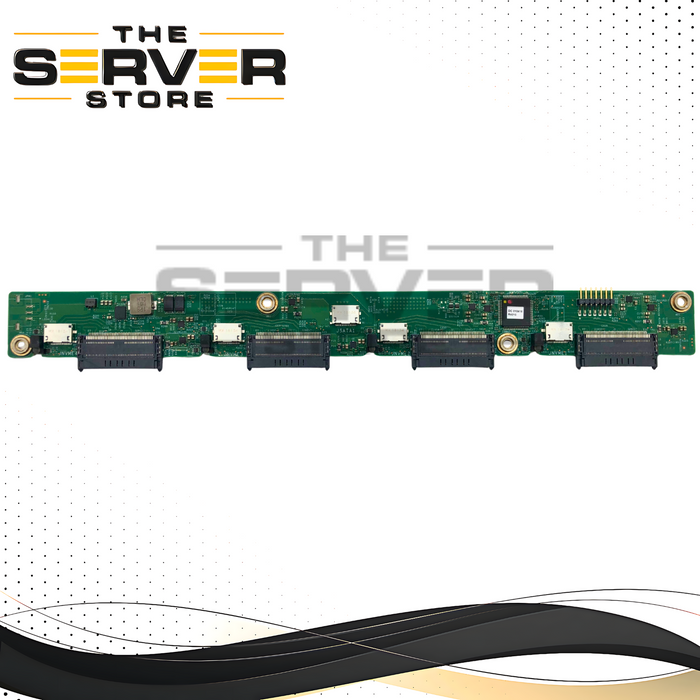

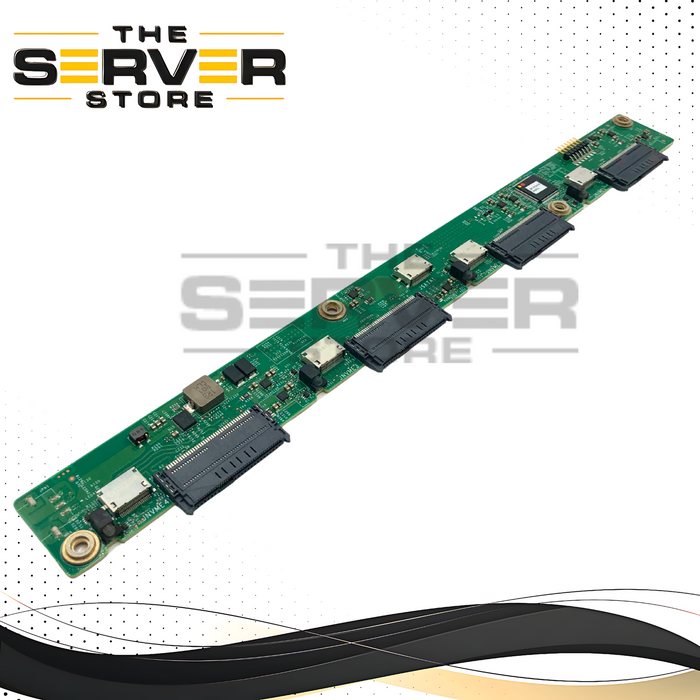

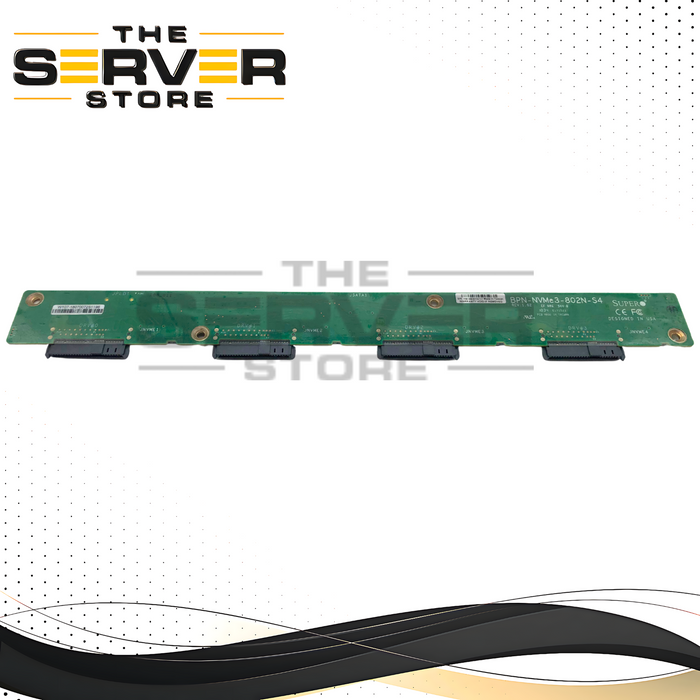

Supermicro 4-Bay 2.5" 7mm SAS/NVMe U.2 Direct-Attach Backplane BPN-NVMe3-802N-S4
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | BPN-NVME3-802N-S4 |
| Manufacturer | Supermicro |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Backplane |
| Model | 4-Bay NVMe/SAS Backplane |
| Form Factor | 1U |
| Interface | SAS / SATA / NVMe |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | 12 Gb/s |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | 4 |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
This is a genuine Supermicro 4-Bay 2.5" Hybrid Backplane (P/N: BPN-NVME3-802N-S4). This direct-attach backplane is designed for high-performance storage solutions in specific Supermicro 1U server chassis. It provides flexible connectivity for a mix of U.2 NVMe and SAS/SATA drives, but is optimized for all-flash NVMe configurations. A critical detail for this backplane is its support for drives with a maximum height of 7mm.
Key Features
- Hybrid Drive Support: Features four 2.5" bays that support high-speed U.2 NVMe SSDs as well as traditional 12Gb/s SAS3 and 6Gb/s SATA drives.
-
Direct-Attach Performance: This is a direct-attach backplane, ensuring a dedicated PCIe data path to each NVMe drive for the lowest possible latency and maximum performance.
-
7mm Drive Height: Specifically designed for slim, 7mm height 2.5-inch drives, which is a critical compatibility requirement.
-
Hot-Swap Capability: Fully supports hot-swap functionality, allowing for drive installation and replacement without server downtime.
-
Genuine Supermicro Part: Ensures perfect fit and function within compatible Supermicro server systems.
