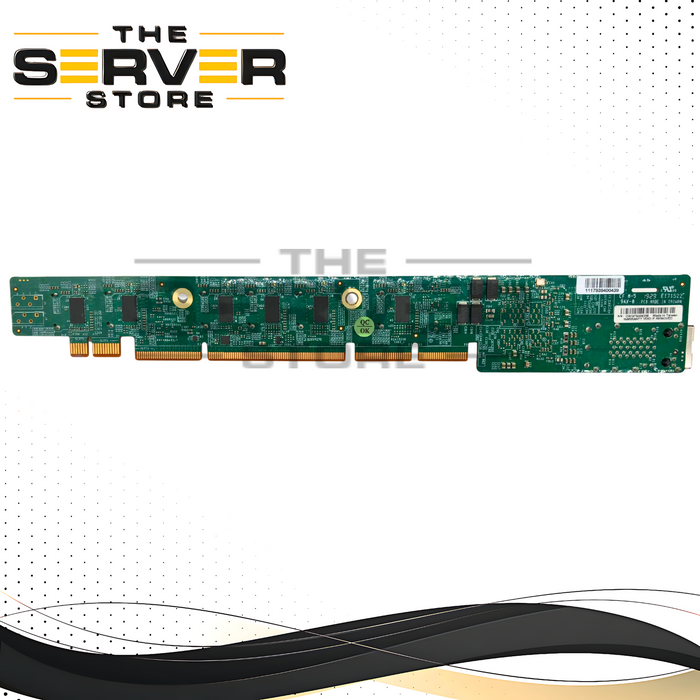

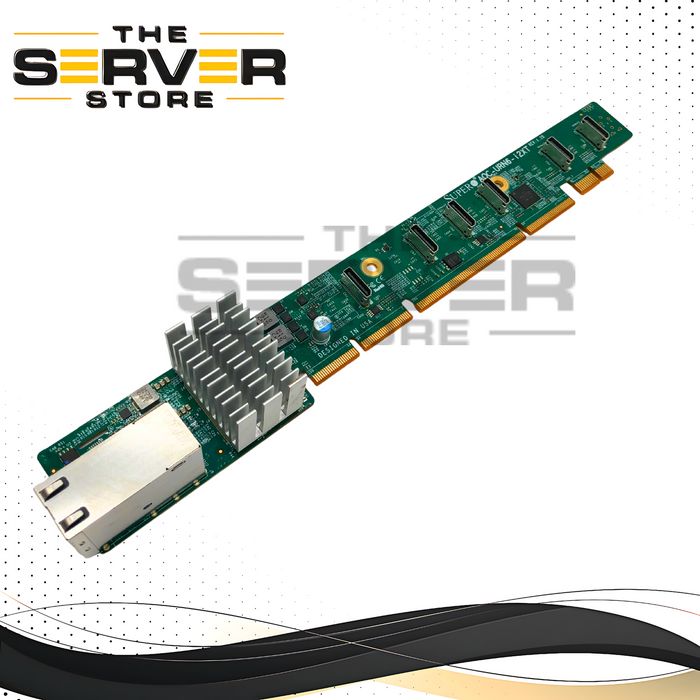

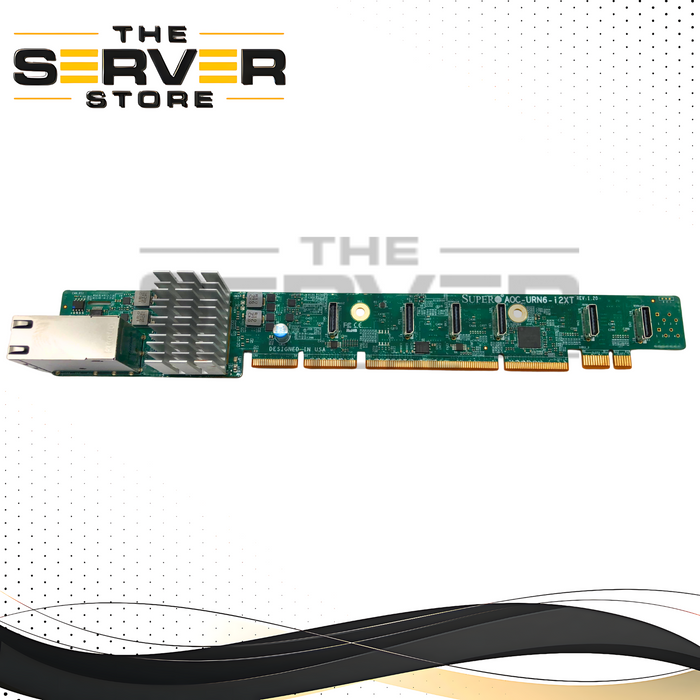

Supermicro 1U Ultra Riser w/ 2-Port 10G, 6x NVMe, PCIe x16 AOC-URN6-i2XT
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | AOC-URN6-i2XT |
| Manufacturer | Supermicro |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Server Riser Card |
| Model | Ultra Riser Card |
| Form Factor | 1U |
| Interface | PCIe |
| External Interfaces | 2x RJ-45 Ethernet Ports |
| Storage Capacity | |
| Transfer Rate | 10 Gbps |
| Network Management Type | |
| Processor Type | Intel X540 |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | 1x PCIe 3.0 x16 Slot, 6x OCuLink NVMe Ports |
| Number of Ports | 9 |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
This is a genuine Supermicro 1U Ultra Riser Card (P/N: AOC-URN6-i2XT). This advanced, highly integrated module is designed for Supermicro's 1U Ultra server series, providing an all-in-one solution for networking, high-speed storage, and general PCIe expansion. It consolidates multiple I/O functions onto a single board, freeing up space and offering incredible flexibility for building a dense, high-performance server.
Key Features ⚙️
-
All-in-One I/O Hub: This riser card uniquely combines three essential functions into a single component:
-
Onboard Dual-Port 10GBASE-T Networking
-
Six direct-connect NVMe Ports
-
One PCIe 3.0 x16 Expansion Slot
-
-

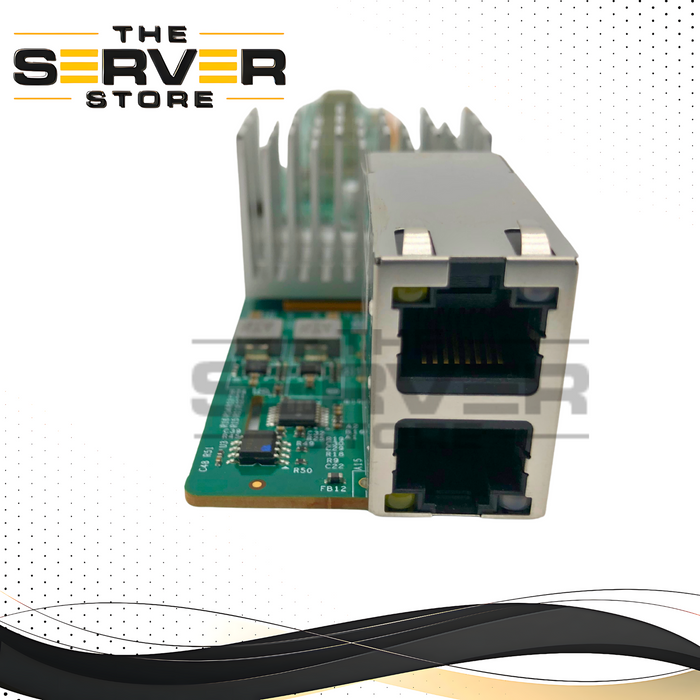

Integrated 10GbE Networking: Features an onboard Intel® X540 controller that provides two 10GBASE-T RJ-45 LAN ports, eliminating the need for a separate network adapter.
-
High-Speed NVMe Storage: Includes six OCuLink connectors for directly connecting up to six high-performance U.2 NVMe SSDs.
-
PCIe x16 Expansion: Provides a standard PCIe 3.0 x16 slot, allowing for the installation of a GPU, a high-end RAID controller, or another full-size expansion card.
